Mounting and connecting the HMI device
3.2 Mounting the device
Comfort Panels
42 Operating Instructions, 07/2017, A5E36770603-AB
3.2
Mounting the device

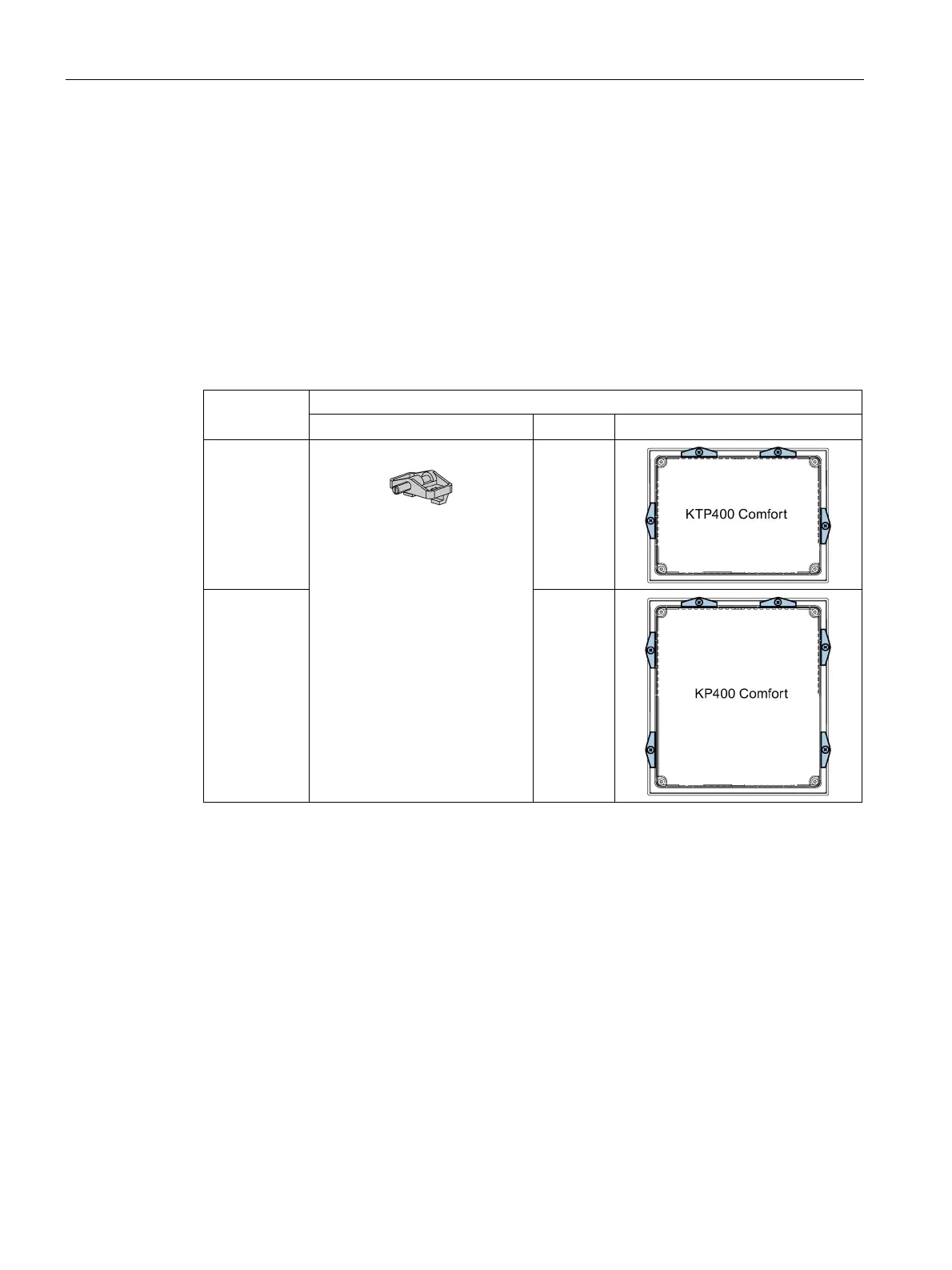

Positions of the mounting clips
To achieve the degree of protection for the HMI device, the positions for the mounting clips
shown below must be adhered to.
The positions of the mounting clips are marked by stamps on the cutouts. Insert mounting
clips in all stamped cutouts.
The following table shows the type, number and position of the mounting clips needed for the
respective HMI devices.
Comfort
HMI device
Mounting clips
Type
Quantity
Position on the HMI device
KTP400 Plastic mounting clips 4
KP400 6

Siemens SIMATIC HMI TP1200 Comfort Specifications

General

Display Size	12.1 inches
Resolution	1280 x 800 pixels
Power Supply	24 V DC
Display Type	TFT LCD
Brightness	400 cd/m²
Operating Temperature	0 to 50 °C
Relative Humidity	10% to 90% (non-condensing)
Interfaces	USB, RS422/RS485
Protection Class	IP65 (front)
Touch Technology	Projected capacitive touch (PCAP)
