Commissioning the device
4.3 Parameter assignment for Comfort Panel
Comfort Panels
134 Operating Instructions, 07/2017, A5E36770603-AB
4.3.11
Functions for service and commissioning
4.3.11.1
Saving to external storage medium – backup
You can use this function to back up the operating system, applications and data from the
flash memory of the HMI device to an external storage medium.
Use a SIMATIC HMI Memory card or an industry-compatible USB stick as the storage
medium.
Requirement
● The Control Panel is open.
● There is a storage medium with sufficient free capacity in the HMI device.
● Data that must not be overwritten has been saved.
Procedure

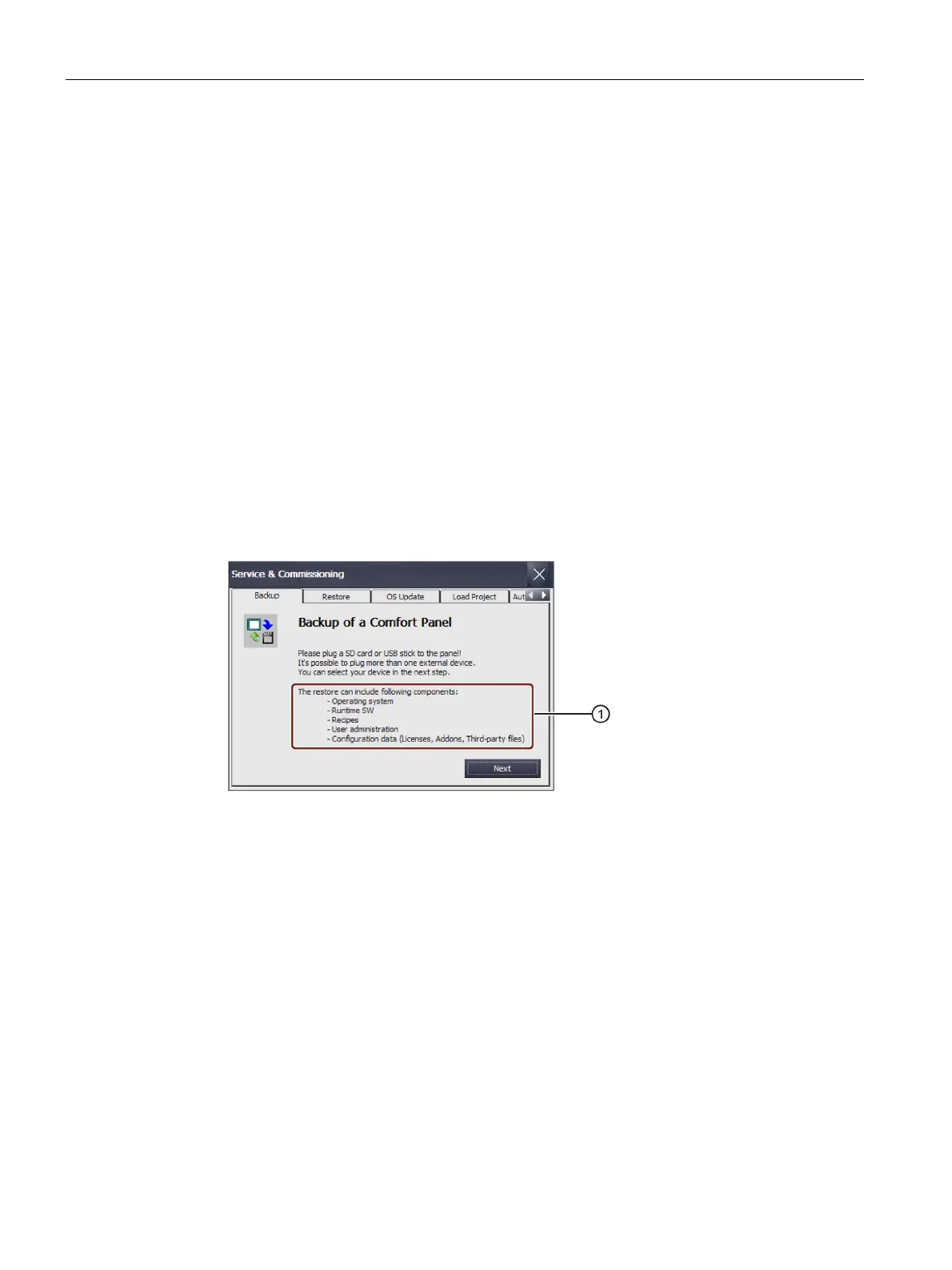

1. Open the "Service & Commissioning" dialog using the "Service & Commissioning" icon.
①
Data that can be backed up

Siemens SIMATIC HMI TP1200 Comfort Specifications

General

Display Size	12.1 inches
Resolution	1280 x 800 pixels
Power Supply	24 V DC
Display Type	TFT LCD
Brightness	400 cd/m²
Operating Temperature	0 to 50 °C
Relative Humidity	10% to 90% (non-condensing)
Interfaces	USB, RS422/RS485
Protection Class	IP65 (front)
Touch Technology	Projected capacitive touch (PCAP)
