Siemens SIMATIC HMI TP1200 Comfort User Manual

Commissioning the device
4.3 Parameter assignment for Comfort Panel
Comfort Panels
88 Operating Instructions, 07/2017, A5E36770603-AB
4.3.5.6
Calibrating the touch screen
Parallax may occur on the touch screen depending on the mounting position and
perspective. To prevent any resulting operating errors, you may need to calibrate the touch
screen.
Requirement
● A touch pen
● The Control Panel is open.
Procedure
1. Open the ""OP Properties"" dialog using the ""OP"" icon.
2. Change to the "Touch" tab.
3. Comfort V2 devices: Select the number of calibration points.
Press the "Recalibrate" button.

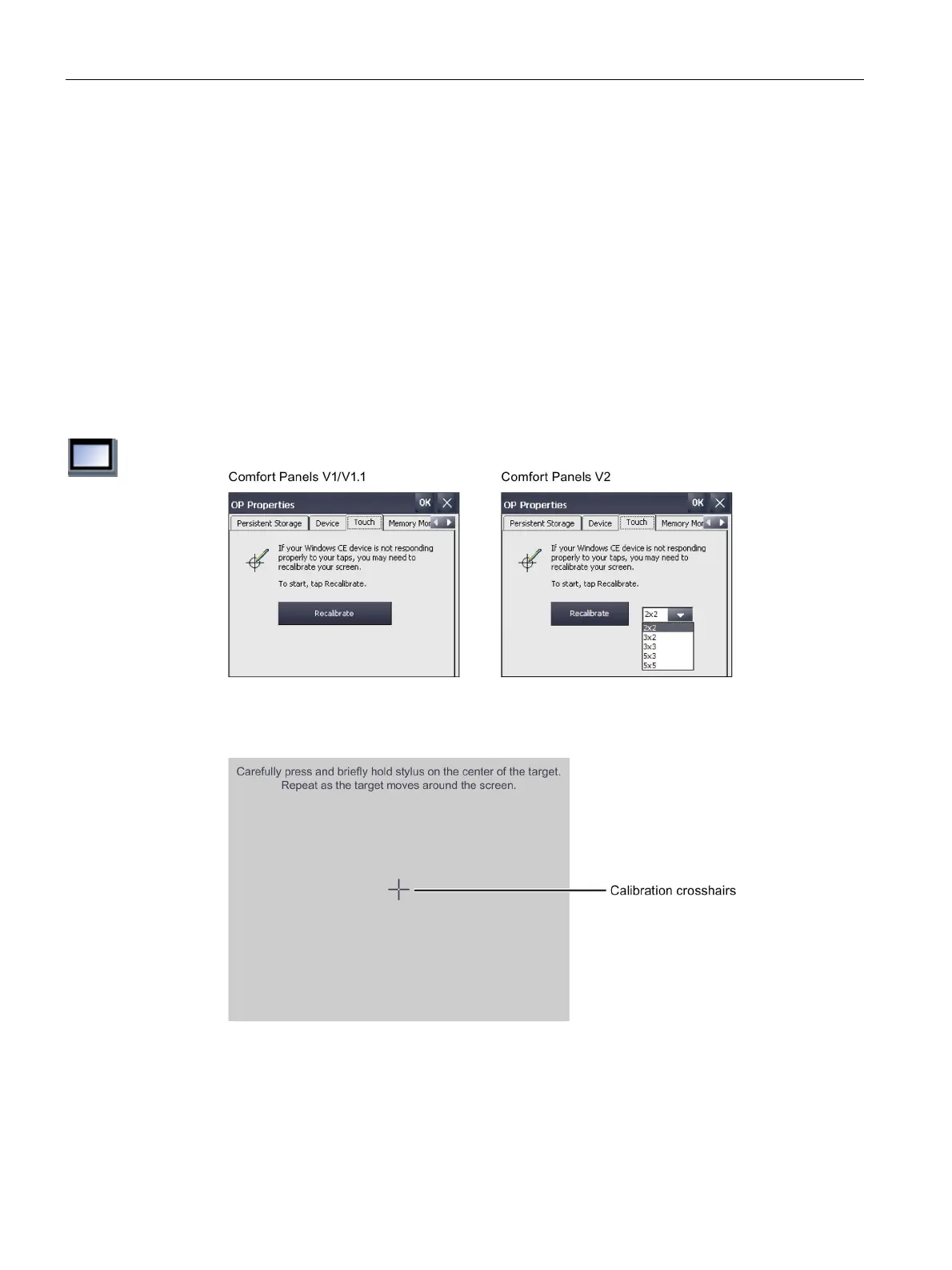

The following dialog is displayed:

Siemens SIMATIC HMI TP1200 Comfort Specifications

General

Display Size	12.1 inches
Resolution	1280 x 800 pixels
Power Supply	24 V DC
Display Type	TFT LCD
Brightness	400 cd/m²
Operating Temperature	0 to 50 °C
Relative Humidity	10% to 90% (non-condensing)
Interfaces	USB, RS422/RS485
Protection Class	IP65 (front)
Touch Technology	Projected capacitive touch (PCAP)
