Mounting and connecting the HMI device
3.3 Connecting the device
Comfort Panels
Operating Instructions, 07/2017, A5E36770603-AB
51
3.3.4
Connecting the configuration PC
Wiring diagram

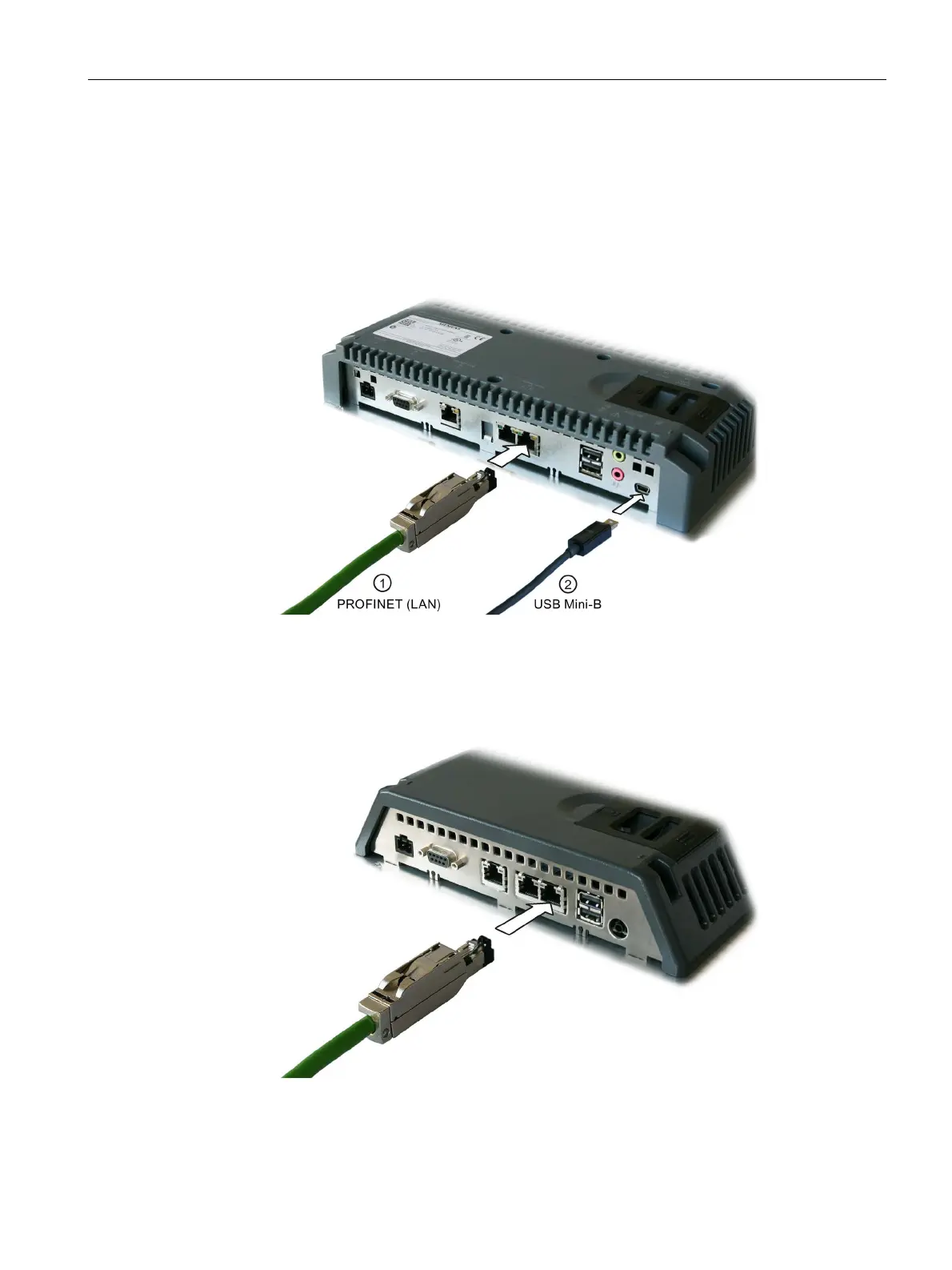

The following figure shows how to connect a Comfort V1 device to a configuration PC with
TP1500 Comfort V1 as an example.
The Comfort V1.1 devices are connected in the same way.
The following figure shows how to connect a Comfort V2 device to a configuration PC with
TP1500 Comfort V2 as an example.
The interfaces are described in the specifications.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Siemens SIMATIC HMI TP1200 Comfort and is the answer not in the manual?

Siemens SIMATIC HMI TP1200 Comfort Specifications

General IconGeneral
Display Size12.1 inches
Resolution1280 x 800 pixels
Power Supply24 V DC
Display TypeTFT LCD
Brightness400 cd/m²
Operating Temperature0 to 50 °C
Relative Humidity10% to 90% (non-condensing)
InterfacesUSB, RS422/RS485
Protection ClassIP65 (front)
Touch TechnologyProjected capacitive touch (PCAP)
