Commissioning the device
4.3 Parameter assignment for Comfort Panel
Comfort Panels
Operating Instructions, 07/2017, A5E36770603-AB
137
Requirement
● The Control Panel is open.
● The storage medium with the backed up data is inserted in the HMI device.
Procedure

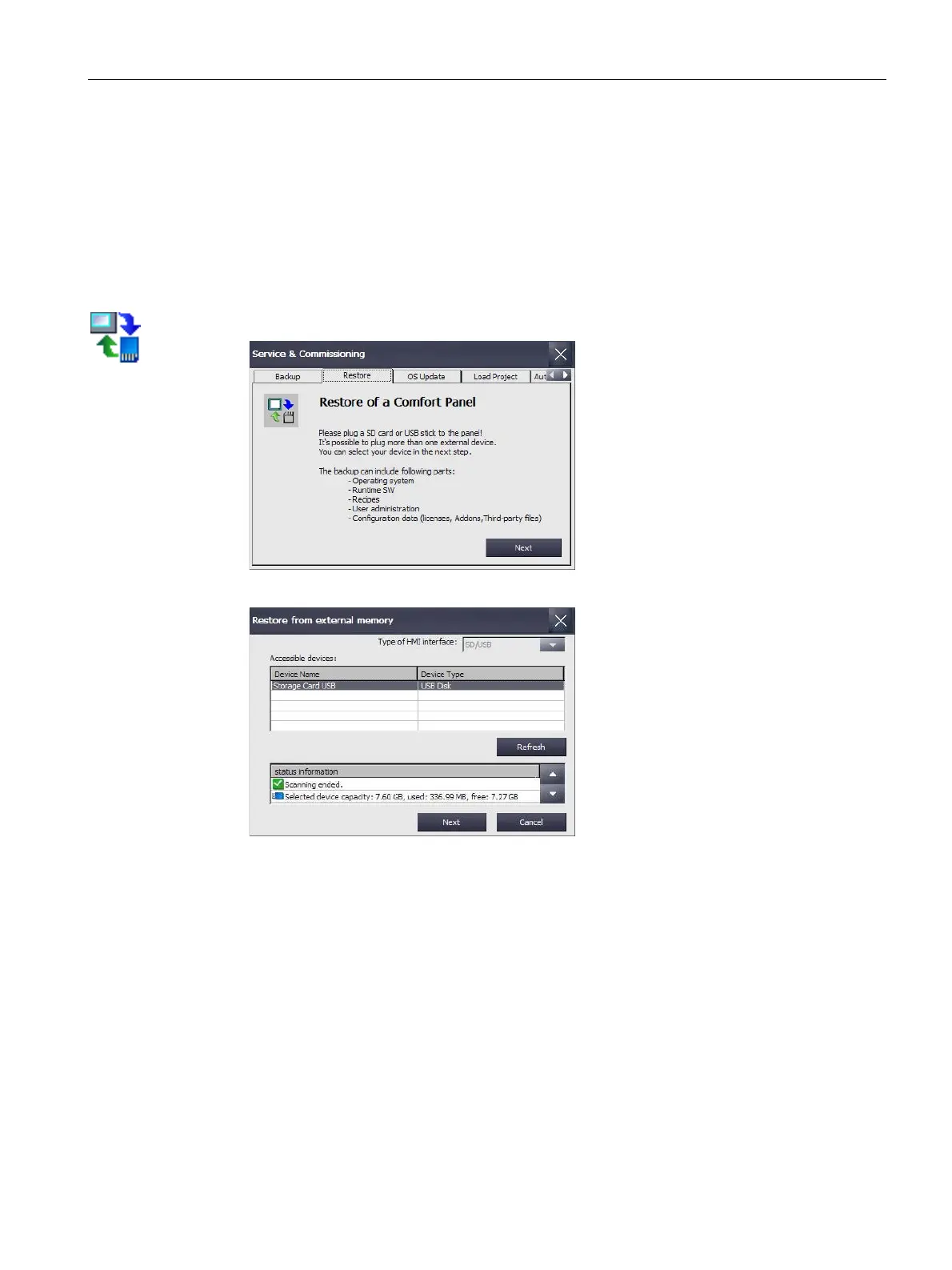

1. Open the "Service & Commissioning" dialog using the "Service & Commissioning" icon.
2. Change to the "Restore" tab.
3. Press the "Next" button. The "Restore from external memory" dialog is displayed.
The "0 devices found" message appears if there is no storage medium in the HMI device
or if it is defective. Insert a storage media or replace the storage medium.
4. Press the "Refresh" button, if necessary. The "Accessible devices:" group is updated. The
HMI device checks the storage medium. Information about this storage medium is
displayed in the "status information" field.
5. Select the storage medium with the required backup in the "Accesible devices:" group.

Siemens SIMATIC HMI TP1200 Comfort Specifications

General

Display Size	12.1 inches
Resolution	1280 x 800 pixels
Power Supply	24 V DC
Display Type	TFT LCD
Brightness	400 cd/m²
Operating Temperature	0 to 50 °C
Relative Humidity	10% to 90% (non-condensing)
Interfaces	USB, RS422/RS485
Protection Class	IP65 (front)
Touch Technology	Projected capacitive touch (PCAP)
