Siemens SIMATIC HMI TP1200 Comfort User Manual

Mounting and connecting the HMI device
3.3 Connecting the device
Comfort Panels
60 Operating Instructions, 07/2017, A5E36770603-AB
Installing a strain relief
With the 4" and 7" models, protect the cables with a separate strain relief. Install the strain
relief on the HMI device.

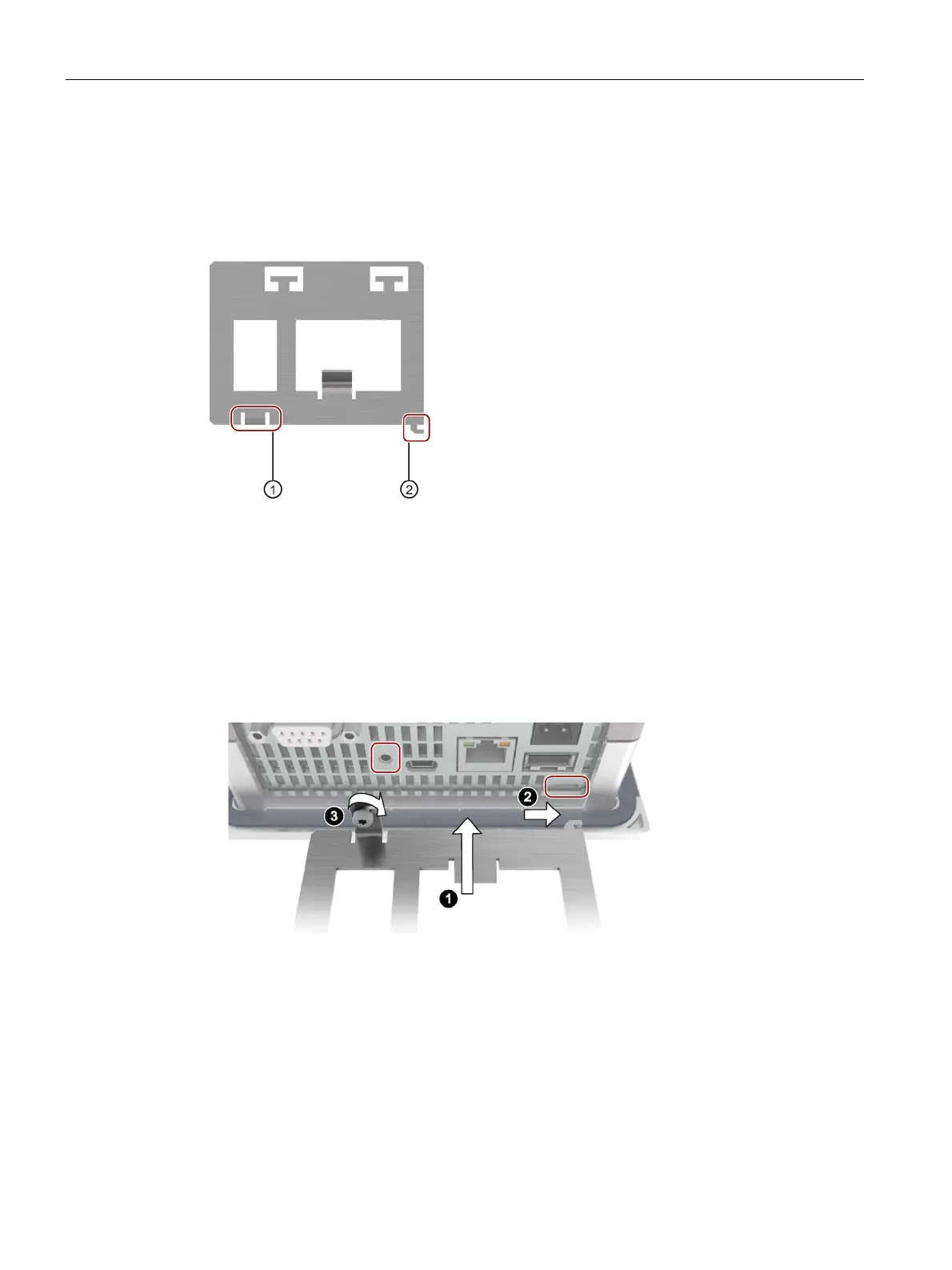

The following figure shows the fixing elements of the strain relief for the 4" model:
①
Bore hole for Torx screw
The strain relief is fastened with the Torx screw of the connection for equipotential bonding.
Before you install the strain relief, remove the Torx screw.
②
Safety latch
Proceed as follows:
1. Position the strain relief flush with the HMI device.
2. Push the strain relief to the right.
3. Secure the strain relief with the Torx screw.

Siemens SIMATIC HMI TP1200 Comfort Specifications

General

Display Size	12.1 inches
Resolution	1280 x 800 pixels
Power Supply	24 V DC
Display Type	TFT LCD
Brightness	400 cd/m²
Operating Temperature	0 to 50 °C
Relative Humidity	10% to 90% (non-condensing)
Interfaces	USB, RS422/RS485
Protection Class	IP65 (front)
Touch Technology	Projected capacitive touch (PCAP)
