Mounting and connecting
3.2 Mounting the HMI device
KTP400 Basic, KTP600 Basic, KTP1000 Basic, TP1500 Basic
Operating Instructions, 08/2008, A5E01075587-01
29

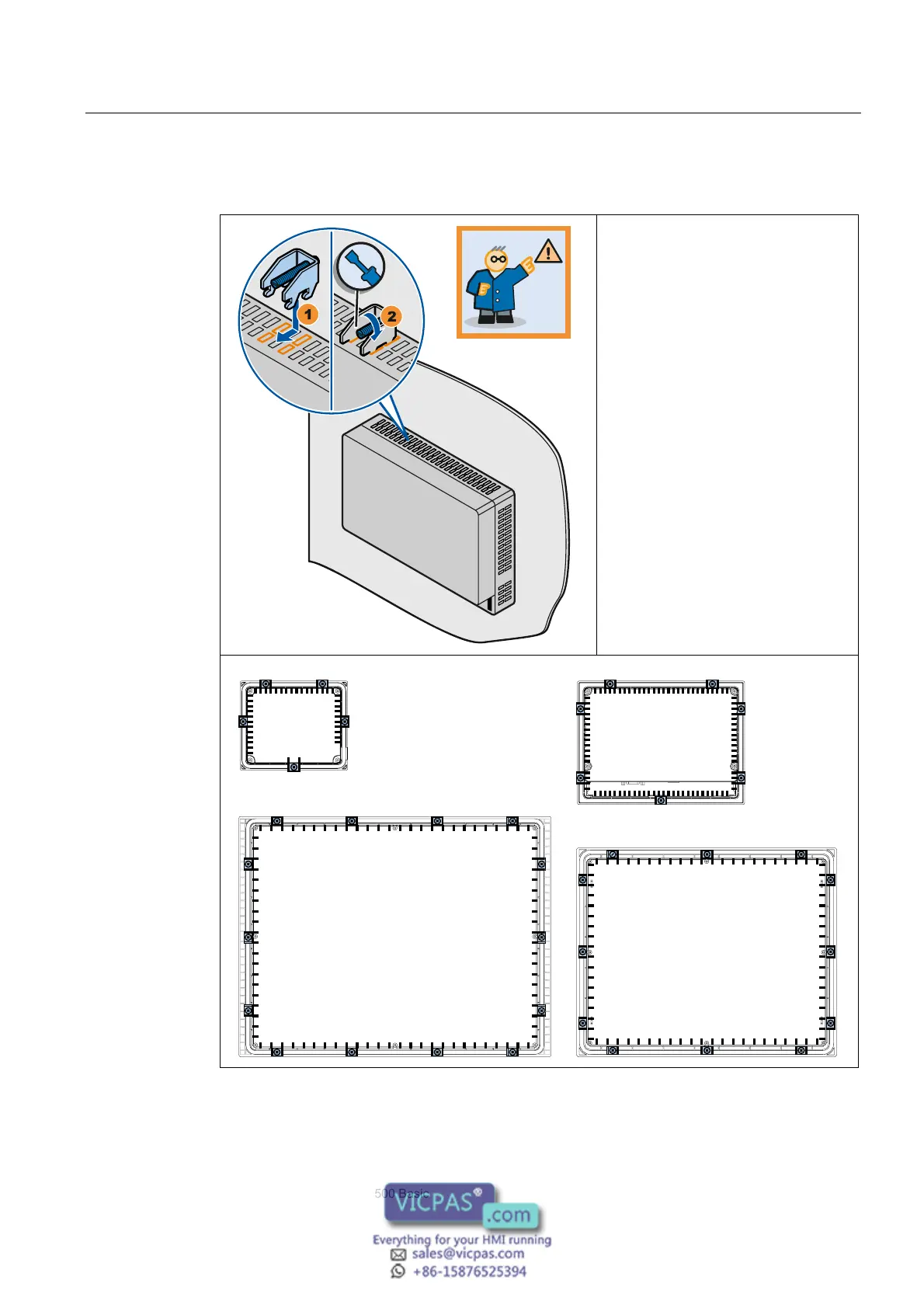

Securing the HMI device
.73
ื 0.2
Nm
1. Insert the first clamp at the first
position of the recesses on the back
of the HMI device.
Set the clamp positions for your HMI
device to match those of the figures
in the following table row.
2. Secure the clamps using a size 2
screwdriver. The maximum
permitted torque is 0.2 N/m.
3. Repeat steps 1 and 2 for all clamps
required to secure your HMI device.
73
ದ ದ ದ ದ
ದ
ದ
ದ
.73
ದ ದ ದ
ದ
ದ
ದ
.73
ದ
ದ
ದ
.73
ದ ದ
ದ
ದ
