Mounting and connecting
3.3 Connecting the HMI device
KTP400 Basic, KTP600 Basic, KTP1000 Basic, TP1500 Basic
Operating Instructions, 08/2008, A5E01075587-01
35
3.3.5 Connecting the configuration PC
A configuration PC provides the following options:
● Transferring projects.
● Transferring device images.
● Resetting HMI device to factory settings.

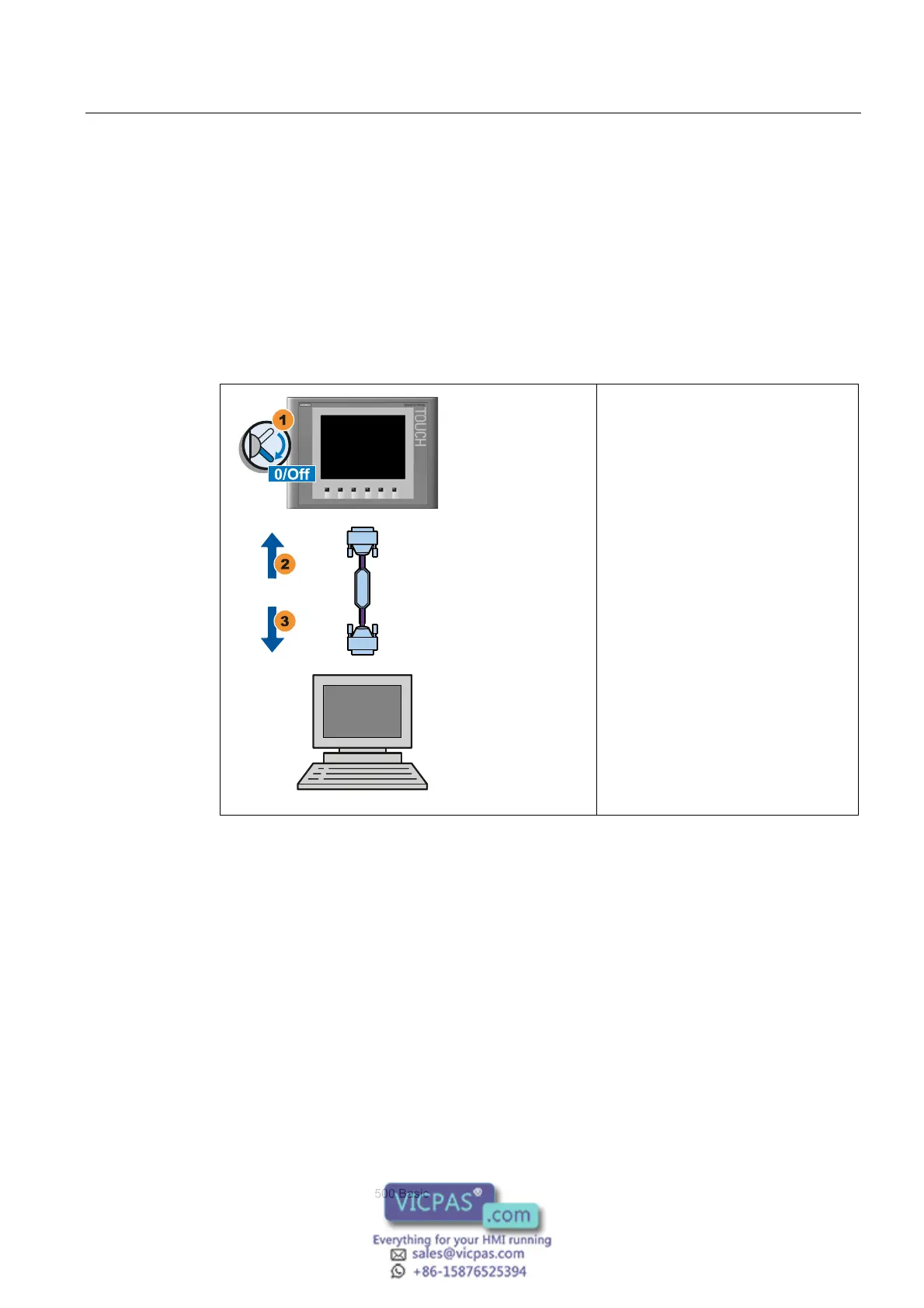

Connecting a configuration PC to a Basic Panel DP
PC
RS422/485
RS 232
Serial
1. Shut down the HMI device.
2. Connect the RS 485 connector of
the PC/PPI cable to the HMI device.
3. Connect the RS 232 connector of
the PC/PPI cable to the
configuration PC.
You can also use the USB/PPI cable
from the accessories instead of the
PC/PPI cable.
You can find ordering information in the
Accessories (Page 19) section.
