MP 377 15" Touch daylight readable (WinCC flexible)
Operating Instructions (Compact), 04/2009, A5E02532357-01
29
Mounting and connecting the HMI device
4
4.1 Mounting the HMI device
Requirement
These are the requirements:
● All packaging components and protective foils should be removed from the HMI device.
● The HMI device comes equipped with a mounting seal.
● 10 mounting clamps from the accessory kit
● The mounting cut-out is burr-free.
To ensure the necessary degree of protection on the front of the HMI device, you will have to
observe the mounting clamp positions listed below.

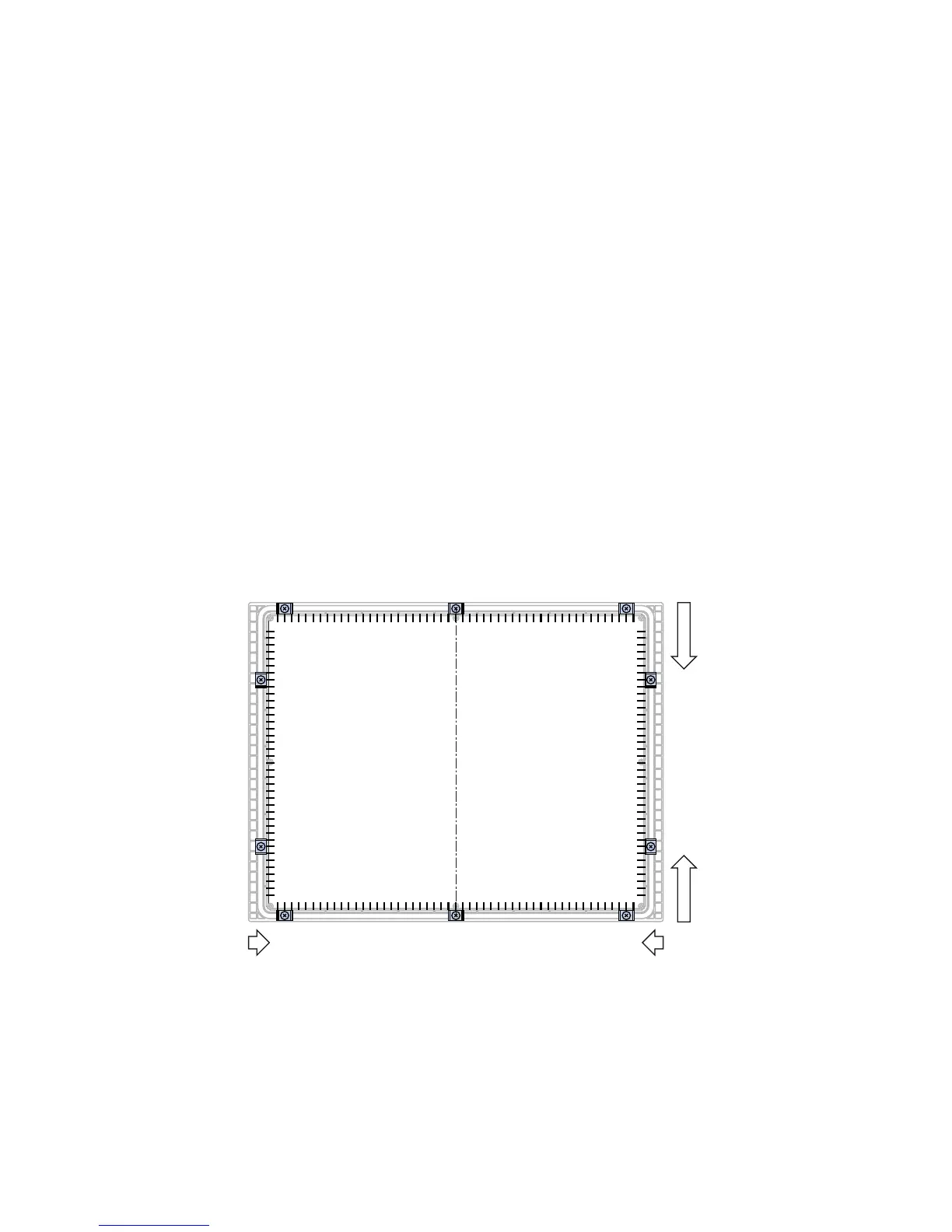

Position of the mounting clamps
The following figure shows the positions for installation of the mounting clamps.
ದ ದ
ದ
ದ
