Configuring the operating system
6.3 Setting the display brightness
MP 377 15" Touch daylight readable (WinCC flexible)
Operating Instructions (Compact), 04/2009, A5E02532357-01
43
Procedure
Proceed as follows:
1. Click on the "ADVANCED" button.

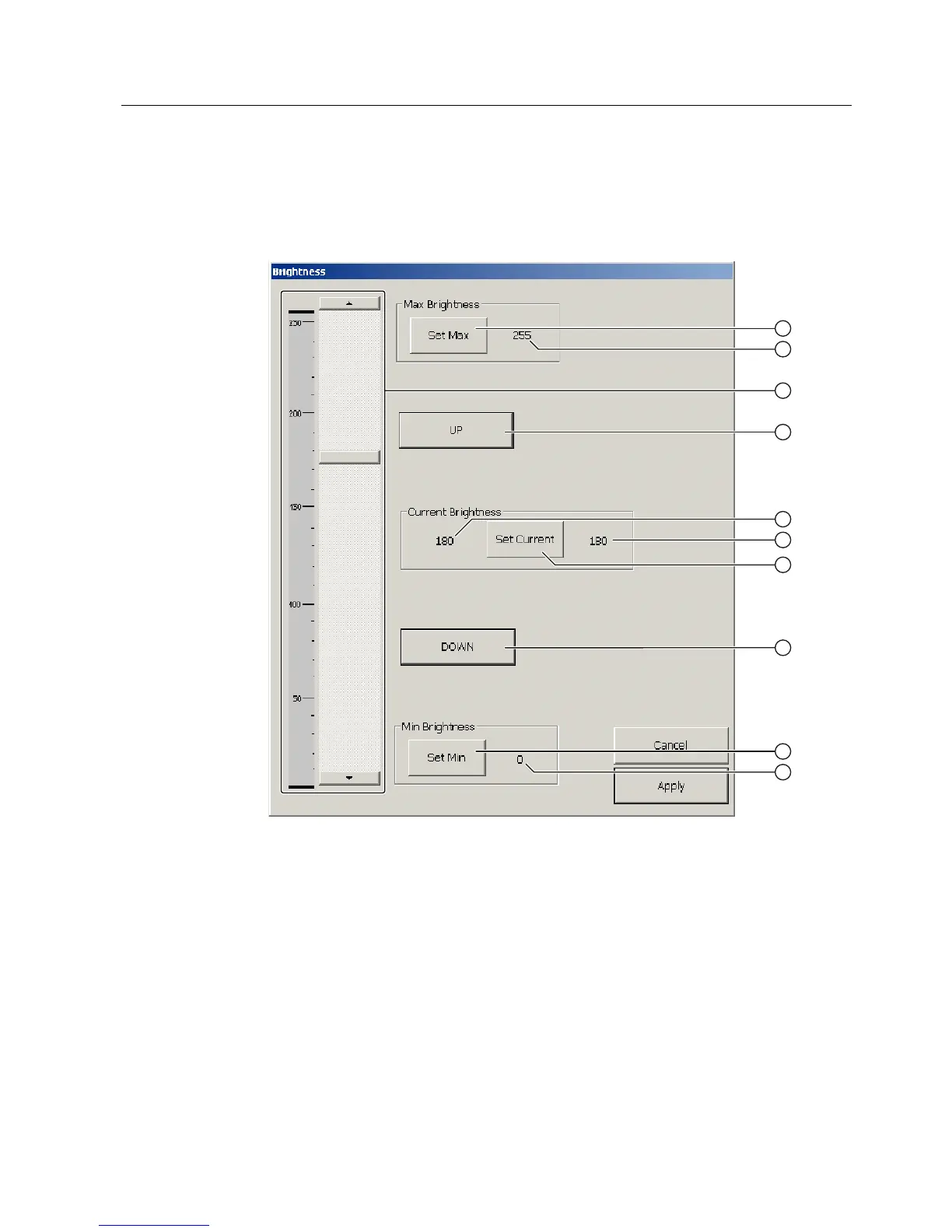

The following dialog opens:
① Button for entry of value for maximum display brightness
② Value for maximum display brightness
③ Slider control
④ Button for increase in brightness
Increment – increase brightness by one increment
⑤ Currently selected brightness
⑥ Saved brightness
⑦ Button for setting currently selected brightness
⑧ Button for decrease in brightness
Increment – decrease brightness by one increment
⑨ Button for entry of value for minimum display brightness
⑩ Value for minimum display brightness
