3.4 TP ports
Connector pinout
On the CSM 1277, the TP ports are implemented as RJ-45 sockets with MDI-X assignment
(Medium Dependent Interface–Autocrossover) of a network component.

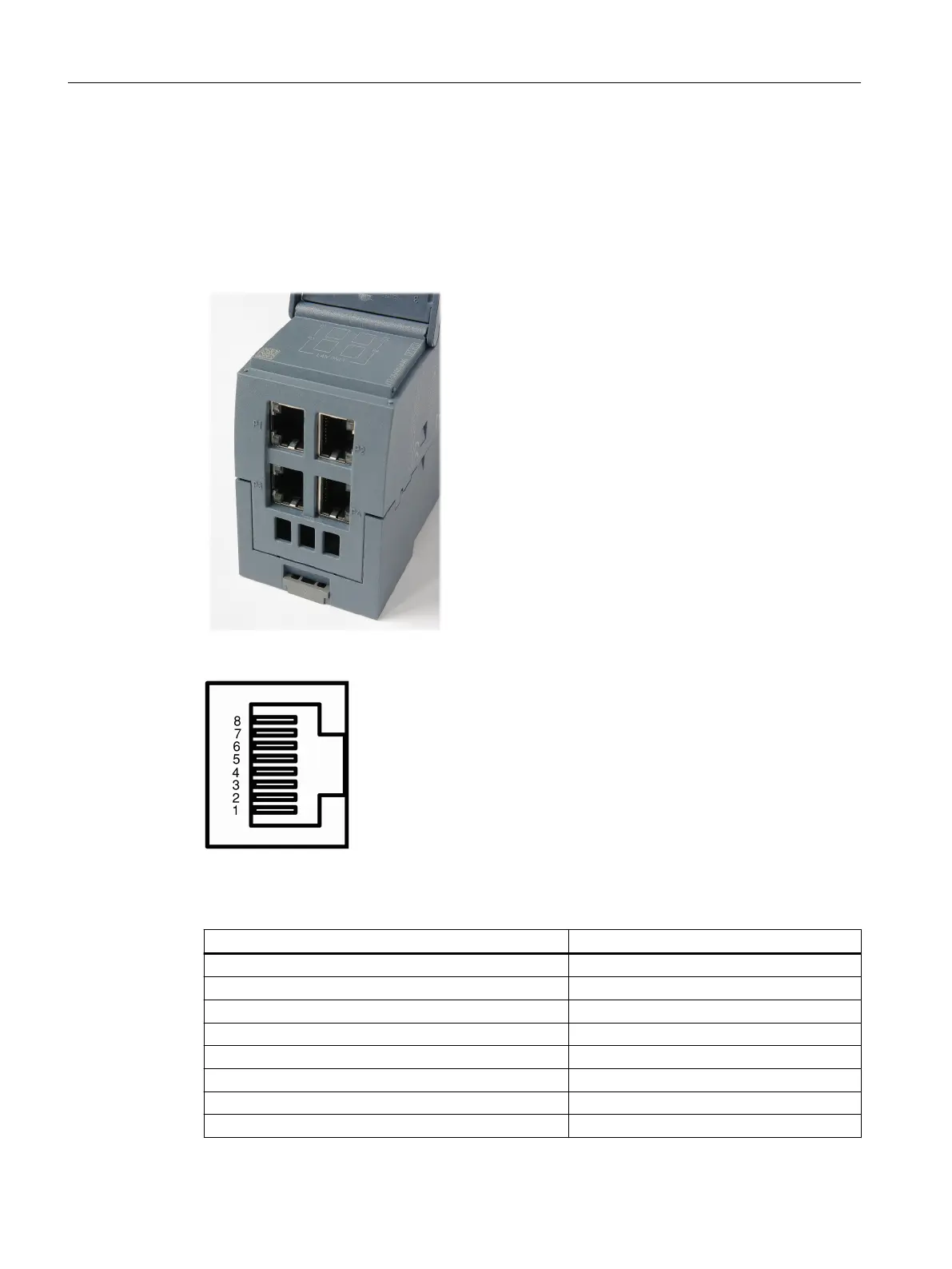

Figure 3-2 RJ-45 jacks
Figure 3-3 RJ-45 jack
Table 3-1 Pin assignment of the RJ-45 jack
Pin number Assignment
Pin 8 n. c.
Pin 7 n. c.
Pin 6 TD-
Pin 5 n. c.
Pin 4 n. c.
Pin 3 TD+
Pin 2 RD-
Pin 1 RD+
Product characteristics
3.4 TP ports
Compact Switch Module CSM 1277
14 Compact Operating Instructions, 06/2022, A2B00079397-02

Siemens SIMATIC NET S7-1200 Specifications

General

Supply voltage	24 V DC
Protection class	IP20
Product type designation	S7-1200
Transfer rate	10/100 Mbit/s
Number of ports	4
Power consumption	2.5 W
Operating temperature	0 °C to 60 °C
Mounting type	DIN rail
Switching capacity	1 Gbps
