4.7 Fitting the IE FC RJ-45 Plug 180
IE FC RJ‑45 Plug 180
The rugged node connectors with PROFINET-compliant plug-in connectors are designed for
industry and provide sure contact.
Assembly of the IE FC RJ-45 Plug 180 on an IE FC standard cable
For information on assembling an IE FC RJ-45 Plug 180 on a SIMATIC NET Industrial Ethernet
FastConnect cable, please refer to the instructions supplied with the IE FC RJ-45 Plug.

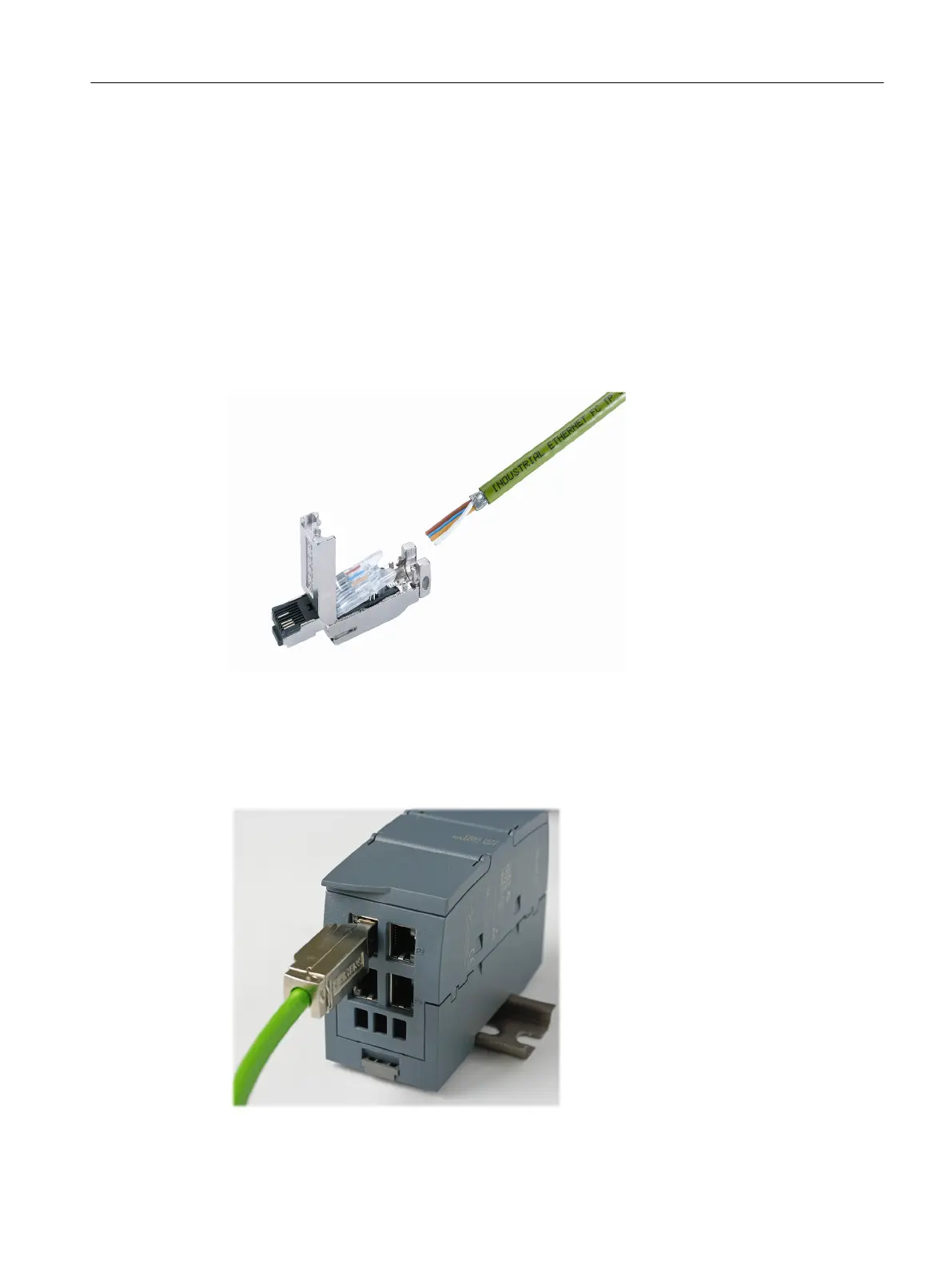

Figure 4-6 IE FC RJ‑45 Plug 180
Inserting the IE FC RJ-45 Plug 180
Insert the IE FC RJ‑45 Plug 180 into the twisted pair port of the CSM 1277 until it locks in place.
Figure 4-7 Inserting the IE FC RJ-45 Plug 180
Installation
4.7 Fitting the IE FC RJ-45 Plug 180
Compact Switch Module CSM 1277
Compact Operating Instructions, 06/2022, A2B00079397-02 33

Siemens SIMATIC NET S7-1200 Specifications

General

Supply voltage	24 V DC
Protection class	IP20
Product type designation	S7-1200
Transfer rate	10/100 Mbit/s
Number of ports	4
Power consumption	2.5 W
Operating temperature	0 °C to 60 °C
Mounting type	DIN rail
Switching capacity	1 Gbps
