Siemens SIMATIC NET S7-1200 Compact Operating Instructions

4.4 Power supply
Power supply
The power supply is connected using a 3-pin plug-in terminal block. The functional ground can
be connected to the grounded DIN rail. It does not need to be connected for problem-free
operation. The power supply is non-󹪞oating.

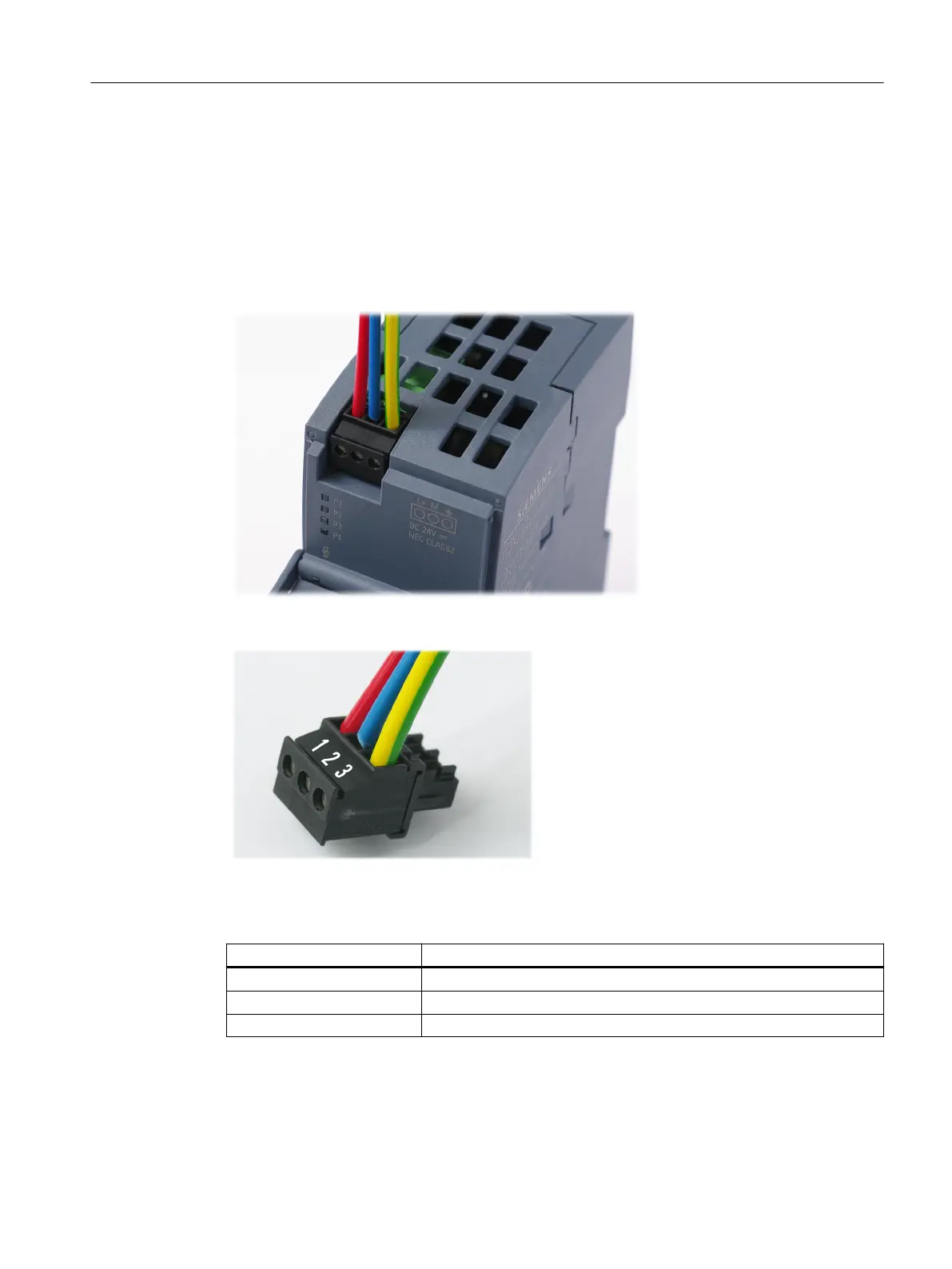

Figure 4-4 Connecting the power supply
Figure 4-5 Pin assignment of the terminal block
Table 4-1 Pin assignment for the power supply
Pin number Assignment
Pin 1 L+ (24 V DC)
Pin 2 M (chassis ground)
Pin 3 Functional ground
Installation
4.4 Power supply
Compact Switch Module CSM 1277
Compact Operating Instructions, 06/2022, A2B00079397-02 29

Siemens SIMATIC NET S7-1200 Specifications

General

Supply voltage	24 V DC
Protection class	IP20
Product type designation	S7-1200
Transfer rate	10/100 Mbit/s
Number of ports	4
Power consumption	2.5 W
Operating temperature	0 °C to 60 °C
Mounting type	DIN rail
Switching capacity	1 Gbps
