Siemens SIMATIC NET S7-1200 Compact Operating Instructions

4.3 Fixing onto standard mounting rails
Installation on a 35 mm DIN rail
Note
The CSM 1277 does not have a feedthrough for the backplane bus. It must therefore be mounted
either at the start or end of the S7-1200 station!
1. Place the upper guide at the top of the CSM housing in the 35 mm DIN rail (DIN EN 60715
TH35 ).
2. Push in the lower part of the CSM 1277 onto the rail until it locks in place.

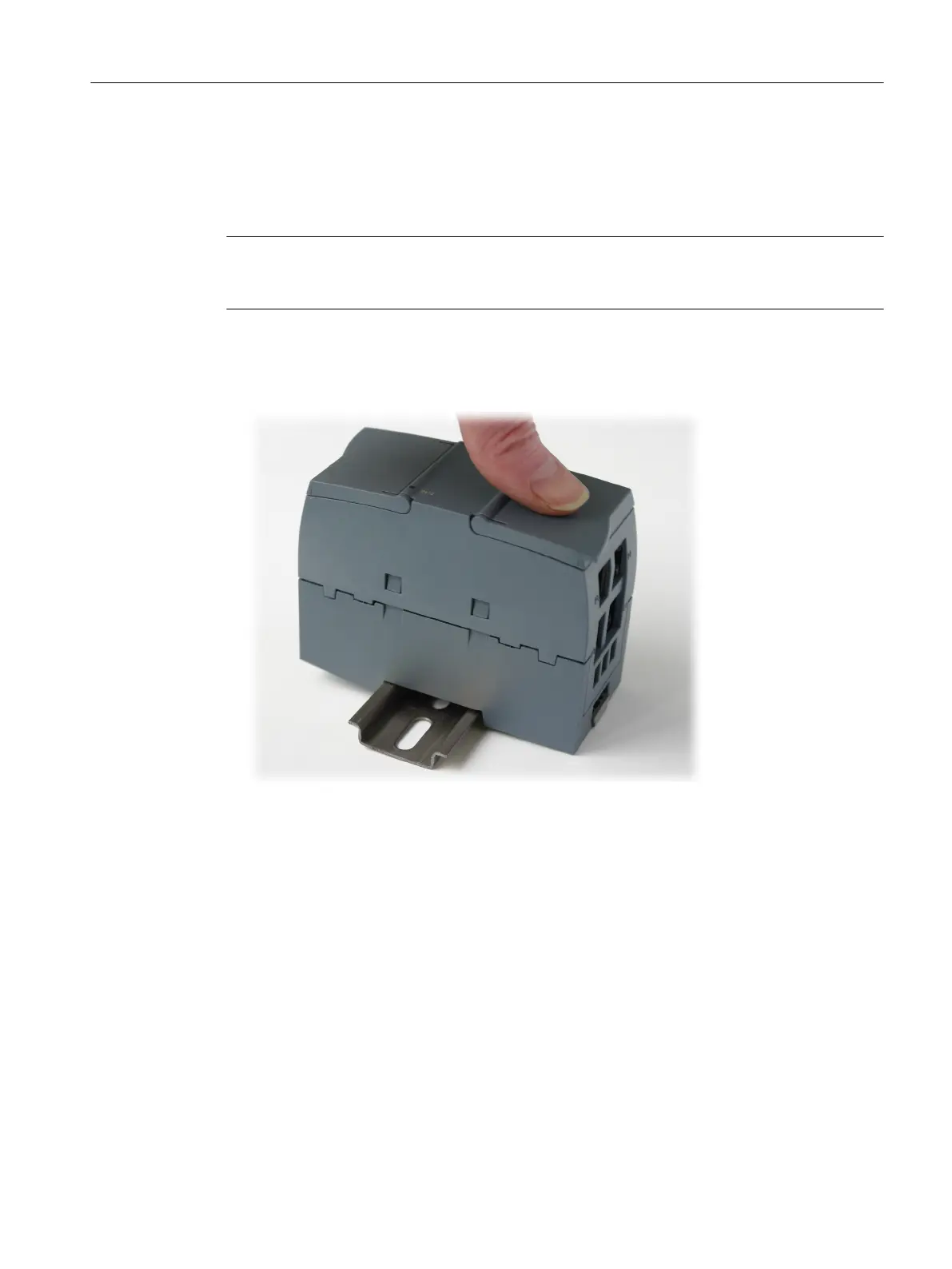

Figure 4-1 Mounting the CSM 1277 on a DIN rail
Installation
4.3 Fixing onto standard mounting rails
Compact Switch Module CSM 1277
Compact Operating Instructions, 06/2022, A2B00079397-02 27

Siemens SIMATIC NET S7-1200 Specifications

General

Supply voltage	24 V DC
Protection class	IP20
Product type designation	S7-1200
Transfer rate	10/100 Mbit/s
Number of ports	4
Power consumption	2.5 W
Operating temperature	0 °C to 60 °C
Mounting type	DIN rail
Switching capacity	1 Gbps
