Configuring with Web Based Management
4.5 "Layer 2" menu
SCALANCE SC-600 Web Based Management (WBM)
Configuration Manual, 10/2021, C79000-G8976-C475-03
251

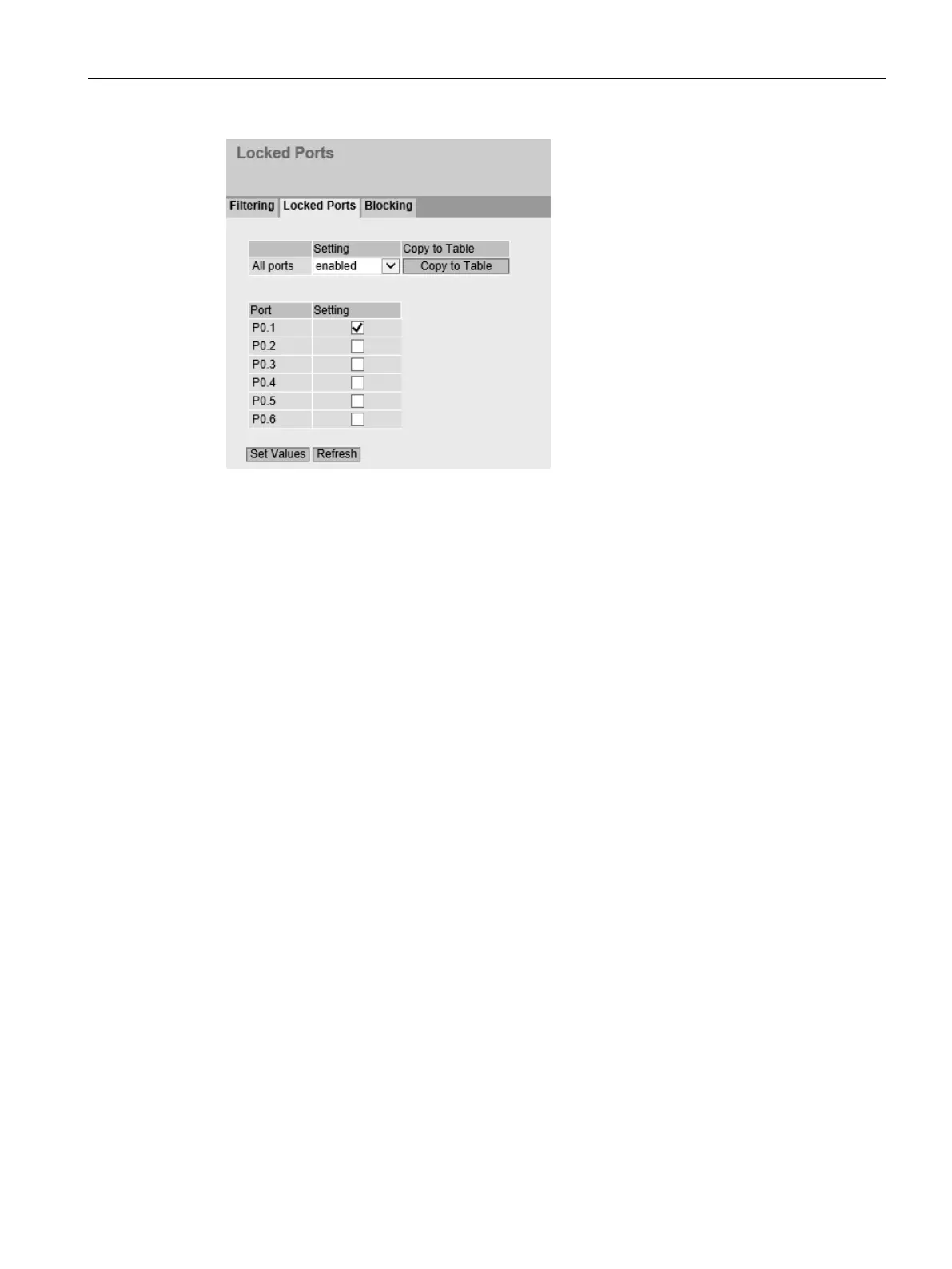

Description of the displayed boxes
Table 1 has the following columns:
• 1st column
Shows that the settings are valid for all ports of table 2.
• Setting
Select the setting from the drop-down list. You have the following setting options:
– Enabled
Enables the port lock function.
– Disabled
Disables the port lock function.
– No change
Table 2 remains unchanged.
• Copy to Table
If you click the button, the setting is adopted for all ports of table 2.
Table 2 has the following columns:
• Port
This column lists all the ports available on this device.
• Setting
Enable or disable access control for the port.
Configuration procedure
Enabling access control for an individual port
1. Select the check box in the relevant row in table 2.
2. To apply the changes, click the "Set Values" button.
