Description of the device
4.3 Device view
SCALANCE WxM766
20 Operating Instructions, 03/2022, C79000-G8976-C617-03

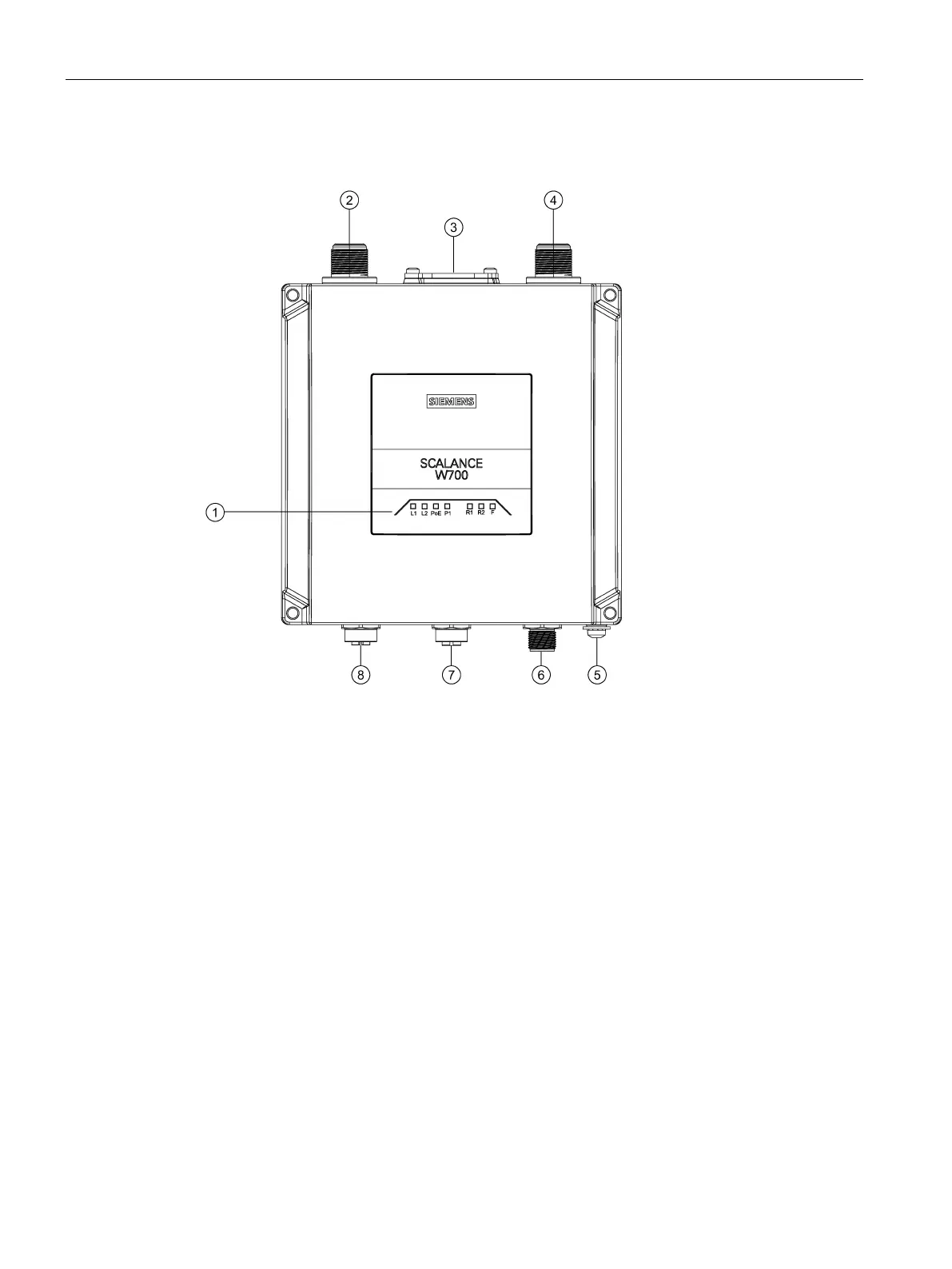

4.3 Device view
R1A1 antenna connector, female N-Connect type
- for the reset button and
- for the PLUG slot (CLP)
R2A1 antenna connector, female N-Connect type
Ground connector (thread M4) on the bottom
Connector for power supply (L1, L2)
Digital input (DI) / Digital output (DQ)
Ethernet connector P1 (PoE capability)
