Assembly and disassembly
5.5 DIN rail mounting
SCALANCE WxM766
42 Operating Instructions, 03/2022, C79000-G8976-C617-03
5.5 DIN rail mounting
5.5.1 Installation with the DIN rail mounting adapter
The DIN rail mounting adapter is not included with the product, see Accessories
(Page 22).
Mounting
1. Screw (M3 x 8, tightening torque 0.8 Nm) the DIN rail mounting adapter onto the
rear of the device. The mounting material is supplied with the DIN rail mounting
adapter.

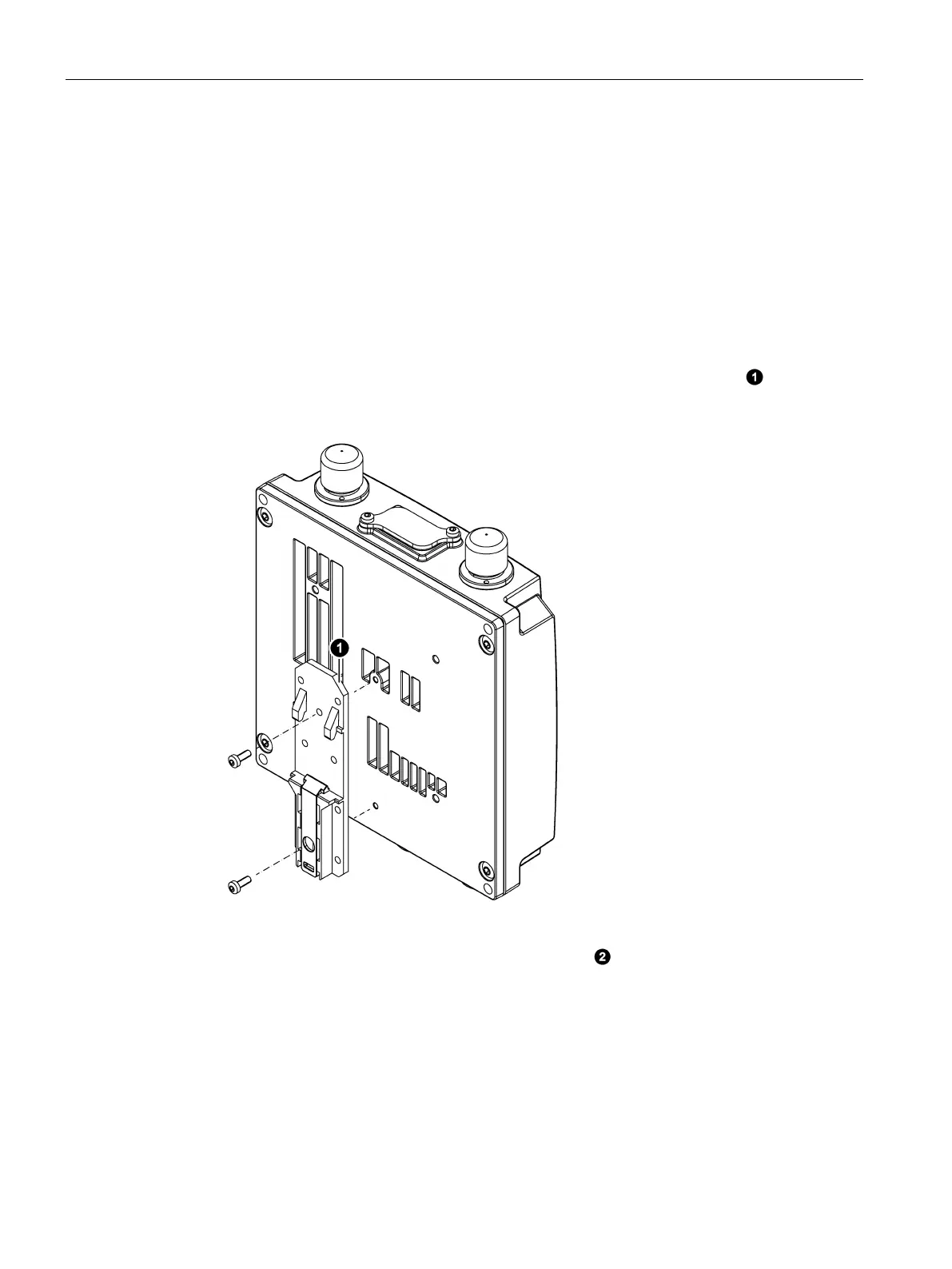

Figure 5-1 W7x8 with adapter plate
2. Place the device on the upper edge of the DIN rail .
