SCALANCE W774-1 /W734-1
Operating Instructions, 07/2020, C79000-G8976-C325-14
13
Description of the device
3

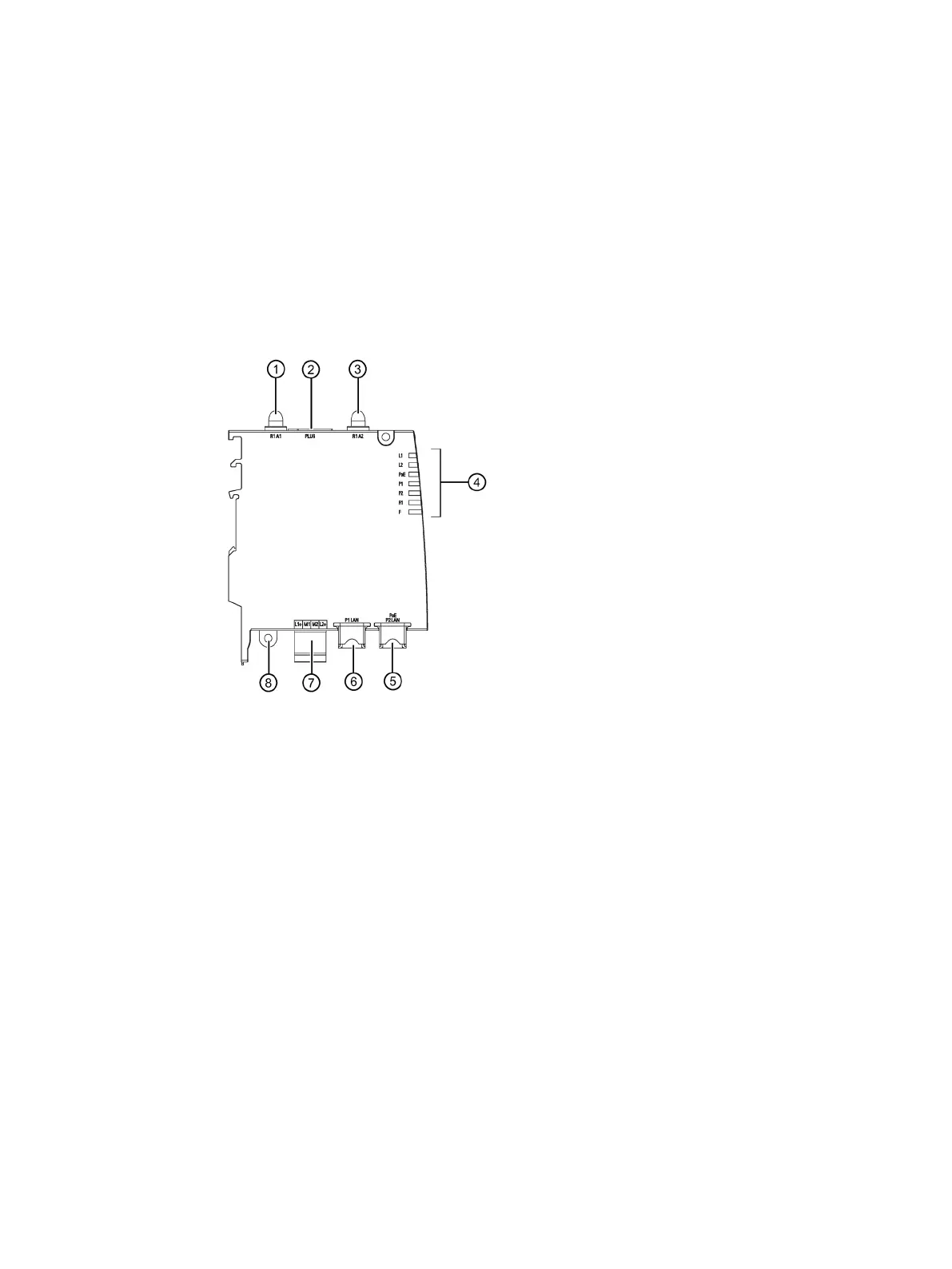

3.1 Description of the device
SCALANCE W774-1 /W734-1 RJ45
①
Antenna connector R1A1
②
PLUG slot / RESET button
③
Antenna connector R1A2
④
LEDs
⑤
Ethernet connector P2 (PoE capability)
⑥
Ethernet connector P1
⑦
Connector for power supply (L1, L2)
⑧
Eye for grounding (diameter 4.5 mm) / wall mounting
Figure 3-1 Device description of the RJ-45 variant
