Siemens SIMATIC NET SCALANCE W774-1 RJ-45 - Suitable Antenna Cables and Antennas

Connection
5.6 Suitable antenna cables and antennas

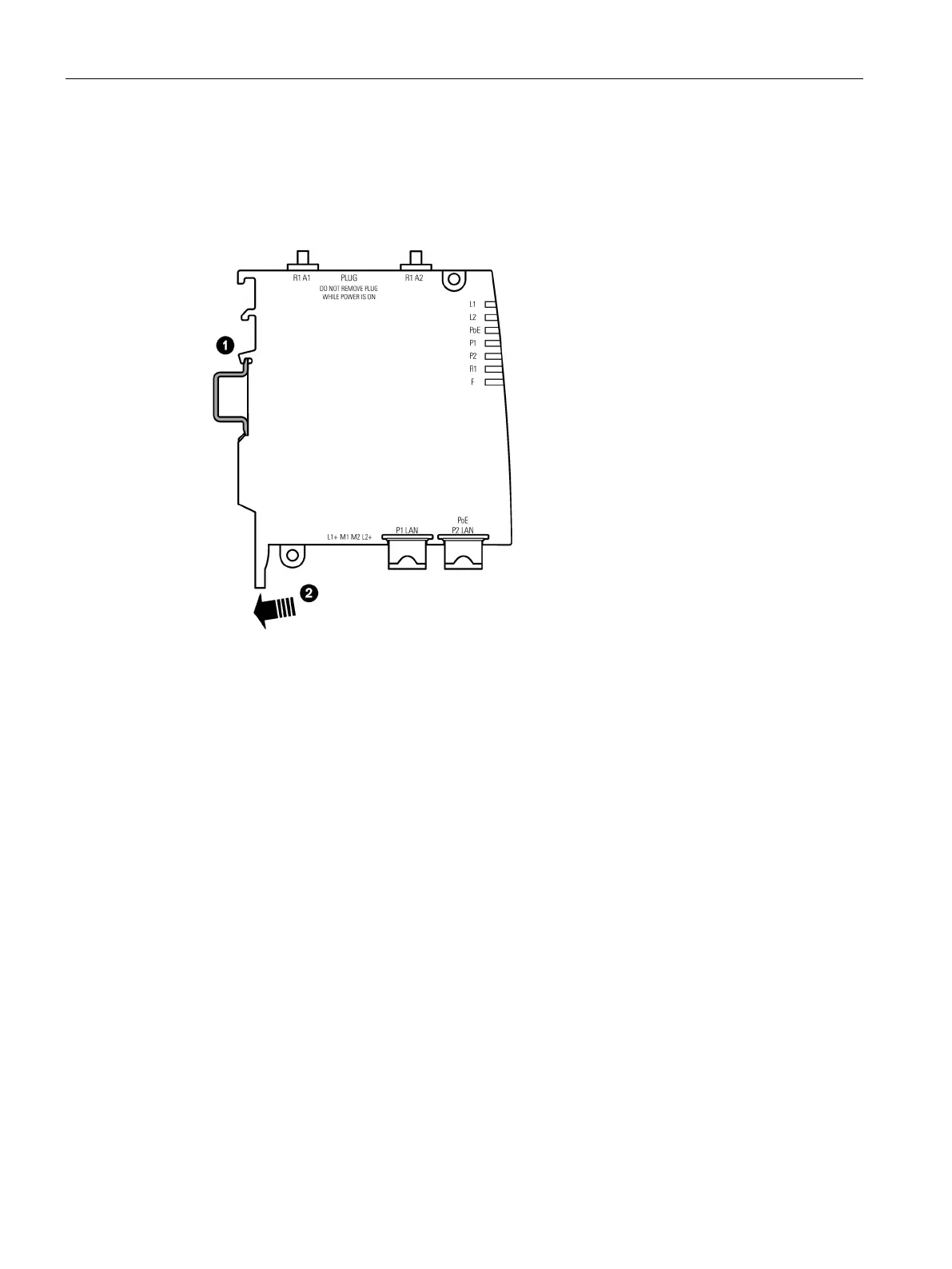

SCALANCE W774-1/W734-1
32 Operating Instructions, 09/2015, C79000-G8976-C325-06
Note
Cabinet installation
When installing the SCALANCE W770/W730 in a cabinet, you need
to use detached
antennas. Suitable connecting cable for a connection between SCALANCE W770/W730 and
a detached antenna are available from SIMATIC NET. You will find detailed information in
the following section.
5.6
Suitable antenna cables and antennas
N-Connect/R-SMA connecting cable
To connect an antenna with an N-Connector, the following cables are suitable:
Length
Order number
0.3 m
1 m
2 m
5 m
10 m
6XV1875-5CE30
6XV1875-5CH10
6XV1875-5CH20
6XV1875-5CH50
6XV1875-5CN10
Suitable antennas
Note
When you select an antenna, keep in mind the national approvals for your device.
Type
Properties
Order number
ANT792-6MN Omni antenna, mast/wall mounting, 6 dBi
2.4 GHz, N-Connect female
6GK5 792-6MN00-0AA6
ANT793-6MN Omni antenna, mast/wall mounting, 5 dBi
5 GHz, N-Connect female
6GK5 793-6MN00-0AA6
ANT793-8DJ Directional antenna, mast/wall mounting,
18 dBi
5 GHz, 2 x N-Connect female
6GK5 793-8DJ00-0AA0
ANT793-8DK Directional antenna, mast/wall mounting,
23 dBi
5 GHz, 2 x N-Connect female
6GK5 793-8DK00-0AA0
ANT793-8DP Directional antenna, mast/wall mounting,
13 / 13.5 dBi
4.9 GHz and 5 GHz, N-Connect female
6GK5793-8DP00-0AA0
ANT795-6DC Wide angle antenna, mast/
wall mounting, 9 dBi
2.4 GHz and 5 GHz, N-Connect female
6GK5 795-6DC00-0AA0
