Connection
5.6 Suitable antenna cables and antennas

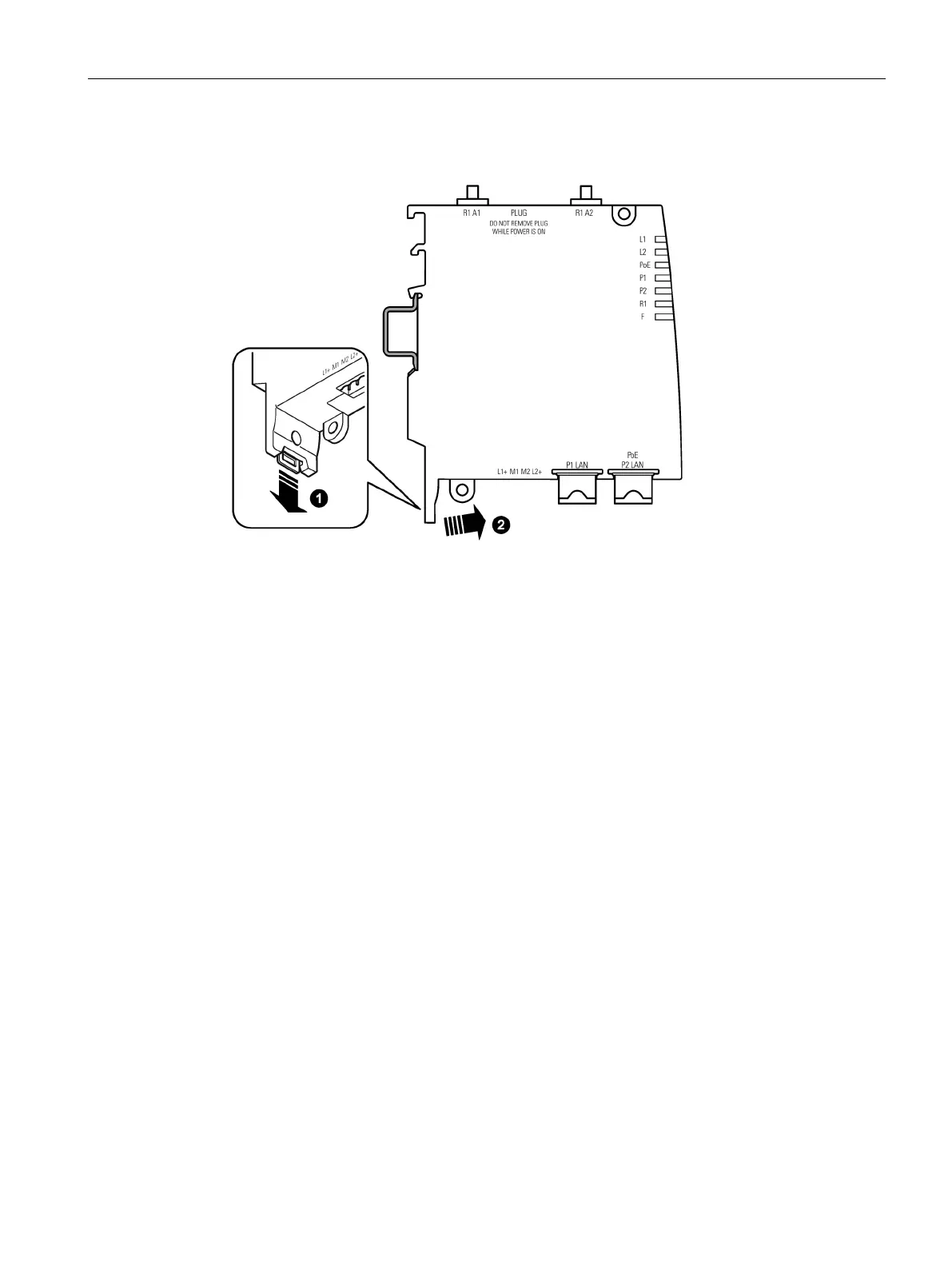

SCALANCE W774-1/W734-1
Operating Instructions, 09/2015, C79000-G8976-C325-06
33
ANT793-6DG Wide angle antenna, mast/
wall mounting, 9 dBi
5 GHz, 2 x N-Connect female
6GK5 793-6DG00-0AA0
ANT795-6MN Omni antenna, mounted on roof/vehicle,
6/8 dBi
2.4 GHz and 5 GHz, N-Connect female
6GK5 795-6MN10-0AA6
ANT795-4MC Omnidirectional antenna, 3/5 dBi, 2.4 GHz
and 5 GHz, IP65, N-Connect male for
direct installation on the device, straight
connector.
6GK5 795-4MC00-0AA3
ANT795-4MD Omnidirectional antenna, 3/5 dBi, 2.4 GHz
and 5 GHz, IP65, N-Connect male for
direct installation on the device, 90° con-
nector.
6GK5 795-4MD00-0AA3
ANT795-4MA Omni antenna, directly on the device, 3/5
dBi
2.4 GHz and 5 GHz, IP30, R-SMA con-
nector male for direct mounting on the
device, connector angle adjustable 0° to
180°.
6GK5 795-4MA00-0AA3
ANT792-4DN RCoax helical antenna, circular polariza-
tion, 4 dBi, 2.4 GHz, N-connect female.
6GK5 792-4DN00-0AA6
ANT793-4MN RCoax λ5/8 antenna with vertical polariza-
tion, 6 dBi, 5 GHz, N-connect female.
6GK5 793-4MN00-0AA6
ANT795-4MX
Omni Antenna, 2/2,5 dBi, 2,4 GHz and
5GHz, IP69K, N-Connect male
6GK5795-4MX00-0AA0
ANT795-6MP
Omni Antenna 5/7 dBi, 2,4 GHz and 5GHz,
IP67, N-Connect female
6GK5795-6MP00-0AA0
ANT896-6MM
Omni Antenna for Mobile Wireless, WLAN
and GPS, WLAN: 6/7 dBi, 2,4 GHz and
5GHz, IP68, IP69 K, QMA-
Connect female,
Port 2
6GK5896-6MM00-0AA0
ANT793-8DL
Directional Antenna, 5 GHz, 14dBi, IP66,
2xN-Connect female
6GK5793-8DL00-0AA0
IWLAN RCoax cable 2.4
GHz PE 1/2"
Omni antenna, 0 dBi
2.400 - 2.485 GHz, N-Connect female.
6XV1875-2A
IWLAN RCoax cable 5
GHz PE 1/2"
Omni antenna, 0 dBi
5.150 - 5.875 GHz, N-Connect female.
6XV1875-2D
NOTICE
ANT795-4MA
The ANT795-4MA antenna has degree of protection IP30 and is therefore suitable for dry
environments.
