Description of the device

3.2 Structure of the type designation

SCALANCE W774-1 /W734-1

14 Operating Instructions, 07/2020, C79000-G8976-C325-14

SCALANCE W774-1 /W734-1 M12

①

Antenna connector R1A1

②

PLUG slot / RESET button

③

Antenna connector R1A2

④

LEDs

⑤

Ethernet connector P2 (PoE capability)

⑥

Ethernet connector P1

⑦

Connector for power supply (L1, L2)

⑧

Eye for grounding (diameter 4.5 mm) / wall mounting

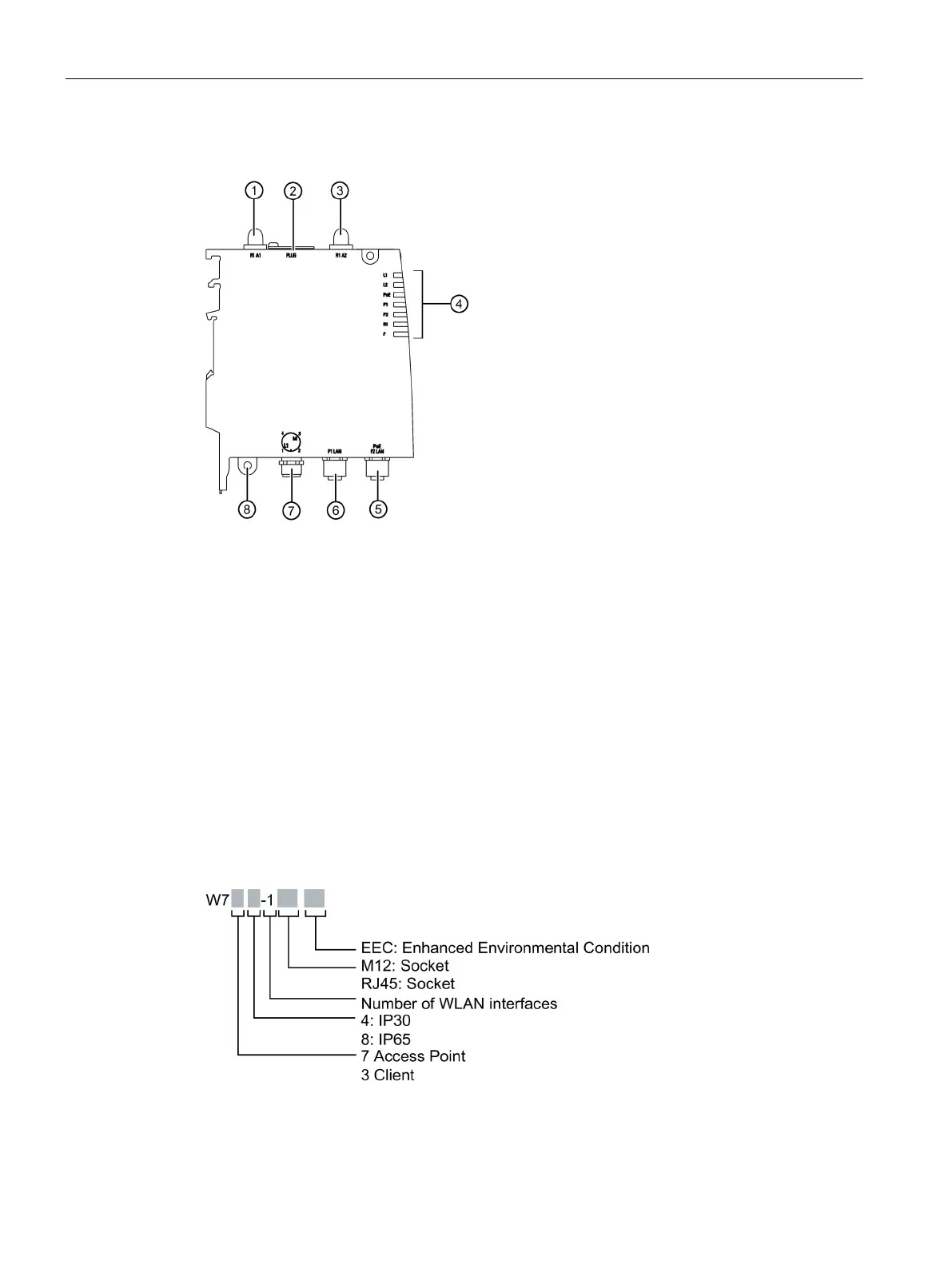

Figure 3-2 Device description of the M12 variant

3.2 Structure of the type designation

The type designation of the device is made up of several parts that have the following

meaning:
