Mounting
4.1 Wall mounting
SCALANCE W774-1 /W734-1
28 Operating Instructions, 07/2020, C79000-G8976-C325-14
4.1 Wall mounting
Drilling template

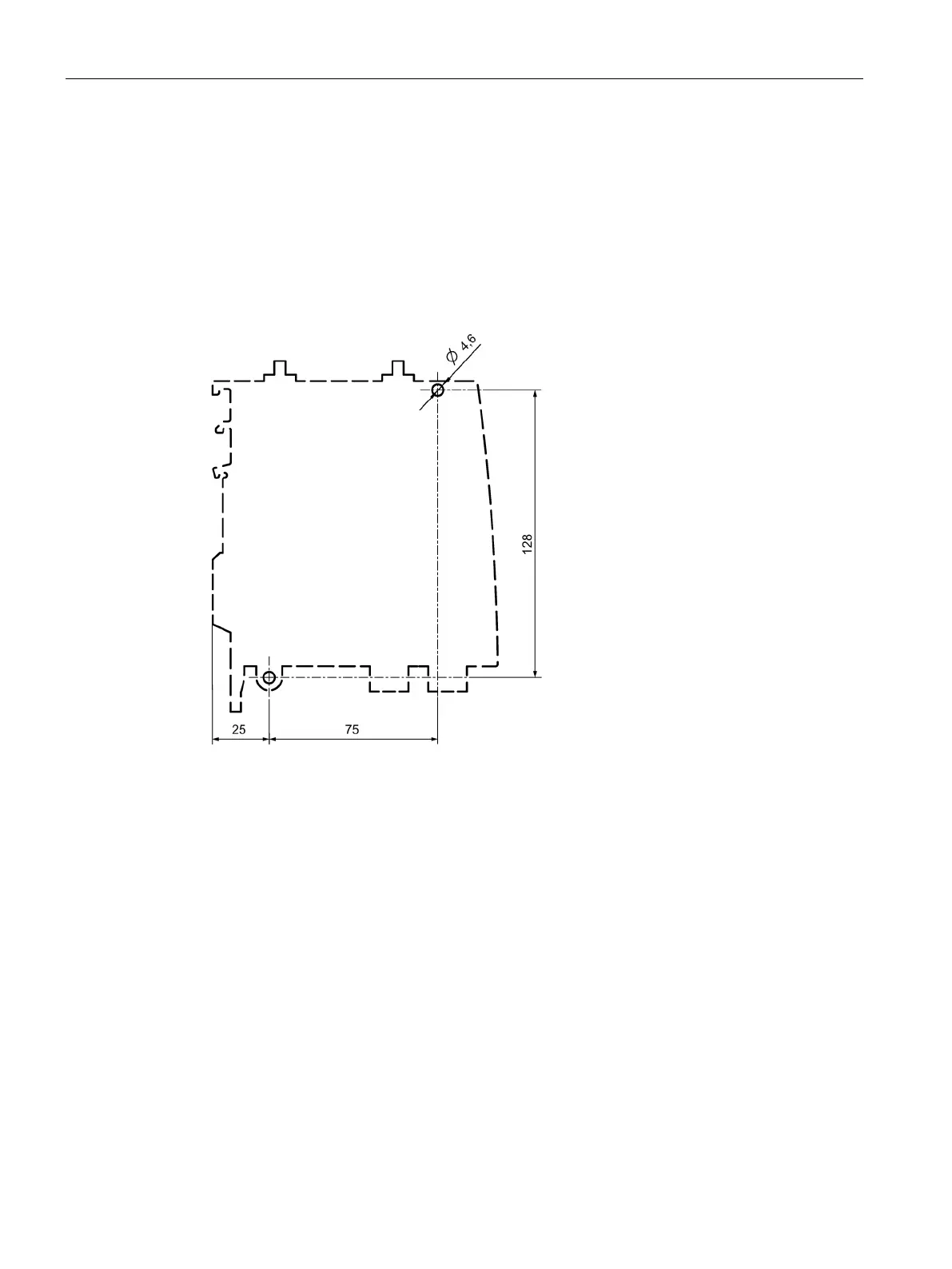

The location of the holes for mounting the SCALANCE W774/W734 on a wall is shown in
the following figure:
