Mounting
4.1 Wall mounting
SCALANCE W774-1 /W734-1
Operating Instructions, 07/2020, C79000-G8976-C325-14
29
Procedure
1. Prepare the drill holes for wall mounting. For the precise dimensions, refer to the
drilling template.

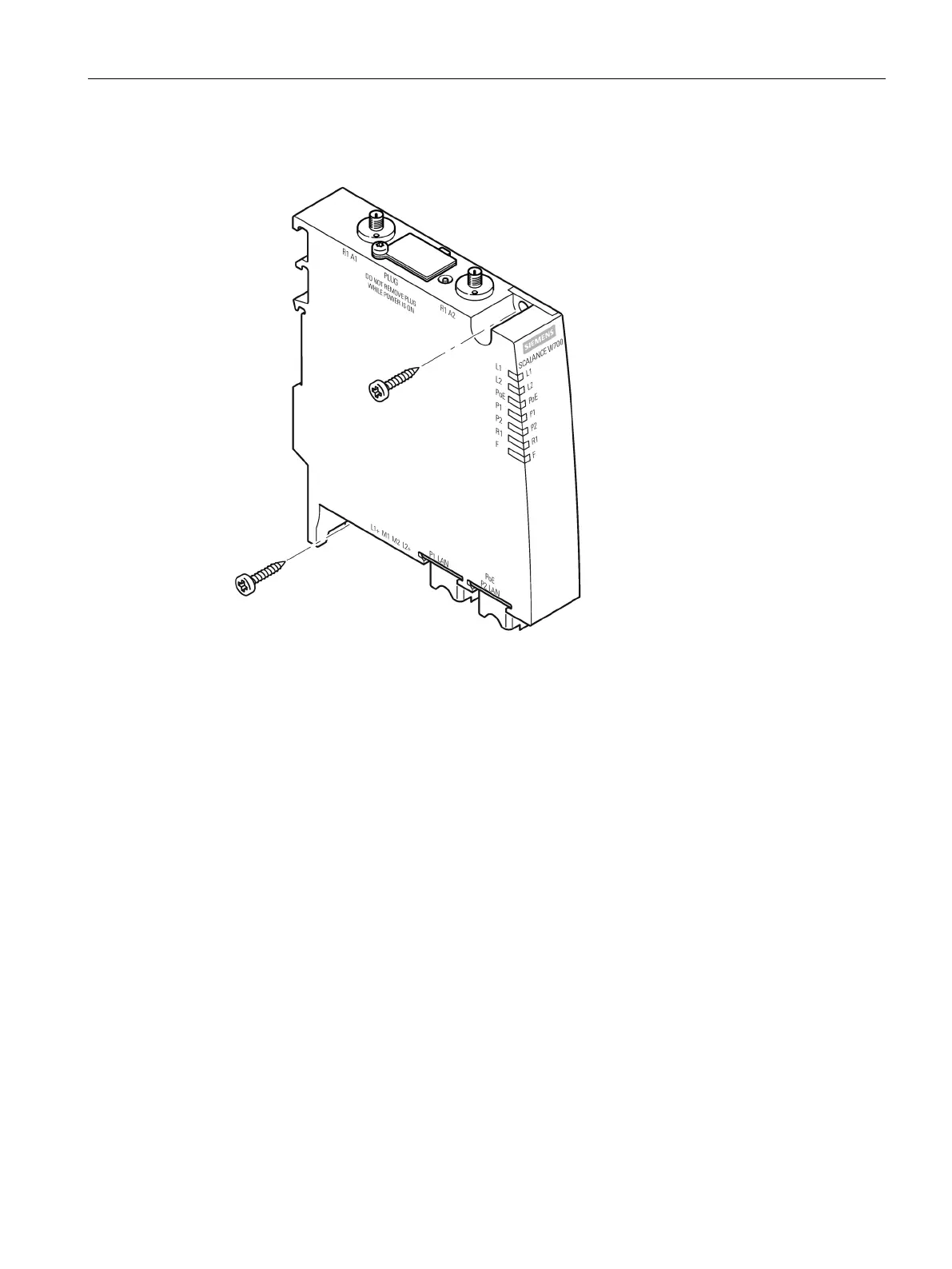

2. Secure the device to the wall with two screws (M4). The screws are not supplied with
the device.
The type and length of the screws depend on the type of wall.
3. Mount the connecting cables and the antenna, see section "Connecting up (Page 35)".
