Connection
5.4 Antenna connectors
SCALANCE W774-1 /W734-1
Operating Instructions, 07/2020, C79000-G8976-C325-14
43
5.4 Antenna connectors

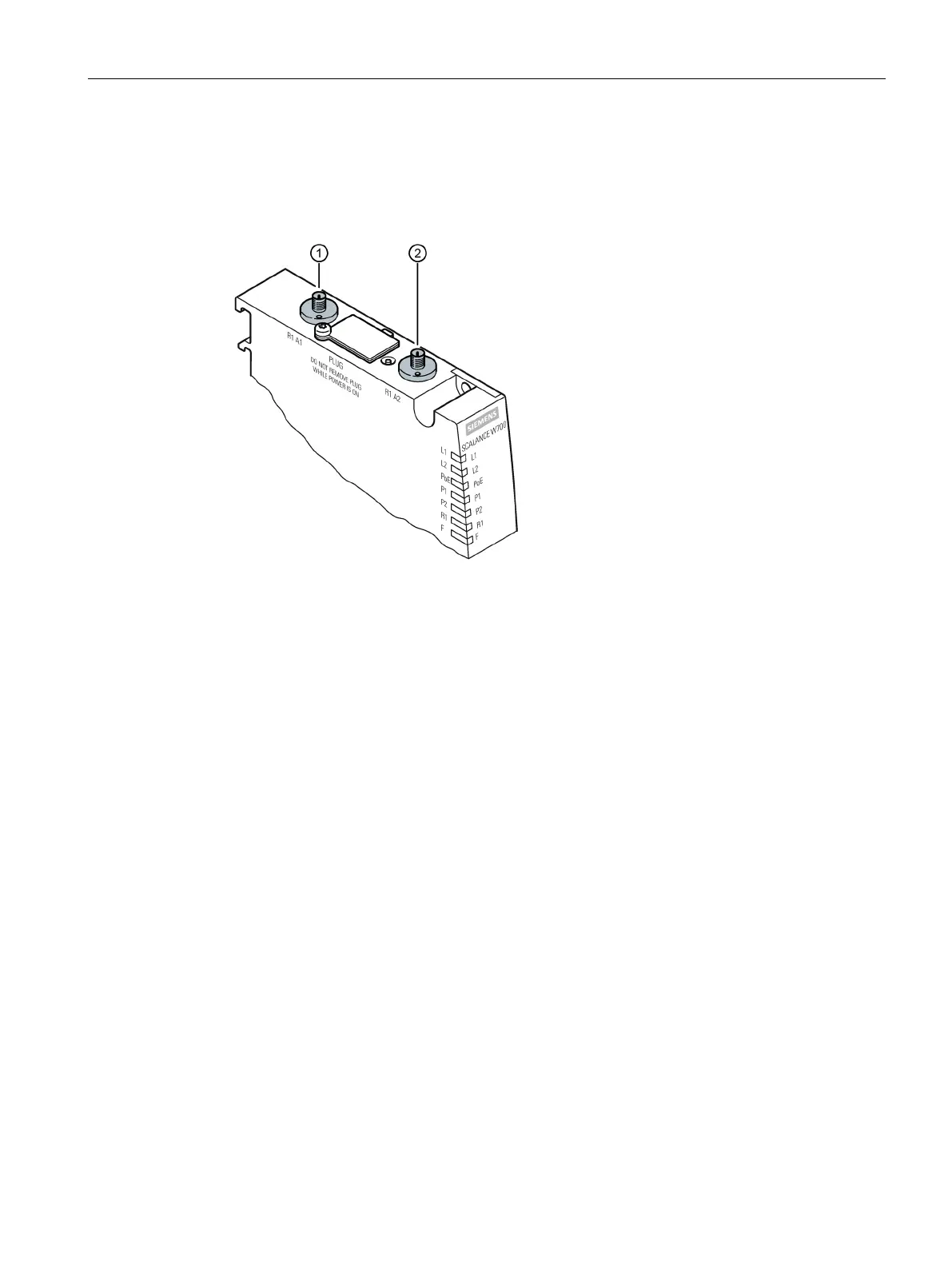

The SCALANCE W774/W734 has two antenna connectors of the type R-SMA located on
the top of the device.
①
Antenna connector R1 A1
②
Antenna connector R1 A2
