Position and assignment
/
/
0
0

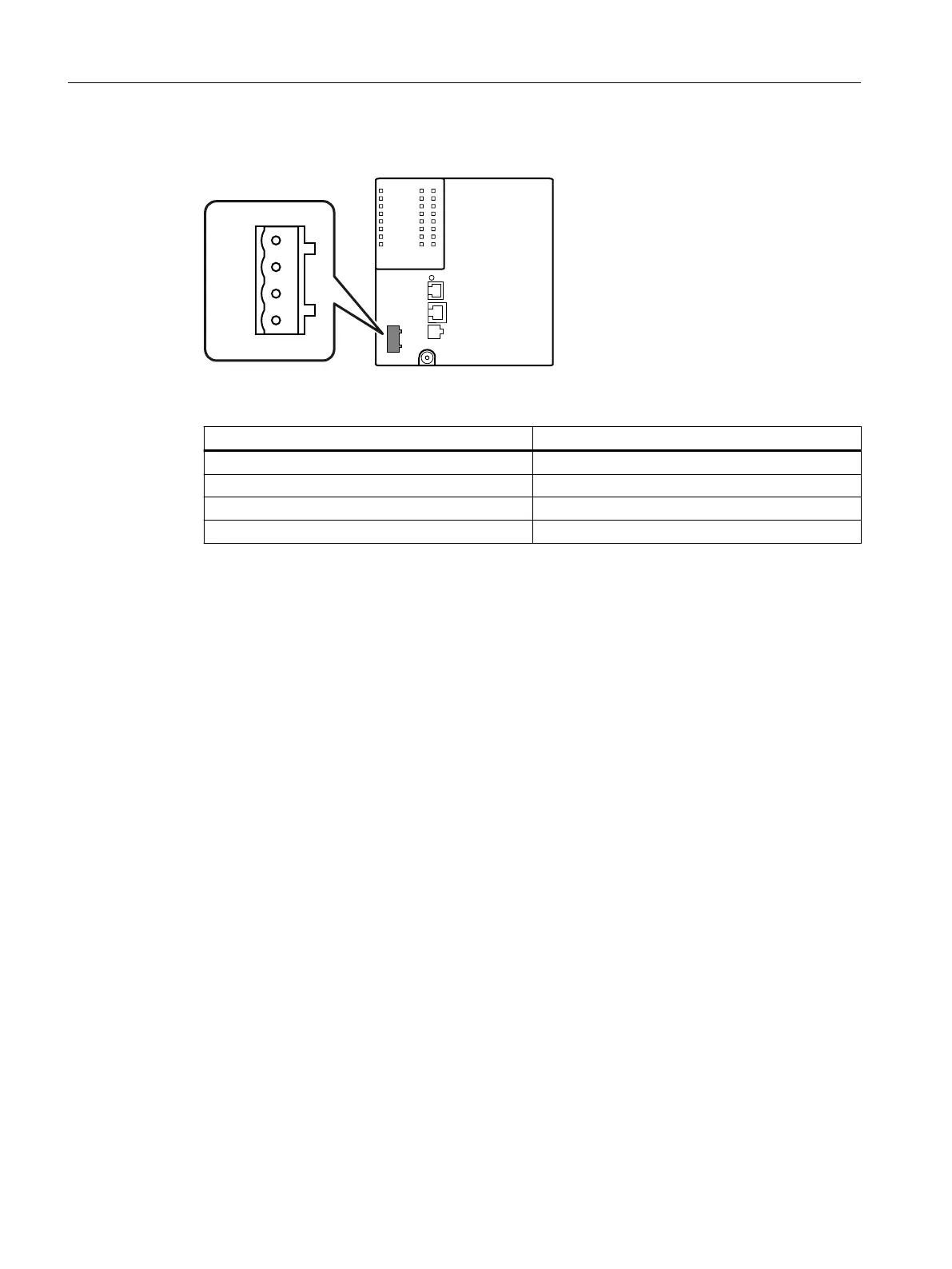

Figure 6-1 Position of the power supply on the SCALANCE XM-400 and the assignment of the terminal
block
Contact Assignment
L1+ 24 VDC
M1 Ground
M2 Ground
L2+ 24 VDC
Connecting up
6.3 Power supply
SCALANCE XM-400
58 Operating Instructions, 03/2021, C79000-G8976-C306-10
