Siemens SIMATIC S7-200 Series User Manual

Ethernet Gateway for SIMATIC MPI/PROFIBUS Driver
GP-Pro EX Device/PLC Connection Manual
5

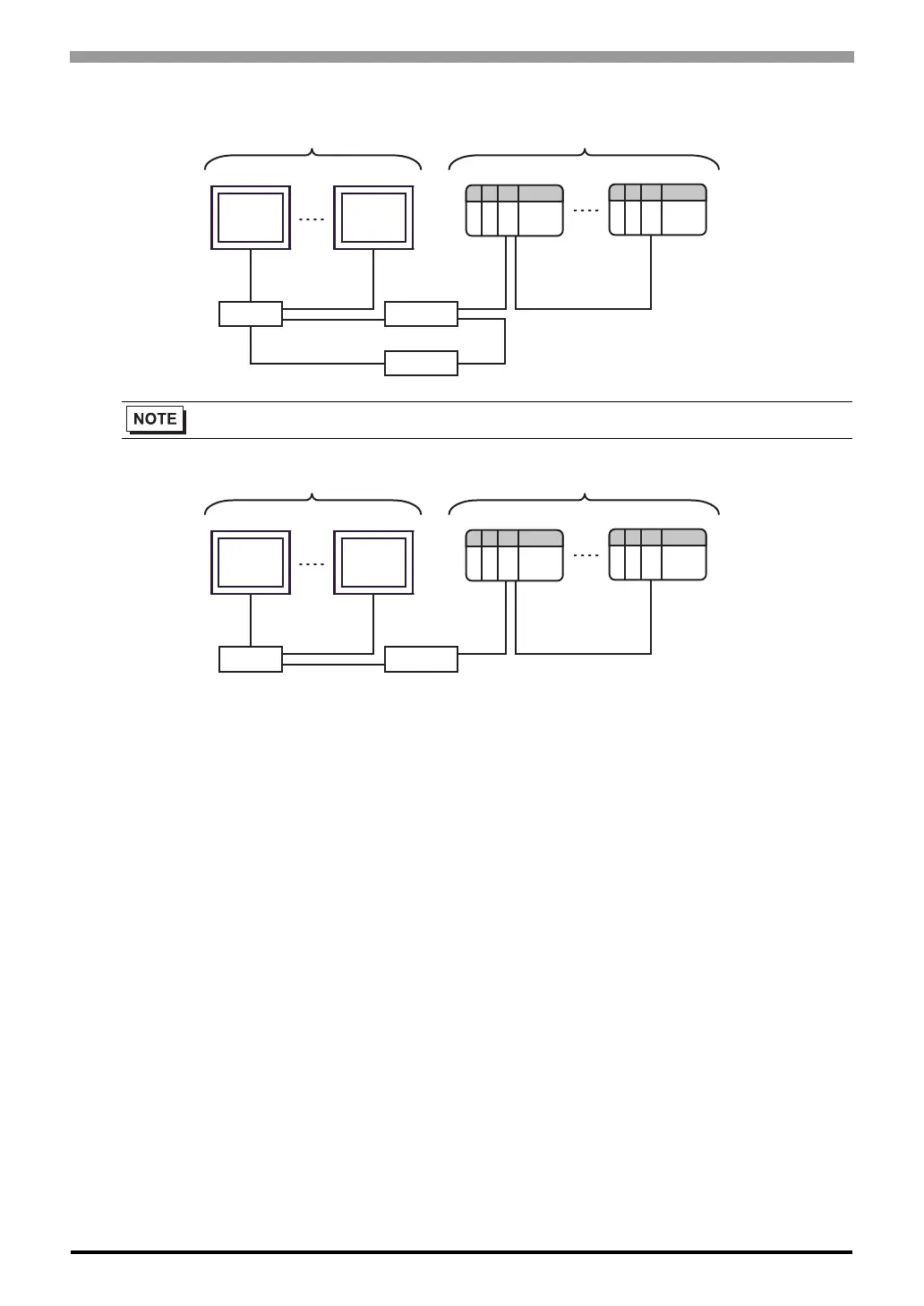

 n:m Connection
or
• It is able to connect only one adapter to one Display.
Display
External Device
Display
External Device
Adapter
Adapter
HUB
Maximum Display Units depends
on the External Device CPU
Maximum number of Display: 12
Display
External Device
Display
External Device
Adapter
HUB
Maximum number of Display: 7 Maximum number of Display: 12

Siemens SIMATIC S7-200 Series Specifications

General

Communication	PROFIBUS DP
Protocols	PROFIBUS-DP
Configuration	STEP 7 Micro/WIN programming software
Communication Ports	RS-485 port
Power Supply	24 V DC or 120/230 V AC
Operating Temperature	0°C to 55°C
