Creating CFC charts
SIRIUS Motor Starter PCS 7 Library "V7.1+SP2"/ "V8 Migration V8.0+SP1"
20 Getting Started, 08/2013, A5E02897539020A/RS-AA/005
Step Action

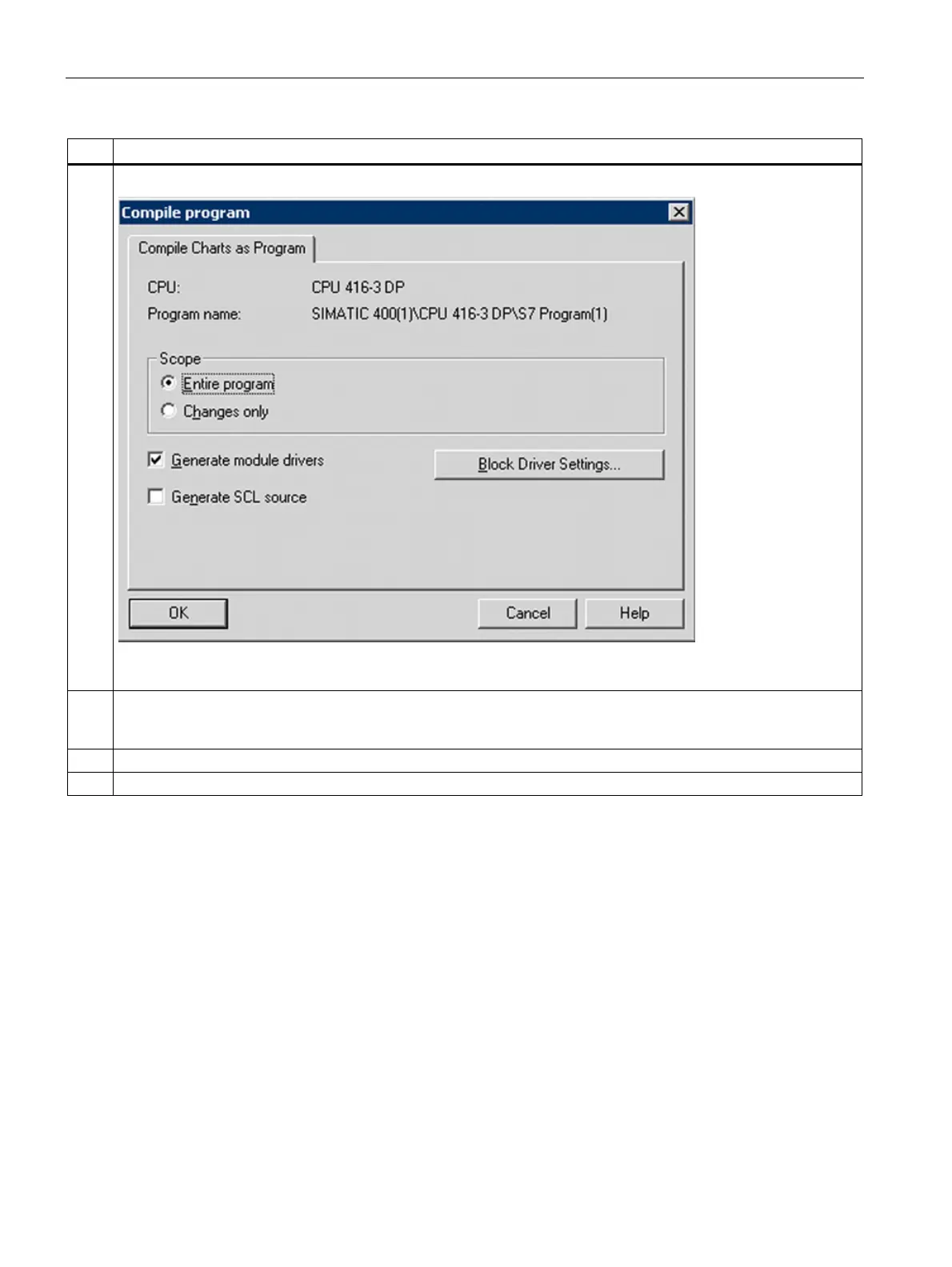

4 Compile the charts using the "Generate module driver" function.
Compile program/download PLC
5 Make the required interconnections of the blocks. You can find the description in:
"SIRIUS Motor Starter PCS 7 Library V7.1+SP2" or "SIRIUS Motor Starter PCS 7Library V8 MigrationV8.0+SP1" >
"Module drivers of motor starters" > "Driver blocks"
6 Compile the charts again using the "Generate module driver" function.
7 Download the charts.
