Configuration of a faceplate
SIRIUS Motor Starter PCS 7 Library "V7.1+SP2"/ "V8 Migration V8.0+SP1"
28 Getting Started, 08/2013, A5E02897539020A/RS-AA/005
Procedure
Table 5- 1 Steps
Step Action
1
• Open the component view of the project "SIMATIC PC Station > WinCC Application > OS(1)".
• Open the popup menu with a right click. Select the "Compile" menu command.
2

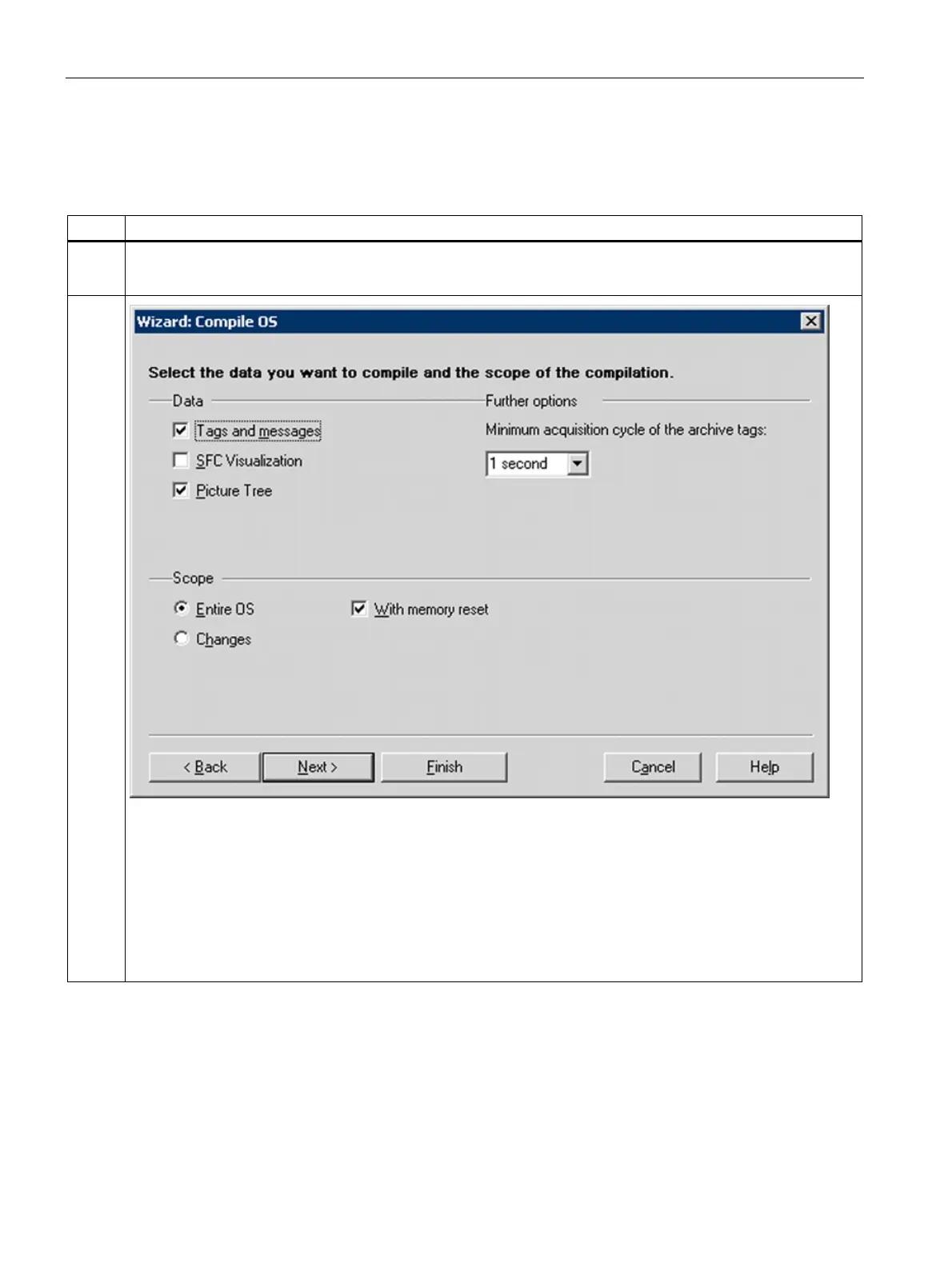

Wizard: Compile OS
In "Wizard: Compile OS", select the following options:
• "Tags and messages"
• "Picture Tree"
• "Entire OS"
• "With memory reset"
Then click the "Next > Compile" buttons.
