CP340/CP341/CP440/CP441 Communication and Programming
Entry-ID: 88867653, V1.0, 02/2014

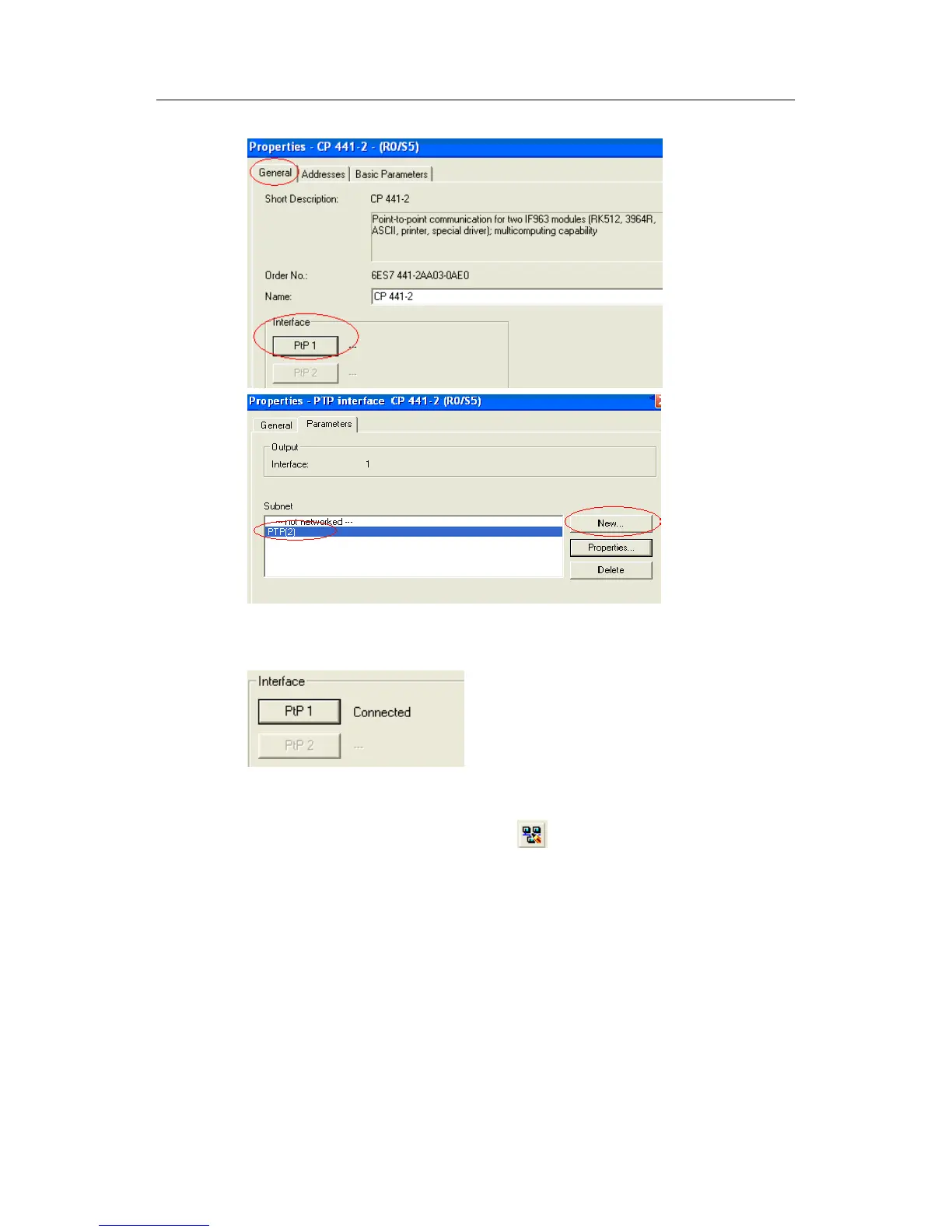

Fig. 46: Create new PtP network
PtP 1 interface is in connection status at this moment. PtP 2 has the same
configuration, which is not introduced for it is not used in this example.
Fig. 47: Interface status after PtP is connected
6. Then open the configure network icon in the hardware configuration
screen to enter the network configuration interface.
Click to select the CPU in this station, and user may see that communication
connection table appears under the page. Right-click the first line to insert new
connection, and the connection is in "point-to-point connection" type.
