CP340/CP341/CP440/CP441 Communication and Programming
Entry-ID: 88867653, V1.0, 02/2014

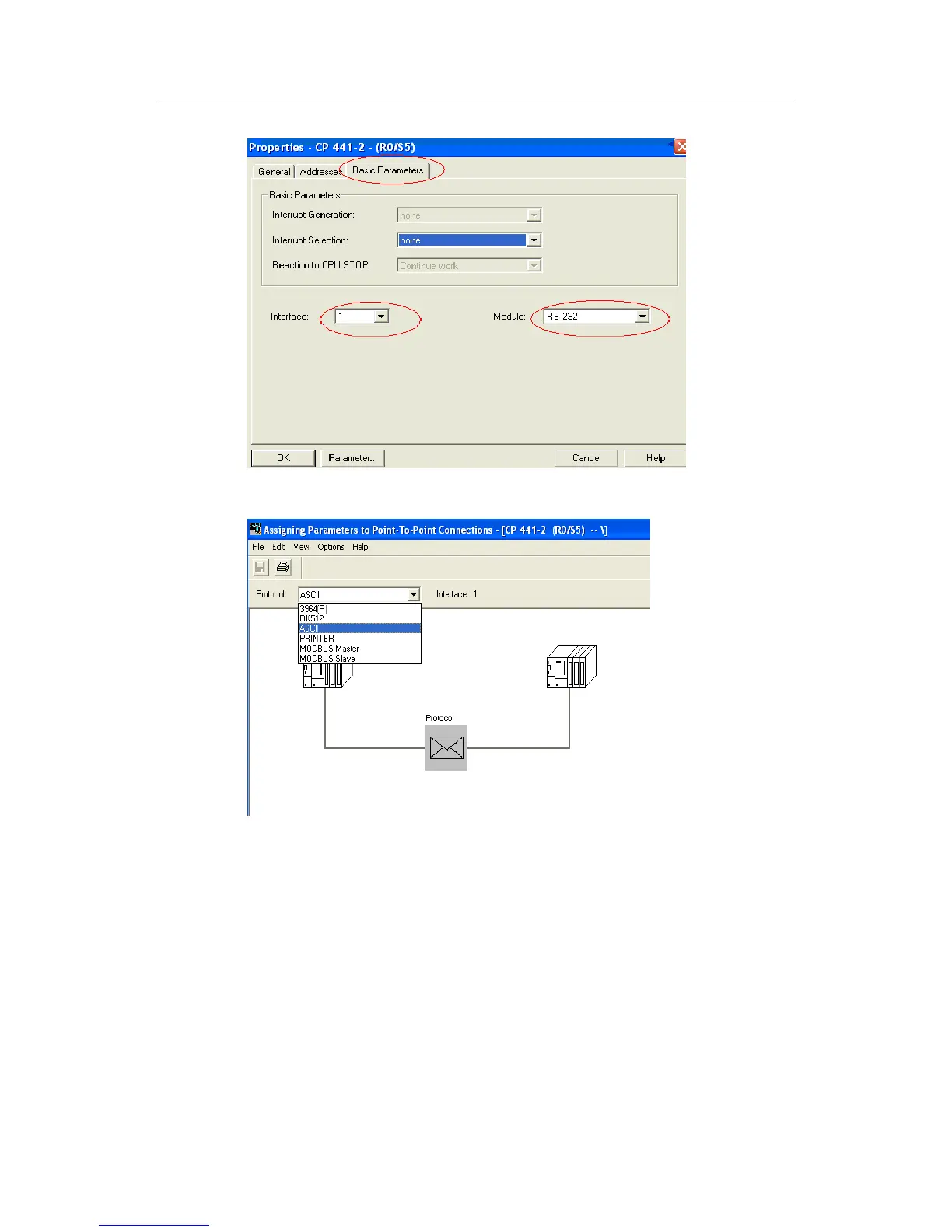

Fig. 44: Setting of basic interface parameters
3. Click Parameter, and configure CP441-2 parameters.
Fig. 45: Protocol selection
4. Double-click the envelop icon under Protocol to configure ASCII communication
parameters. The set communication parameters shall be the same as those of the
communication partner, and the others shall be in default values. The specific
operations may be seen in the text above, which are not repeated here.
5. After completing configuration, return to Sub-module interface type selection
interface, and click General to enter Interface ->PtP 1 and create a new PtP
subnet, and then click OK to confirm.
