4.1.4 Equipment connection
Use standard RS232C cable to connect serial ports of CP340 and computer. The
detailed cable connecting method may be seen in CP340 Manual - Chapter B:
Connecting cables.
4.2 ASCII protocol communication of CP341
4.2.1 Hardware catalog
PS 307
6ES7 307-1EA00-0AA0
CPU 315-2DP
6ES7 315-2AG10-0AB0
MMC
6ES7 953-8LG11-0AA0
CP341
6ES7 341-1AH01-0AE0
4.2.2 Configuration

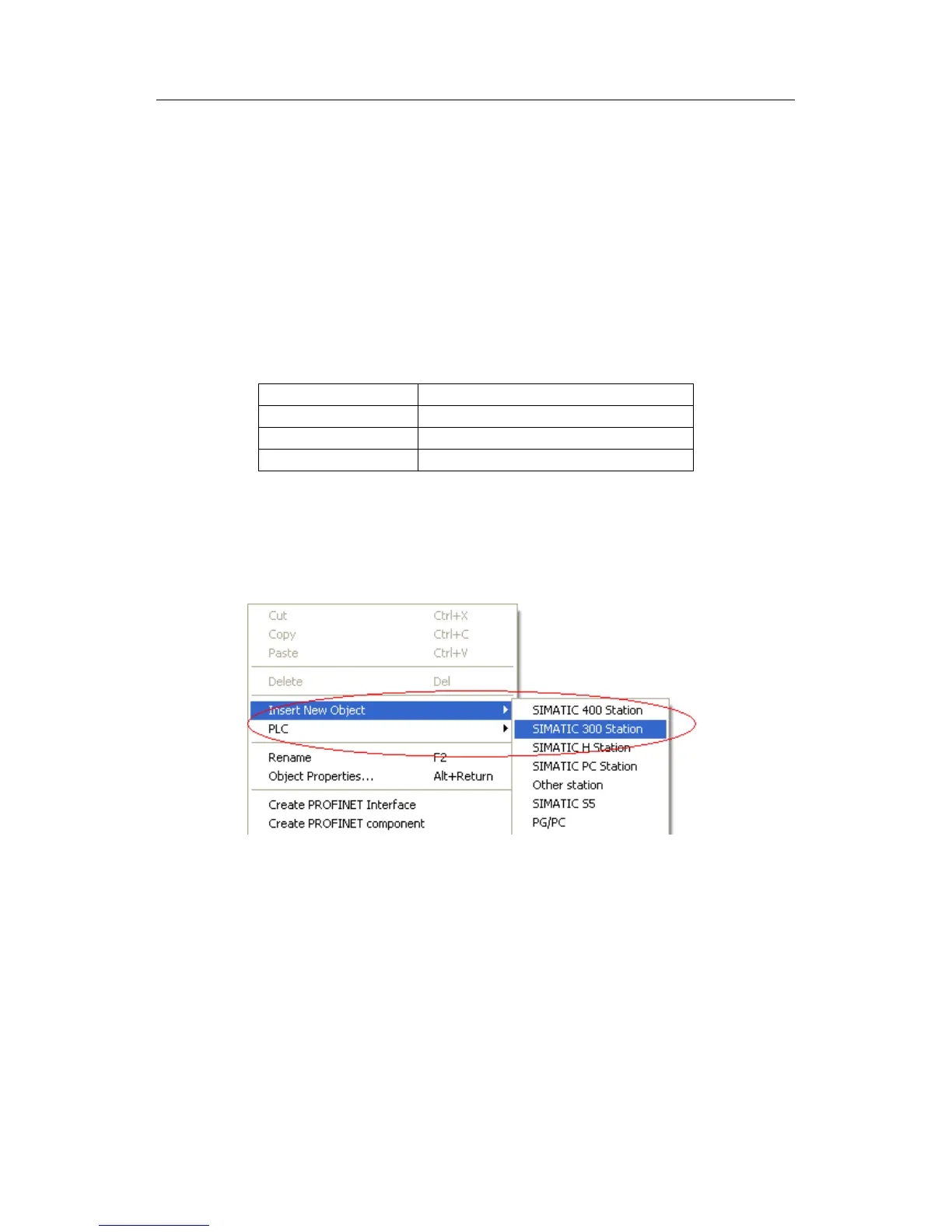

1. Open the project ptp created above, and right-click the project name, select
Insert New Object->SIMATIC 300 Station to change the station name to CP341
ASCII.
Fig. 19: Insert S7-300 station
2. Double-click Hardware to enter the hardware configuration interface and insert
RACK, CPU315-2DP and CP341.
