Note

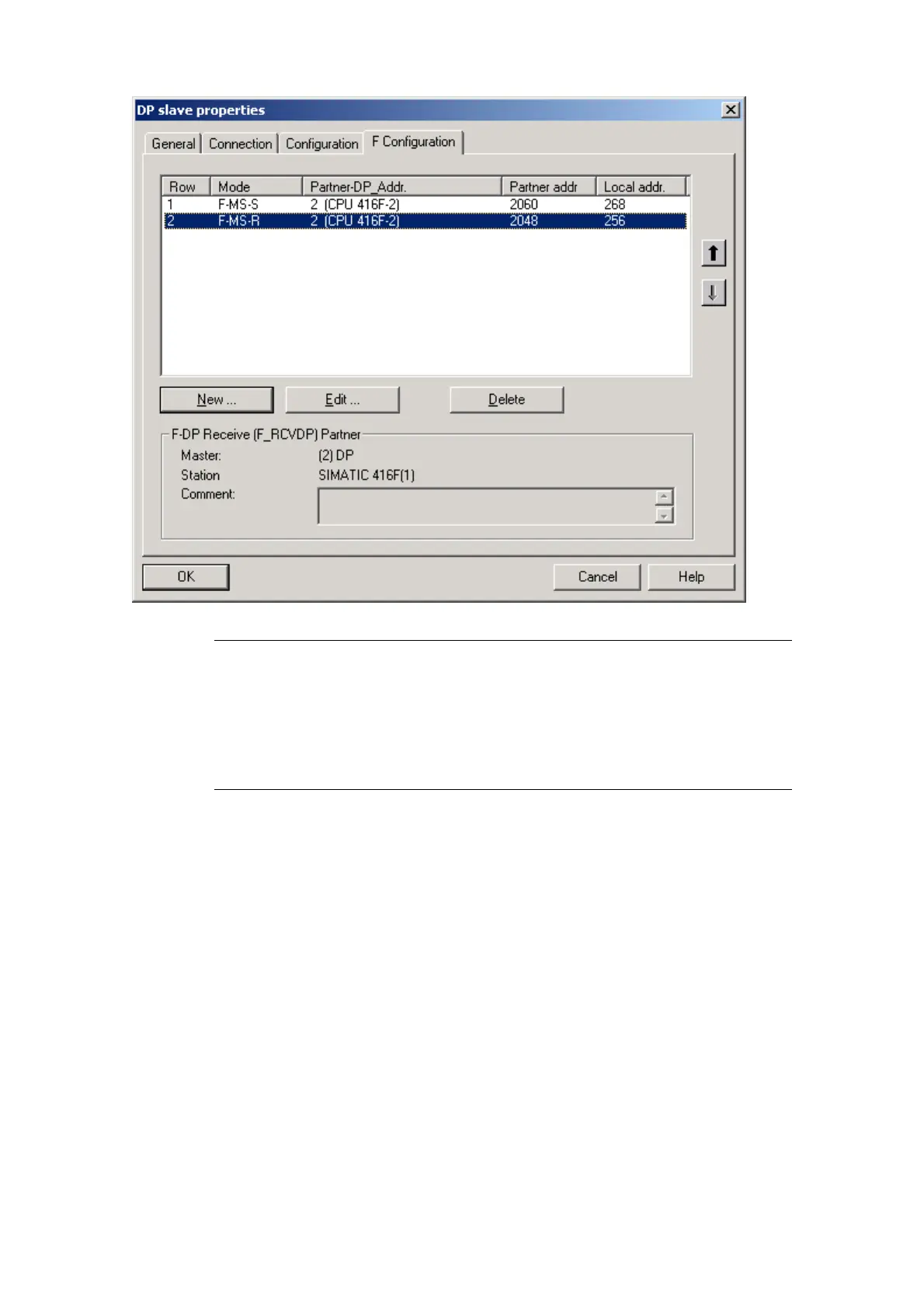

In the object properties of the I-slave, entries are automatically made in the
"Configuration" tab based on the configuration in the "F-Configuration" tab. These
entries must not be modified. Otherwise, safety-related master to I-slave
communication is not possible.
The assigned address areas on the DP master and I-slave can be seen in the
"Configuration" tab.
Additional Information
You will find a description of the parameters in the context-sensitive online help of
the "F-Configuration" tab.
For information on programming safety-related master to I-slave communication,
refer to Section 1.2.6.
For information on master to I-slave communication, refer to the STEP 7 online
help.
For information on the address areas, process image partitions, and supported
interrupt OBs, refer to the Technical Specifications of the F-CPU you are using.
