3.3 Replacing the Mass Storage
86 Digital Fault Recorder, SIMEAS R/SIMEAS R-PMU, Maintenance Manual
E50417-H1074-C364-A2, Release 11.2009
3.3 Replacing the Mass Storage
3.3.1 Replacing a 2.5” Flash Disk with a 2.5” Flash Disk
 Open the device as described in chapter 3.2.
 Detach the CPU board by pushing the black locking levers right until the levers unlatch from
the PCB. Flip both locking levers forward simultaneously (approx. 45°) until the levers snap
into the second position on the PCB (see Figure 3-7).

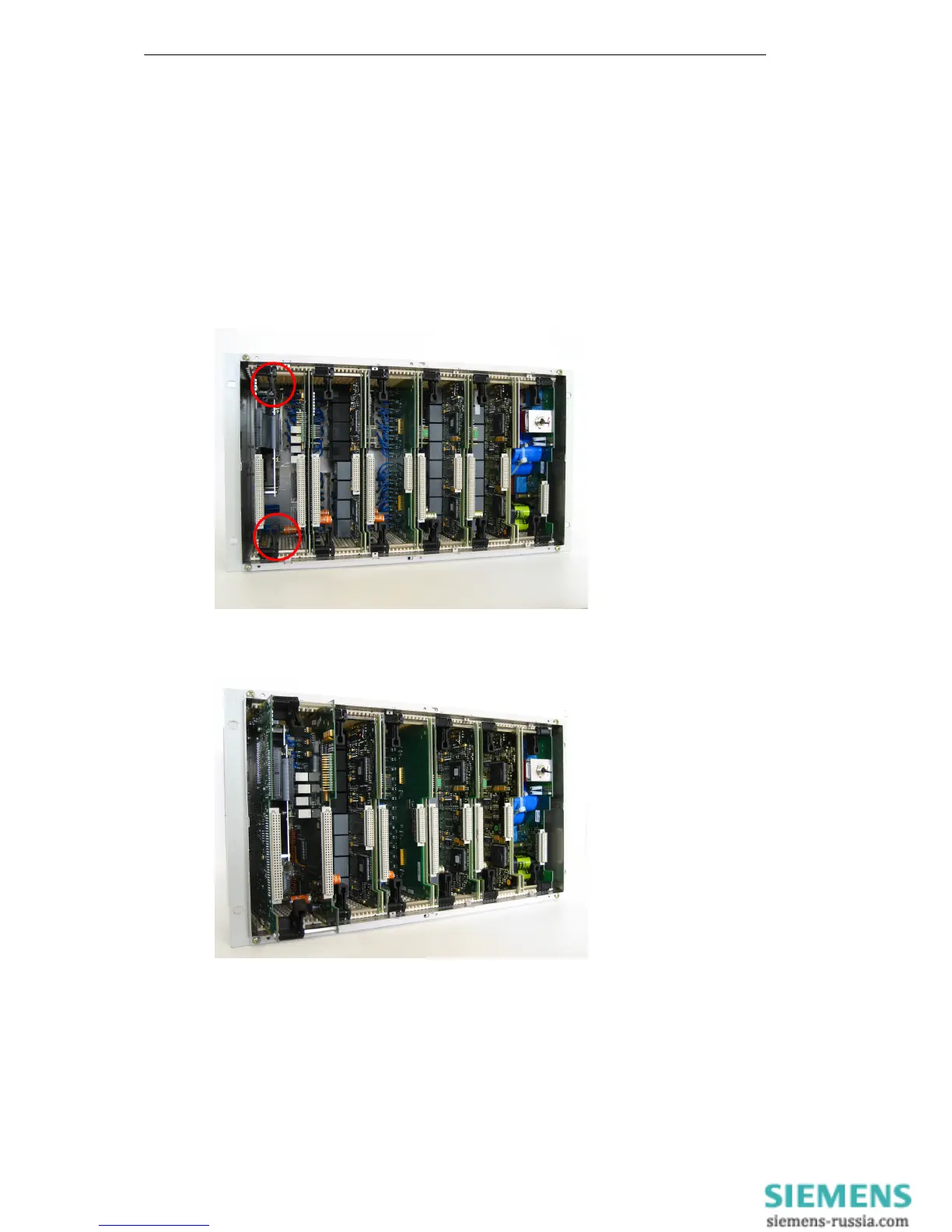

Figure 3-7 Deblocking the CPU module (view with 2.5” flash disk on CPU module)

Pull the CPU module forward (see Figure 3-8).
Figure 3-8 Pulling the CPU module out (view with 2.5” flash disk on CPU module)
