Procedure
1. Determine the Article No. (order number) ① and the serial number ② of the motor from the
rating plate.
+
SIMOTICS 1P 1FK2206-2AF10-1MB0
M
0
6 Nm
Brake 24 VDC 10 W 13 Nm
Siemens AG, DE-97616 Bad Neustadt Made in Germany
Encoder AM22DQC 662
3 ~ Mot. S YF K9662 3157 01 003
Z:
M
N
5,4 Nm
I
0
4,5 A
I
N
4,15 A
n
max
6000 /min
n
n
3000 /min
U
iN
260 V Th.Cl.155 (F)
IP 64 IC410
RN 000
m: 8 kg


EN6003

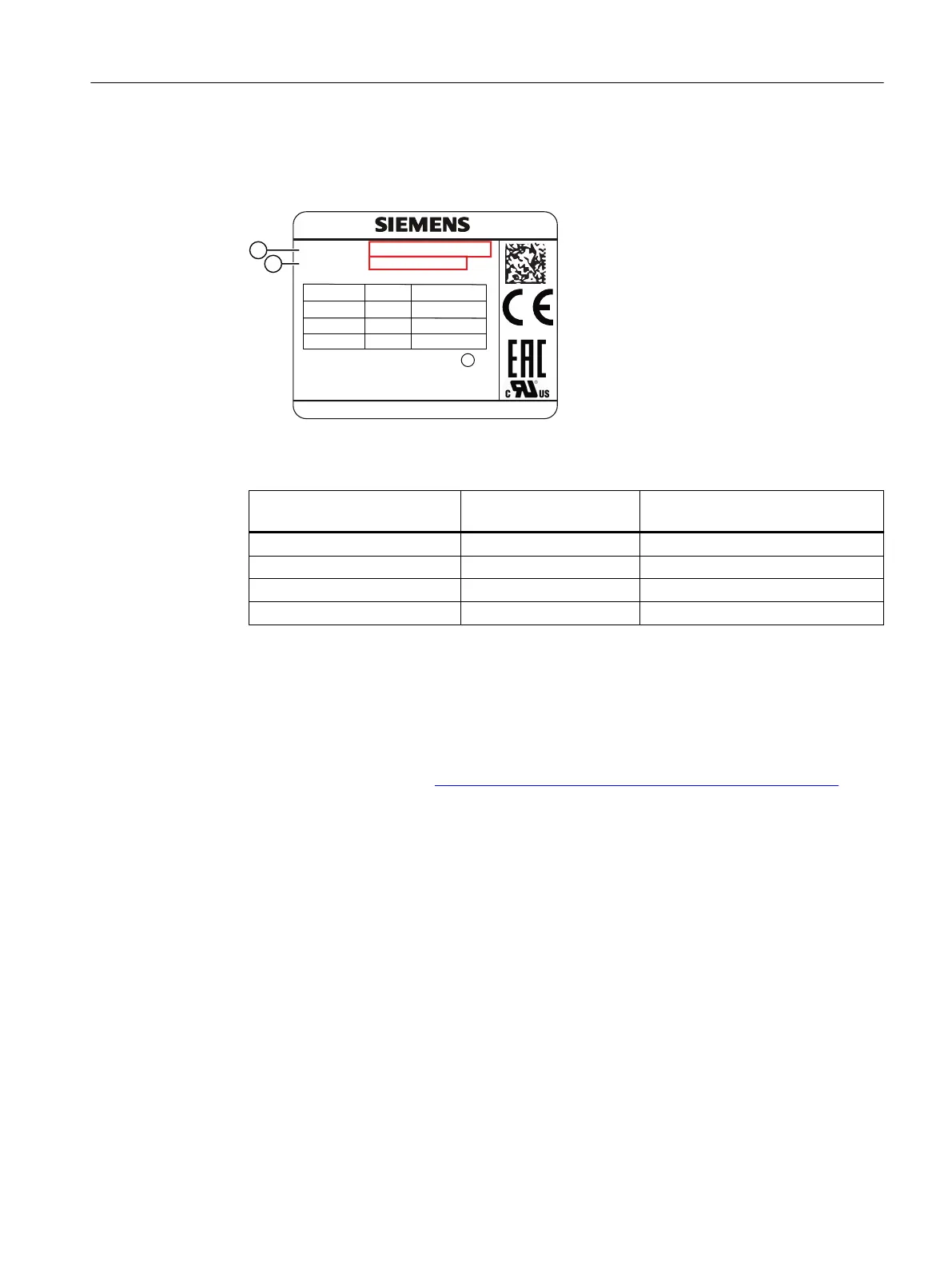

Figure 2-2 Numbers for encoder replacement 1Fx1
2. Refer to the following table for the data of your motor.
Motor Article No. Encoder designation Article No. of the replacement en‐
coder
1F☐2☐☐☐-☐☐☐☐☐-☐S☐☐ AS22DQC 1FY2900-0EB00
1F☐2☐☐☐-☐☐☐☐☐-☐M☐☐ AM22DQC 1FY2901-0EB00
1F☐2☐☐☐-☐☐☐☐☐-☐B☐☐ AS26DQC 1FY2902-0EB00
1F☐2☐☐☐-☐☐☐☐☐-☐C☐☐ AM26DQC 1FY2903-0EB00
3. Call your local Siemens contact person:
Spare part Hotline for customers from EU: +49 911 895 7222
Spare part Hotline for customers from Asia: +86 400 810 4288
Spare part hotline for customers from America: +1 800 333 7421
You can order the replacement encoder directly from this person.
You can 󹪝nd your regional contact person here:
Regional contact persons (https://www.automation.siemens.com/aspa_app?lang=en)
❒
2.3.2 This is how you order an encoder through the SIEMENS spare parts service
The chapter describes how you can order a new encoder through "Spares on web" (sow).
Description
2.3 How do you order a replacement encoder?
Encoder replacement for SIMOTICS S-1FK2 and S-1FT2
Service Manual, 07/2022, A5E52211160B AA 23
