Siemens SIMOTICS S-1FK2 Service Manual

2.4.2.2 Downloading the electronic rating plate from the Internet and saving to a CF card
Precondition
You require:
• An electronic storage medium
For SINAMICS systems For SINUMERIK systems
• A PC with CF card reader
• A CF card
• USB data storage medium
• An Internet connection
Procedure
The data contained in the electronic rating plate varies according to the encoder type.

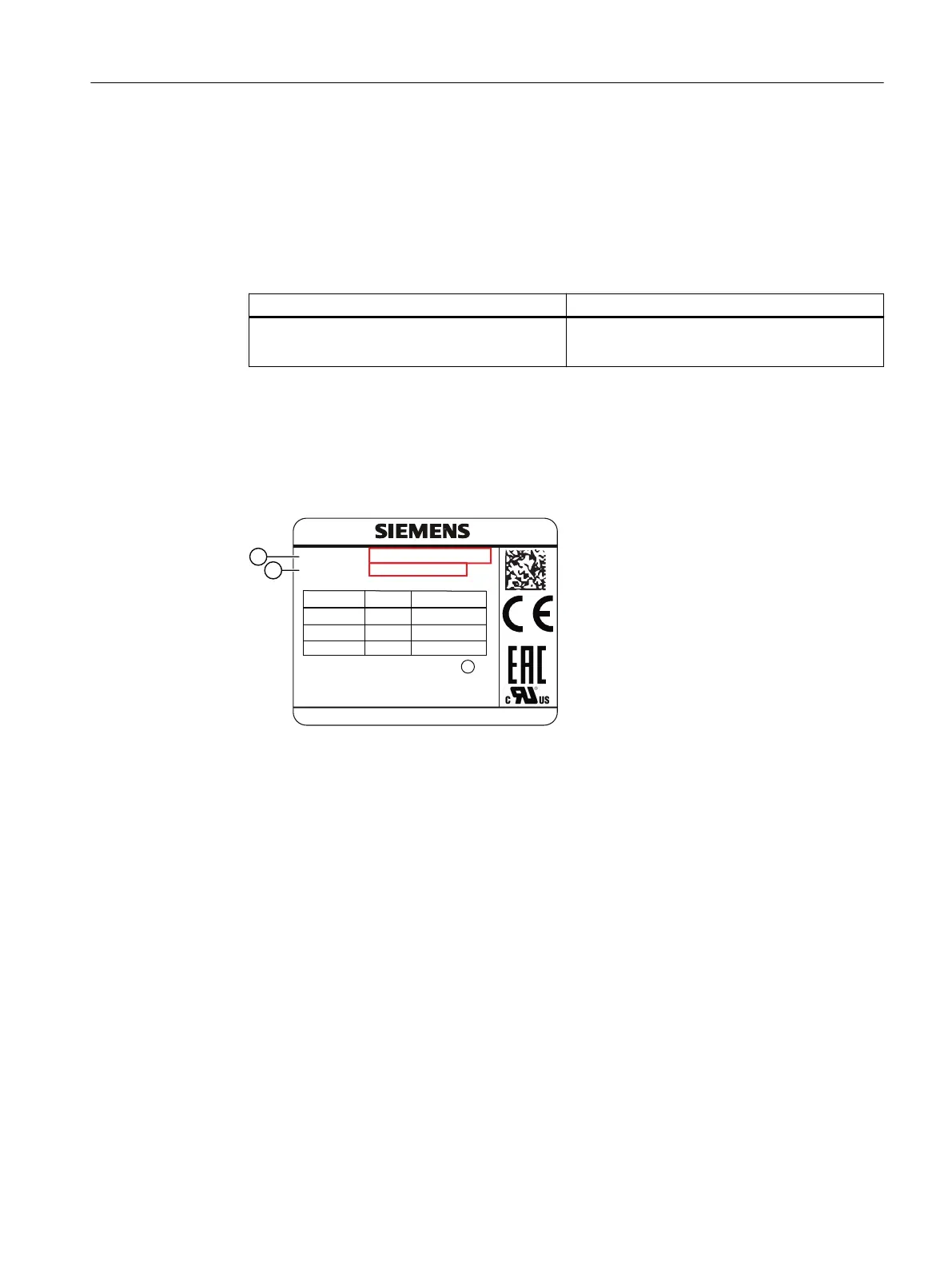

1. Identify the serial number of the motor from the rating plate.
+
SIMOTICS 1P 1FK2206-2AF10-1MB0
M
0
6 Nm
Brake 24 VDC 10 W 13 Nm
Siemens AG, DE-97616 Bad Neustadt Made in Germany
Encoder AM22DQC 662
3 ~ Mot. S YF K9662 3157 01 003
Z:
M
N
5,4 Nm
I
0
4,5 A
I
N
4,15 A
n
max
6000 /min
n
n
3000 /min
U
iN
260 V Th.Cl.155 (F)
IP 64 IC410
RN 000
m: 8 kg


EN6003
① Article No. (order number) of the motor
② Serial number of the motor
2. Insert the data storage medium (see under requirements) in your PC.
Description
2.4 Encoder replacement variants
Encoder replacement for SIMOTICS S-1FK2 and S-1FT2
Service Manual, 07/2022, A5E52211160B AA 47
