Electrical connection
Explosion-protected machines
56100000002002, 01/2016
119
Terminal board
Conductor
cross-
section
[mm²]
Bend down the cable
lug for the connection!
1MA618.
… 10
1MA620.
… 35

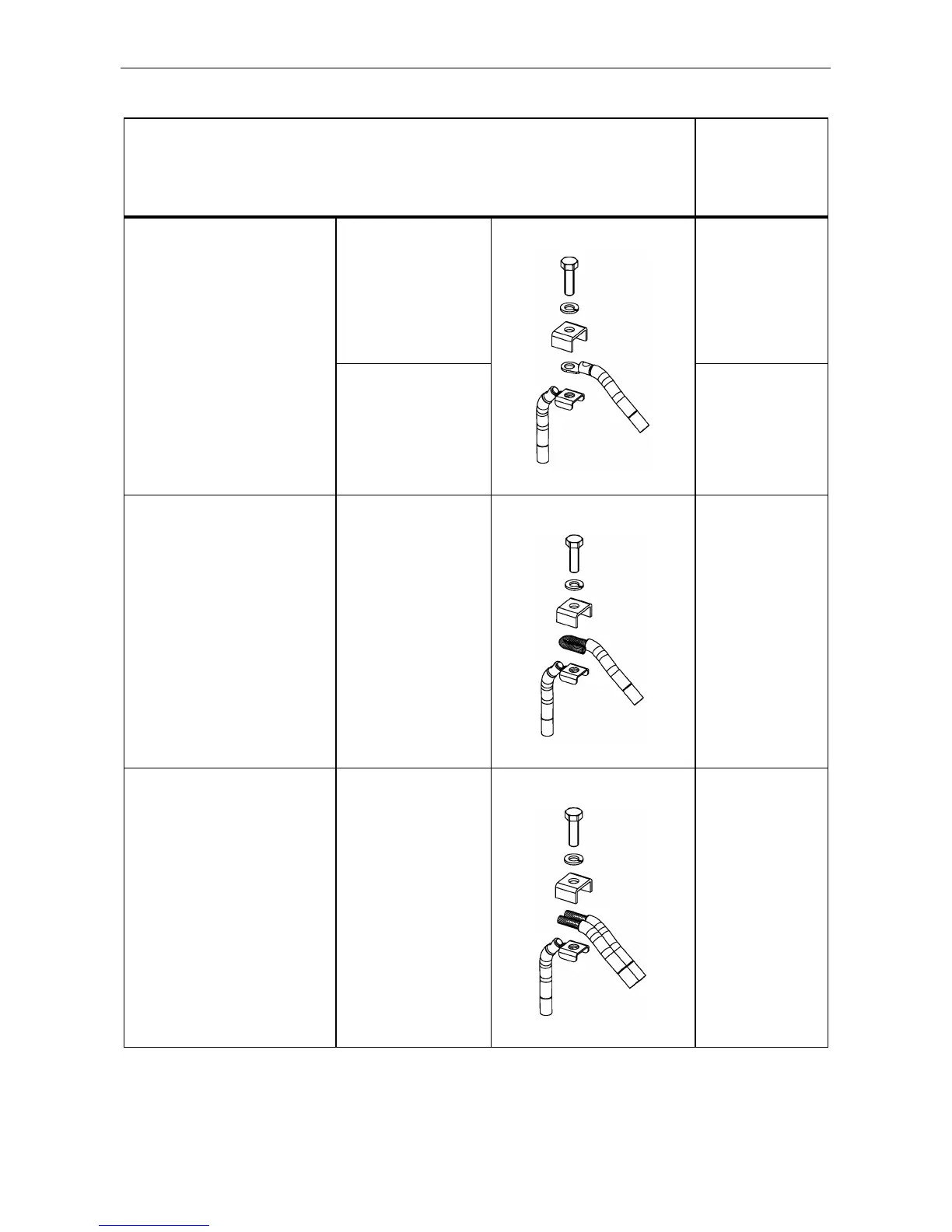

Connection of an indi-
vidual conductor with
terminal clamp
1MA618. ... 20.
… 25
Connection of two
conductors of the same
thickness with terminal
clamp
1MA618. ... 20.
… 25
