Interfaces
3.4 PROFIBUS DP interfaces
SIMOTION C
Operating Instructions, 02/2012
43
Interface positions
The following figure shows the mounting position and the designation of the interfaces on the
module.




;




;'303,
;'3
6,(0(16
;
;
; ;
;;
;
;
'3
'303,
&
05(6
6723
581

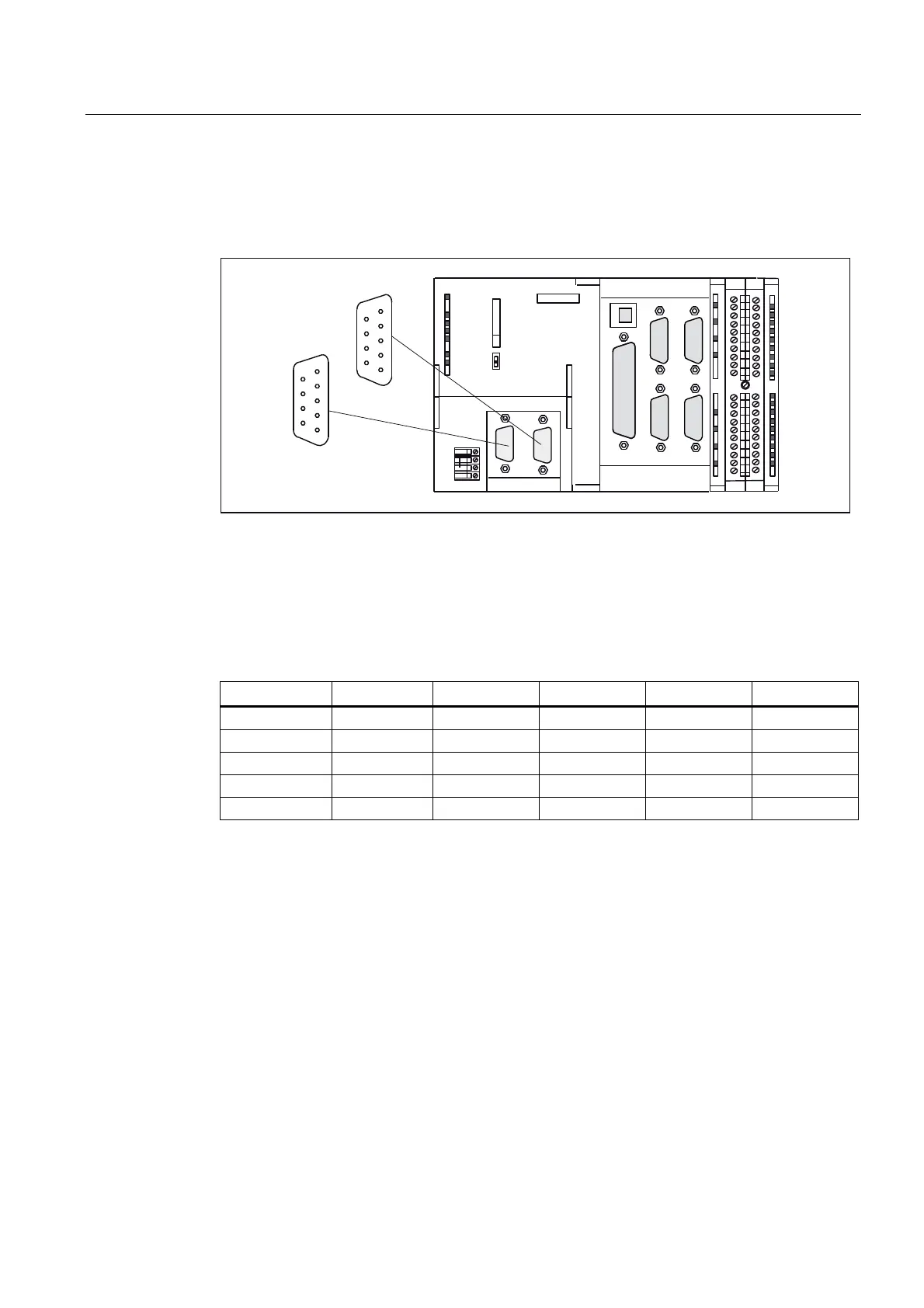

Figure 3-4 Position of connectors X8, X9
Interface assignments
Designation: X8, X9 DP1, DP2/MPI Type: 9-pin Sub-D socket connector
Table 3- 4 X8, X9 interface assignments
Pin Name Type Pin Name Type
1 Not assigned 6 P5 VO
2 M24 VO 7 P24 VO
3 B I/O 8 A I/O
4 RTS O 9 Not assigned
5 M5 VO
