3.8 I/O interface
SIMOTION C
68 Operating Instructions, 02/2012
3.8 I/O interface
Front connector
Various encoders and actuators can be connected via digital inputs and outputs to the 40-pin
front connector X1 with single-wire connection.
Position of the connector

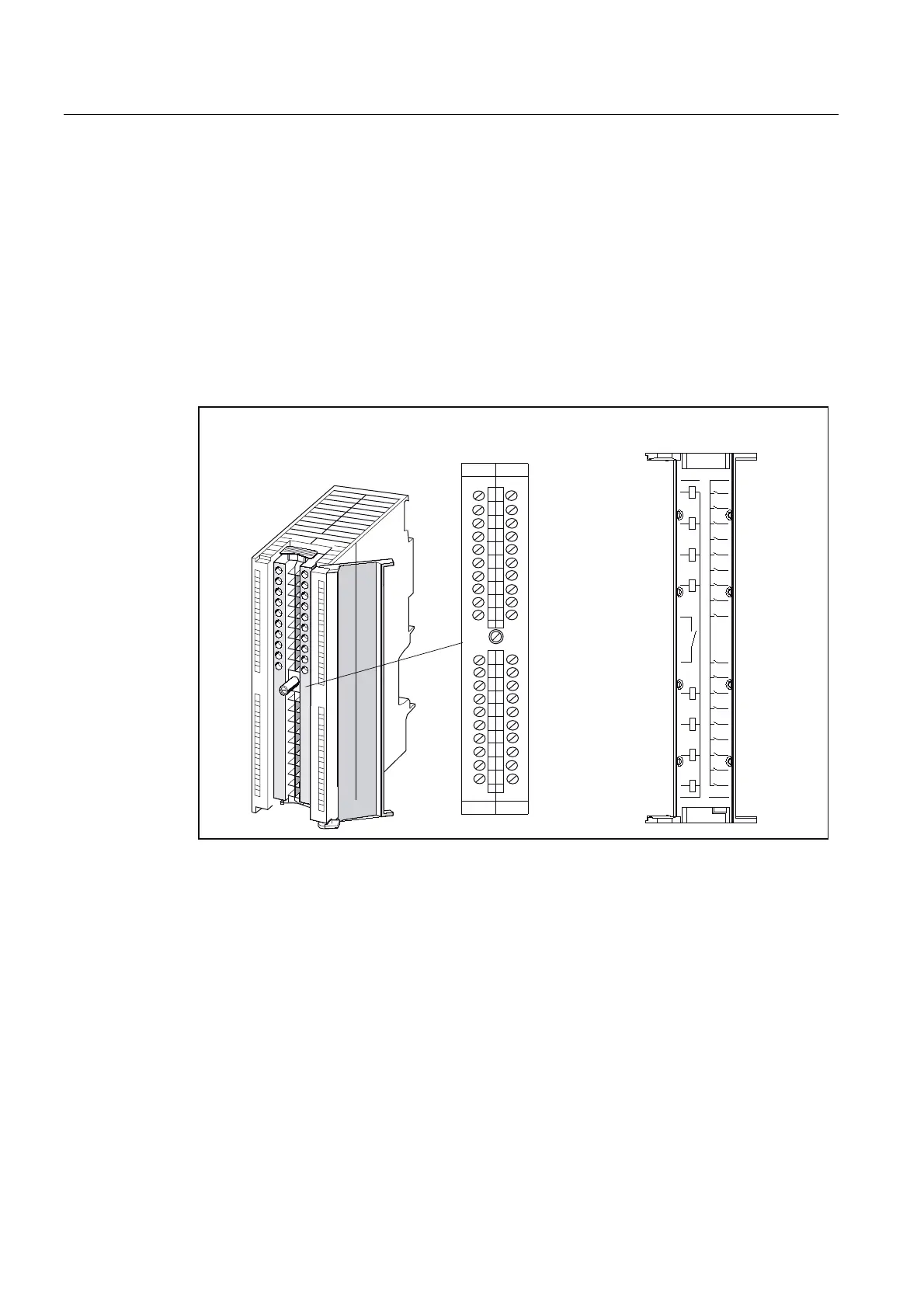

The following figure shows the position of the front connector.
/DEHOLQJRILQQHUGRRU)URQWFRQQHFWRULQZLULQJSRVLWLRQ




























 
0
/

0
/
5'<
;








































Figure 3-13 Position of connector X1
