4.2 Configuring an installation using SIMOTION C modules
SIMOTION C
78 Operating Instructions, 02/2012
4.2 Configuring an installation using SIMOTION C modules
4.2.1 Horizontal and vertical configuration
Design
You can install the rack either horizontally or vertically. The horizontal configuration should
be used if possible.
Permissible ambient temperature
● Horizontal installation: 0 °C to 55 °C
● Vertical installation: 0 °C to 40 °C
+RUL]RQWDOPRXQWLQJ
9HUWLFDODUUDQJHPHQW
6,027,21&DQGWKHSRZHUVXSSO\DUH
DOZD\VDUUDQJHGWRWKHOHIWRUEHORZ

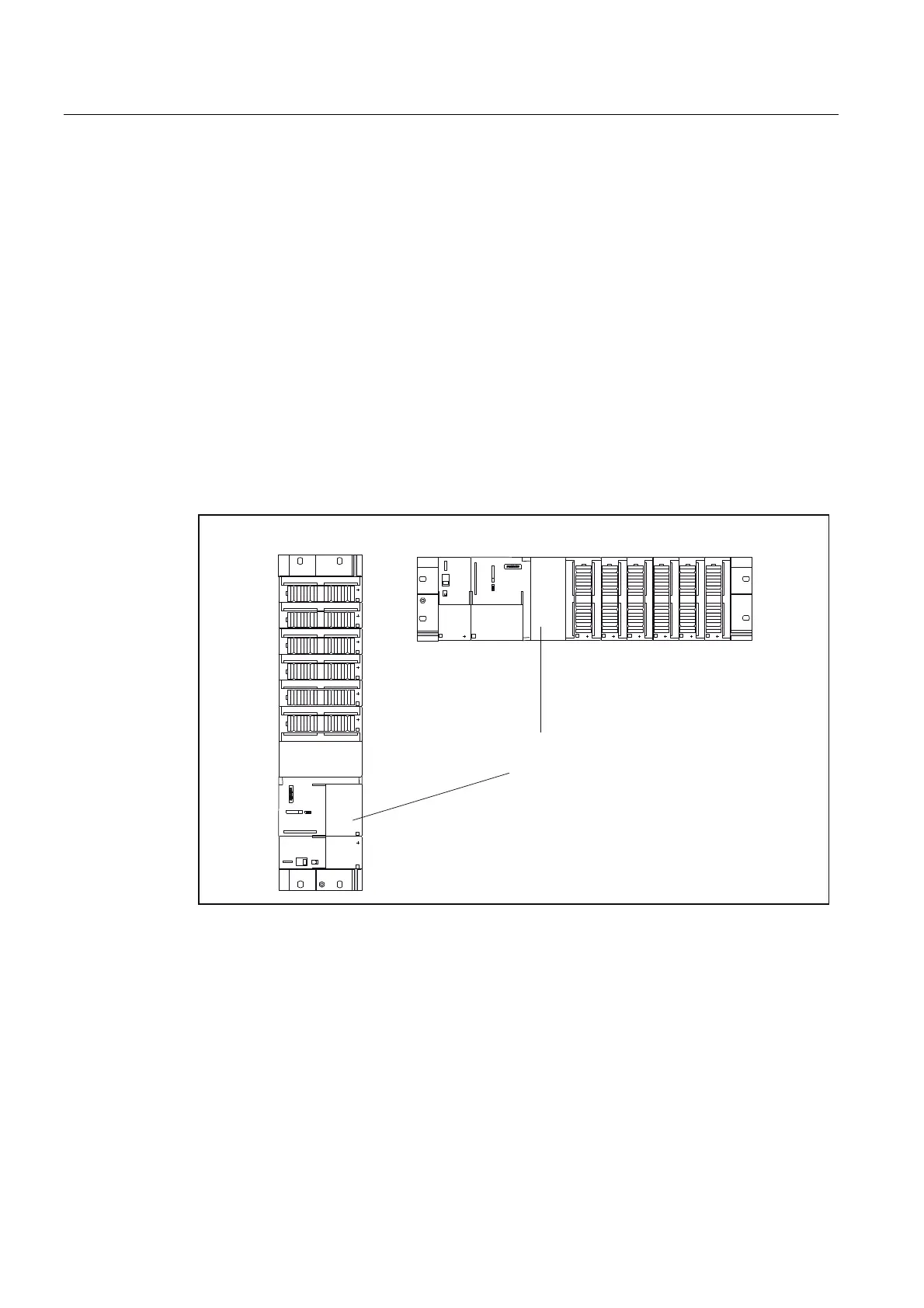

Figure 4-1 Horizontal and vertical configuration
