Assigning DRIVE-CLiQ ports to PROFIBUS addresses
Table 7-3
CX32‑2 PROFIBUS addresses (PROFIBUS Integrated)
DRIVE-CLiQ port PROFIBUS address (PROFIBUS Integrated)
X105 (not for D425-2) 15
X104 (not for D425-2) 14
X103 13
X102 12
X101 11
X100 10
7.4.4 Displaying the topology
Topology of the SINAMICS Integrated
Because the CX32‑2 is connected to the SINAMICS Integrated of a SIMOTION D4x5‑2 via
DRIVE-CLiQ, it is also displayed in the topology tree of the SINAMICS Integrated.
All inserted CX32‑2s are displayed in the SINAMICS Integrated topology without their
subtopology.

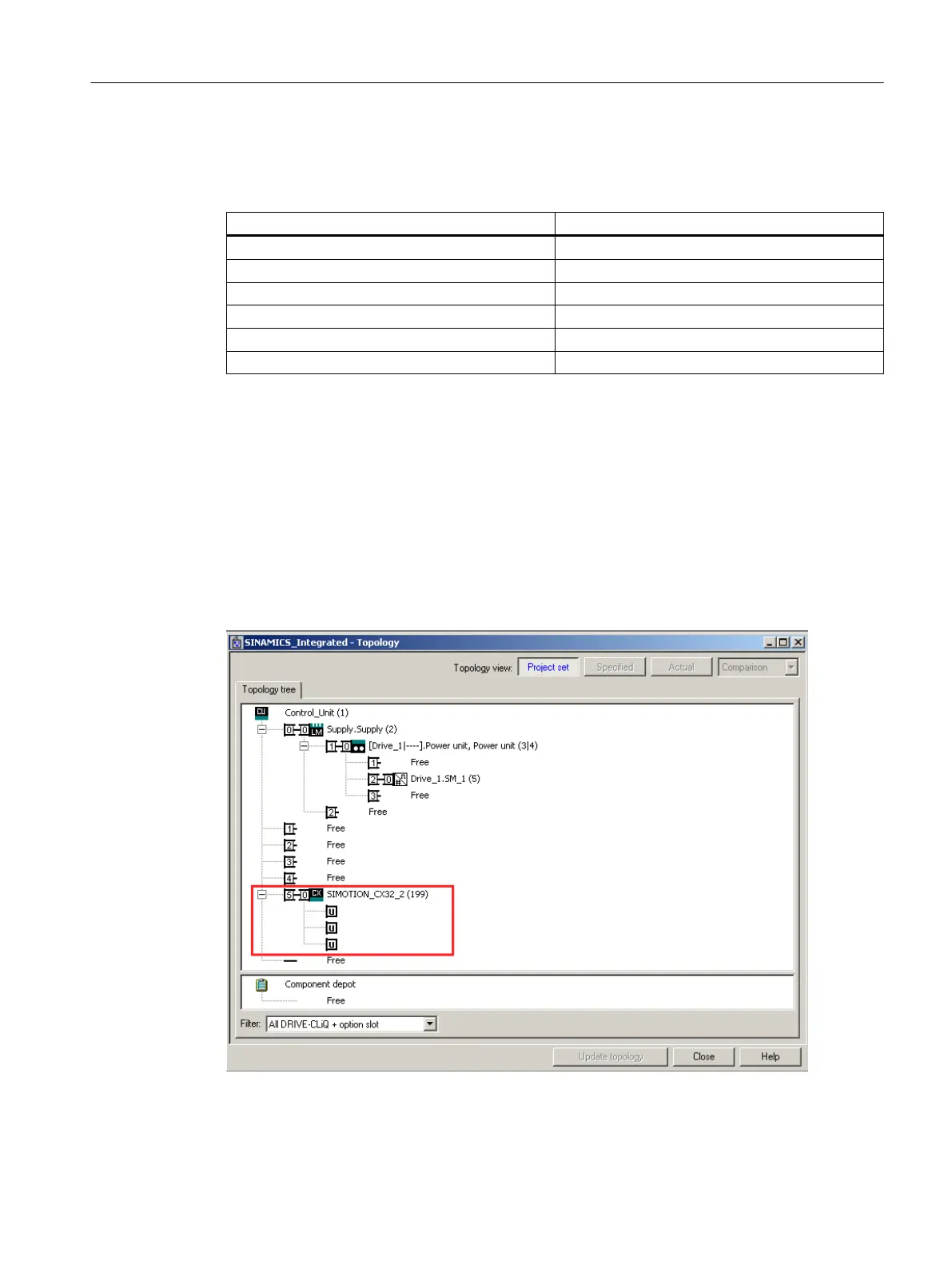

Figure 7-29 SINAMICS Integrated topology (example of D455-2 DP/PN)
Commissioning (software)
7.4 Configuring a CX32-2
SIMOTION D4x5-2
Commissioning and Hardware Installation Manual, 03/2018, A5E33441636B 215
