The CBE30-2 cannot be used with the SIMOTION D4x5-2 DP.
Requirement
Note
The CBE30-2 Ethernet communication board may only be inserted and removed when the
D4x5-2 DP/PN control unit and the CBE30-2 are de-energized.
Procedure
A CBE30-2 is installed in the option slot of the control unit.
8QVFUHZDQGUHPRYH
WKHSURWHFWLYHFRYHU
)L[LQJVFUHZV
01P
7RU[7
,QVHUWDQGVHFXUH
WKHRSWLRQERDUG

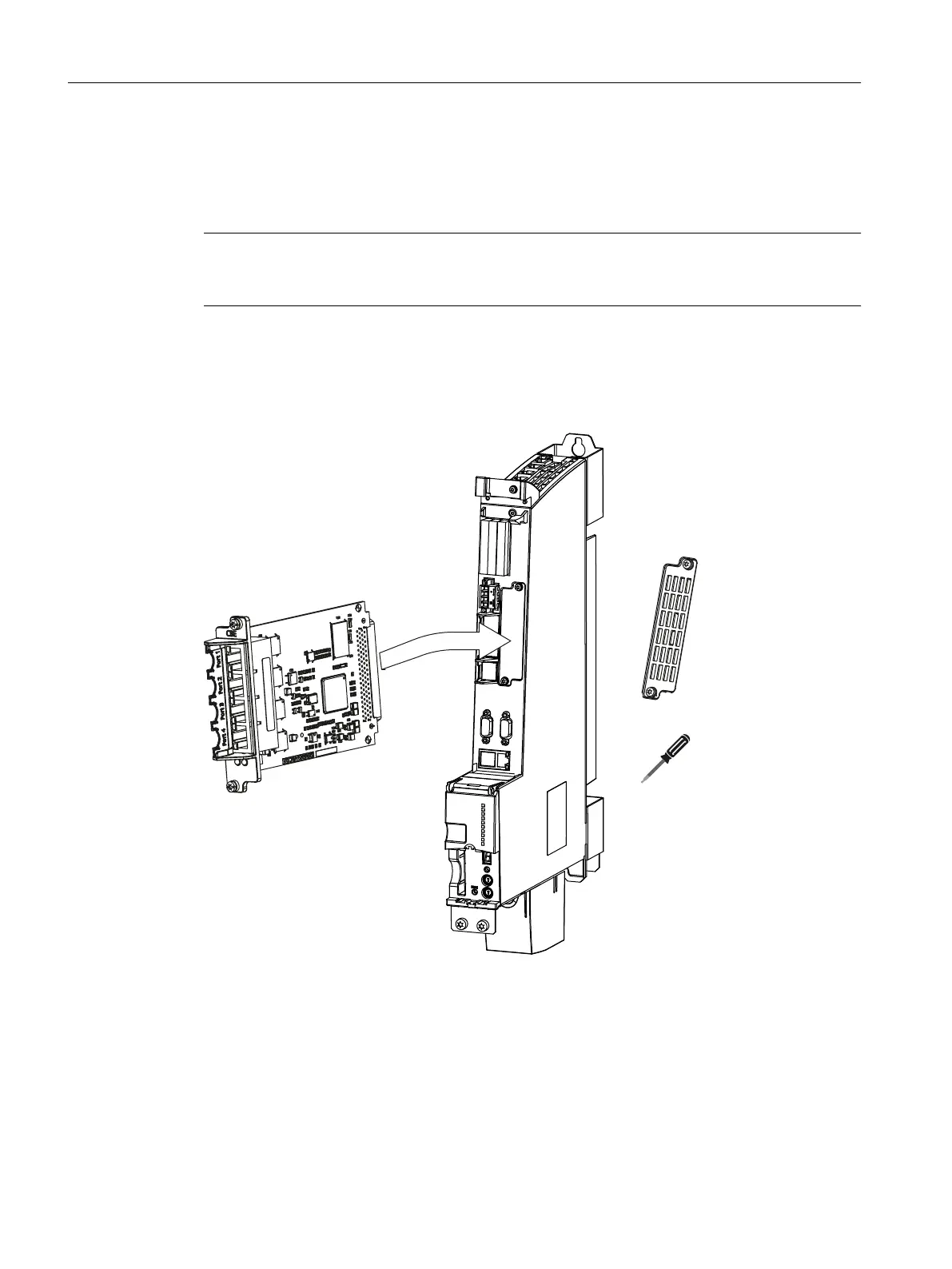

Figure 3-7 Installing the CBE30-2
