Engineering system / HMI to PROFINET

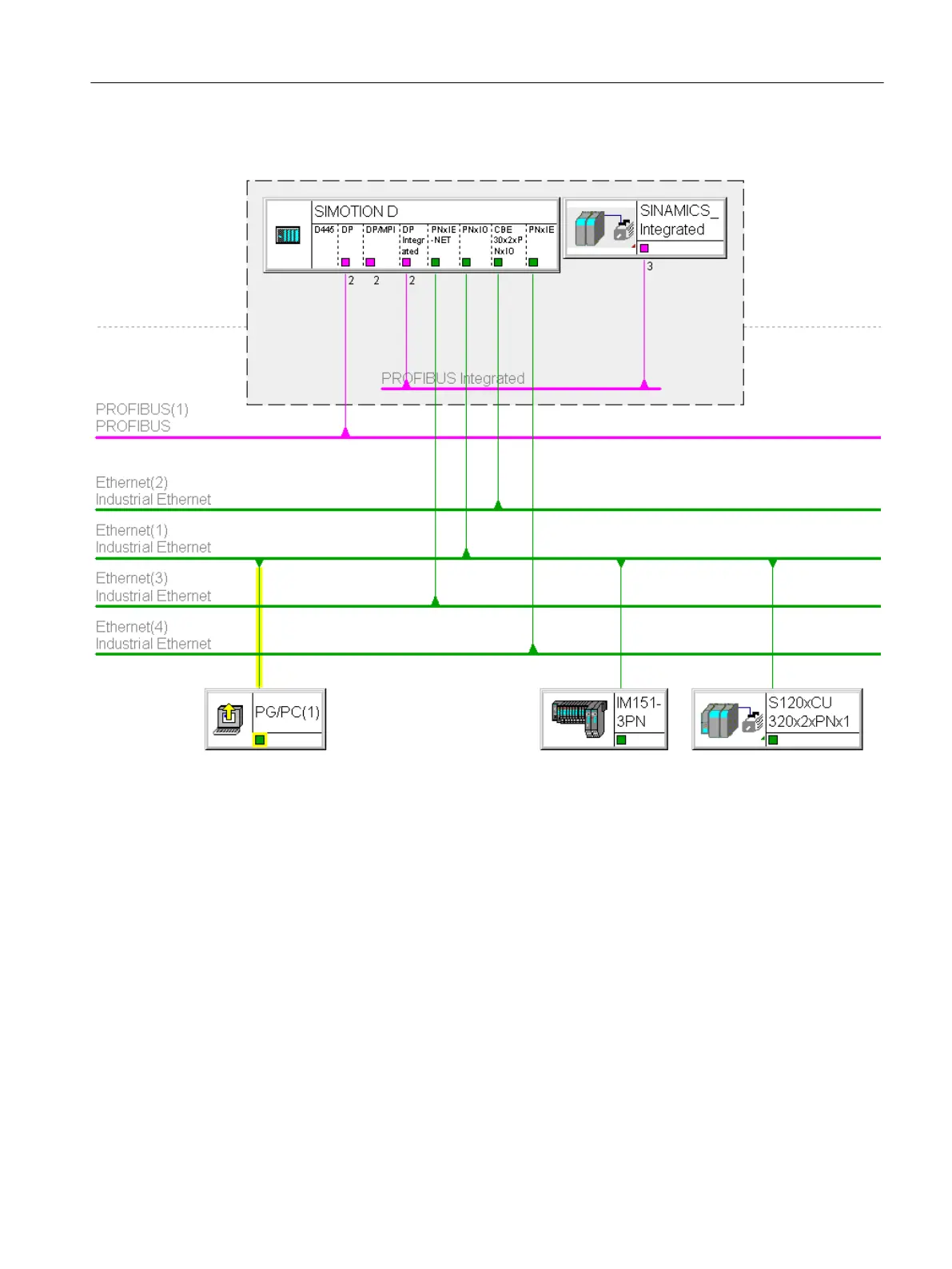

Figure 4-19 Example of PG/PC to PROFINET interface (PNxIO, X150)
● S7 routing to the (master) PROFIBUS interfaces (only if configured)
●
S7 routing to the PROFIBUS Integrated
● S7 routing to the Ethernet interfaces PN/IE (X127 P1) and PN/IE-NET (X130 P1) (for
D4x5-2 DP also to PN/IE-OP (X120 P1))
● S7 routing to the second PROFINET IO interface with CBE30-2 (X1400, P1-P4)
● Access to the components on the same subnet via the switch functionality of the PROFINET
IO interface
Connecting
4.10 Routing
SIMOTION D4x5-2
Commissioning and Hardware Installation Manual, 03/2018, A5E33441636B 91
