Commissioning (software)
6.2 Performing the configuration for the D4x5-2 offline
SIMOTION D4x5-2
176 Commissioning and Hardware Installation Manual, 02/2012

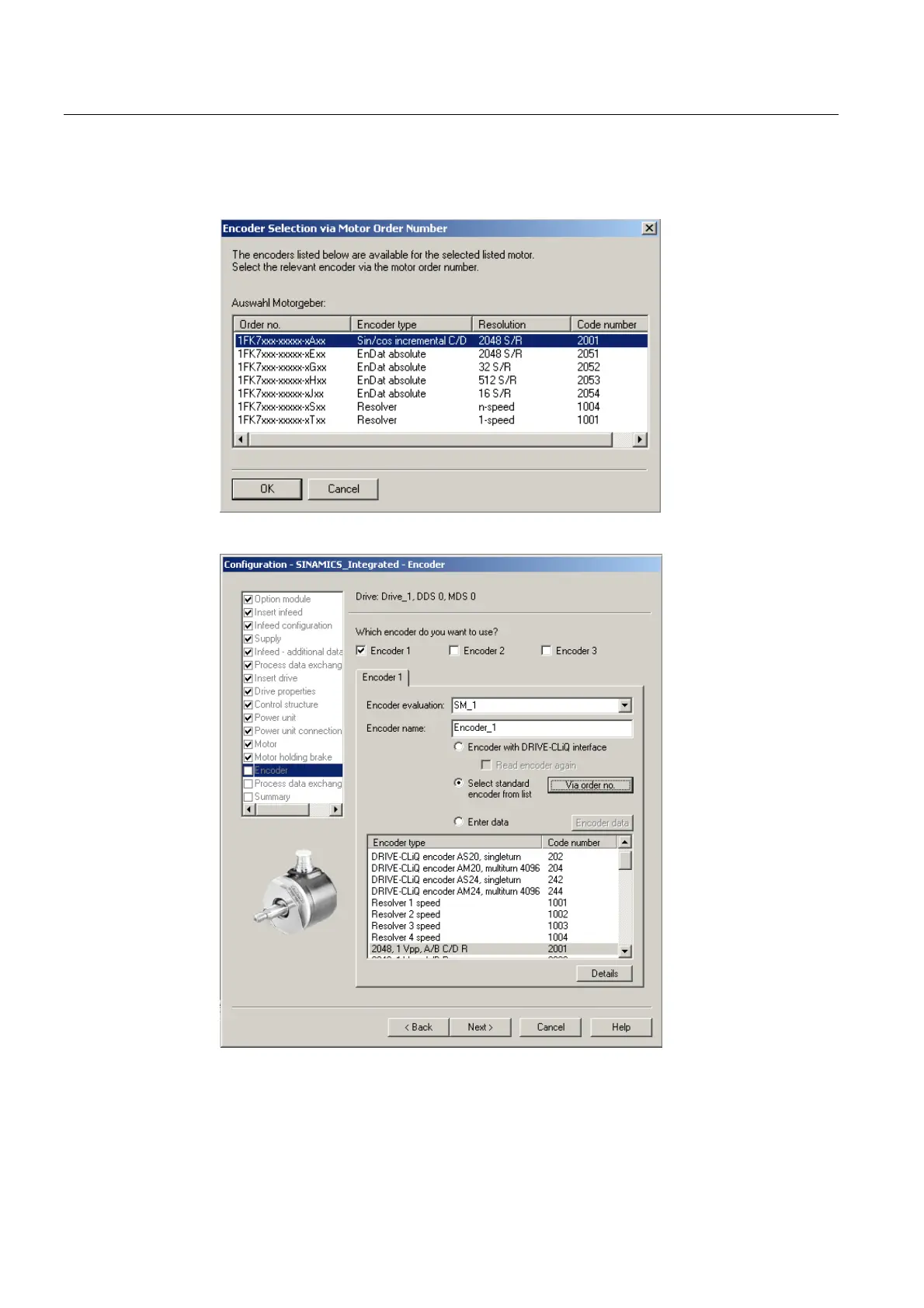

14. If you are using a motor that is not equipped with a DRIVE-CLiQ interface, select the
encoder order number in the "Encoder Selection via Motor Order Number" dialog box.
Figure 6-15 Selecting a motor encoder (1)
Figure 6-16 Selecting a motor encoder (2)
