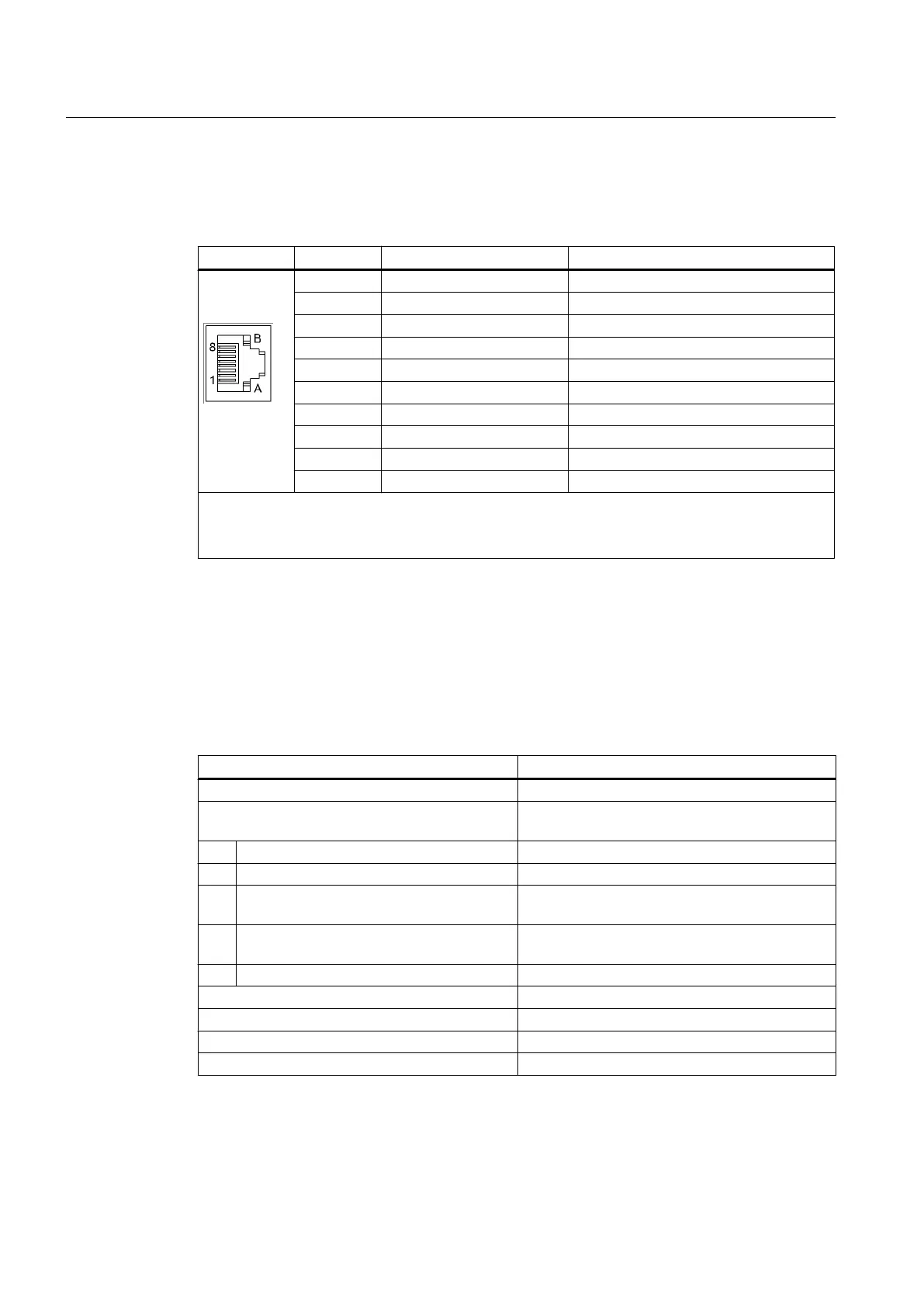

7.5.2.3 DRIVE-CLiQ interface
Table 7-21
DRIVE-CLiQ interface X100 – X103
Pin Signal name Technical specifications
1 TXP Transmit data +
2 TXN Transmit data -
3 RXP Receive data +
4 Reserved, do not use
5 Reserved, do not use
6 RXN Receive data -
7 Reserved, do not use
8 Reserved, do not use
A + (24 V) Power supply
B M (0 V) Electronic ground
Dust protection filler plugs for sealing unused DRIVE‑CLiQ ports:
●
3 filler plugs contained in the CX32‑2 scope of delivery
● Filler plugs (50 pcs) order number: 6SL3066-4CA00-0AA0
7.5.2.4 Digital I/Os (X122)
Interface characteristics
Sensors
and actuators can be connected to the X122 connector via digital inputs and outputs.
Table 7-22 X122 wiring
Features Type
Connector type 14-way spring-loaded terminal
Connectable cable types and conductor cross-
sections
Rigid 0.2 mm² … 1.5 mm²
Flexible 0.2 mm² … 1.5 mm²
Flexible, with wire-end ferrule without plastic
sleeve
0.25 mm² … 1.5 mm²
Flexible, with wire-end ferrule with plastic
sleeve
0.25 mm² … 0.75 mm²
AWG / kcmil 24 … 16
Stripped length 10 mm
Tool Screwdriver 0.4 x 2.0 mm
Max. cable length 30 m
Max. current carrying capacity (ground) 6 A
Supplementary system components
7.5 CX32-2 controller extension
SIMOTION D4x5-2
120 Manual, 04/2014
