Connecting-up 06.2006
6SE7087-6KP50 Siemens AG
7-4 Operating Instructions SIMOVERT MASTERDRIVES
SIEMENS
A
S1
BX101
CX103
P
PMU
DC24 V supply,
RS485 (USS) X100
Bus terminating
resistor (USS) S1
Terminal strip X101
RS232/RS485 (USS) X103
Motor connection X2
PE3
−
+
Slot A
Slot B
Slot C
DC link bus module X3
Safe STOP
(option) X533

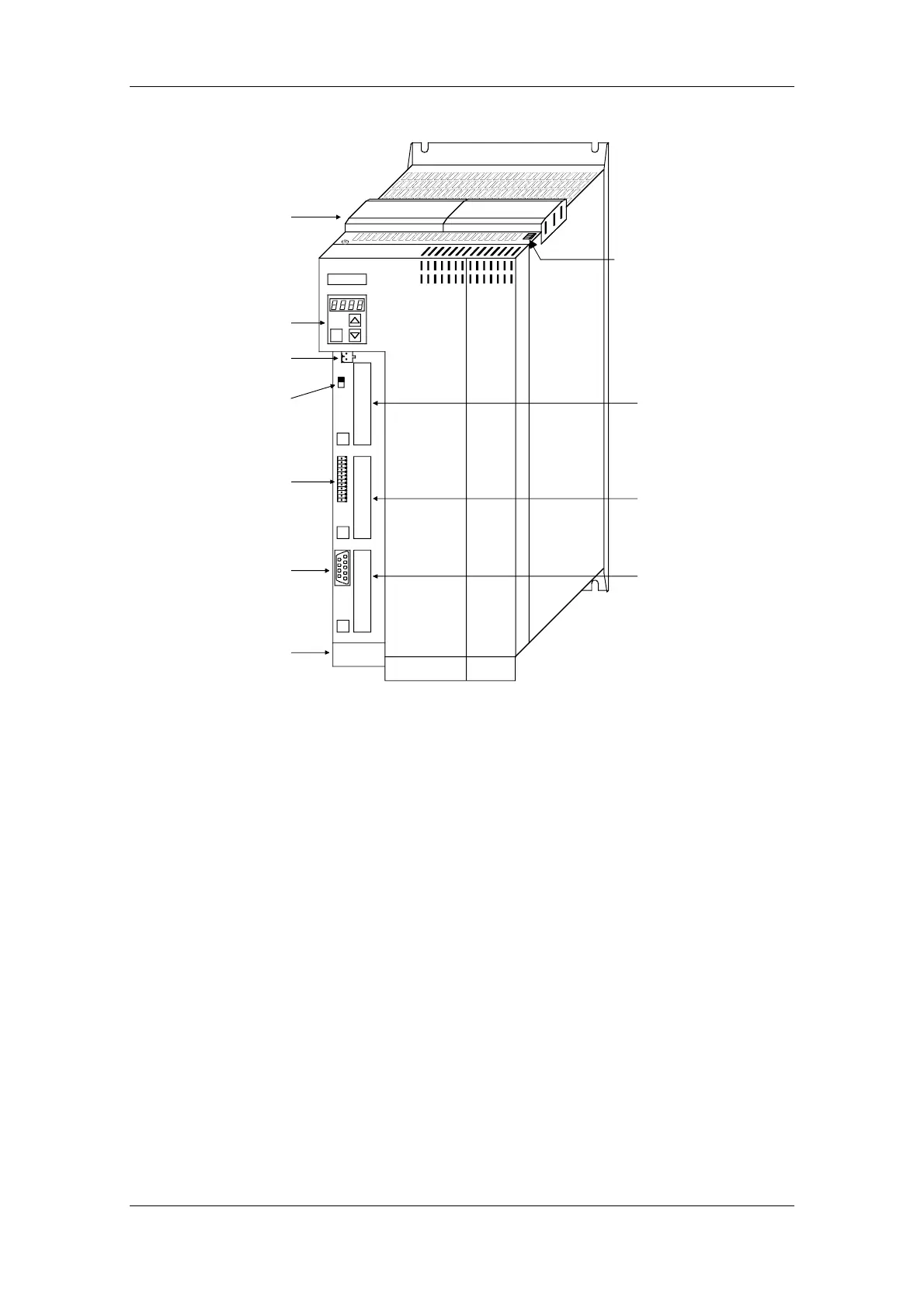

Fig. 7-3 Connection overview of units 180 mm wide
