4 Operating Instructions SIMOVERT MASTERDRIVES
Plugging into the units provided
USS-Bus
100. 0A 380 .0V 00
#-30 0.000H z
*-30 0.000
Hz
Betr ieb
Jog 7 8 9
P
Reset
+/-0
456
123
O
I
Fault
Run
SIEMENS SIEMENS
X100
Run
Failure
Chopper
activ e
SIEMENS
A
S1
BX101
CX103
CM Rect.Unit Inv.
USS bus
on X100
OP1S mounted
on rectifier unit
SIEMENS
A
S1
BX101
CX103
Inv.
SIEMENS
A
S1
BX101
CX103
SIEMENS
A
S1
BX101
CX103
Inv. Inv.

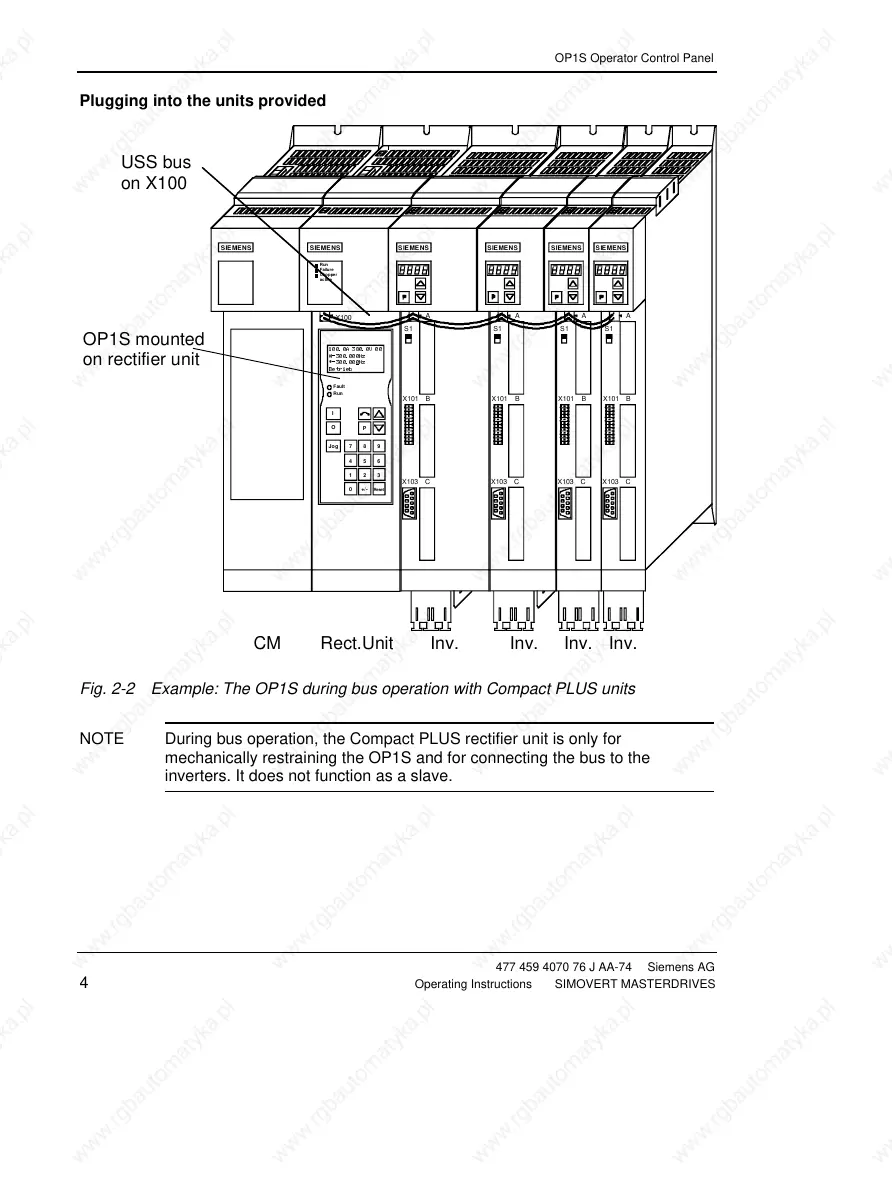

Fig. 2-2 Example: The OP1S during bus operation with Compact PLUS units
NOTE During bus operation, the Compact PLUS rectifier unit is only for
mechanically restraining the OP1S and for connecting the bus to the
inverters. It does not function as a slave.
