Commissioning
4.2 Commissioning with BOP-2 operator panel
SINAMICS G120C converter
36 Getting Started, 04/2014, FW V4.7, A5E34264105B AA
4.2.3
Additional settings
4.2.3.1
Operating the inverter with the BOP-2
1)
Status display once the power supply for the inverter has been switched on.

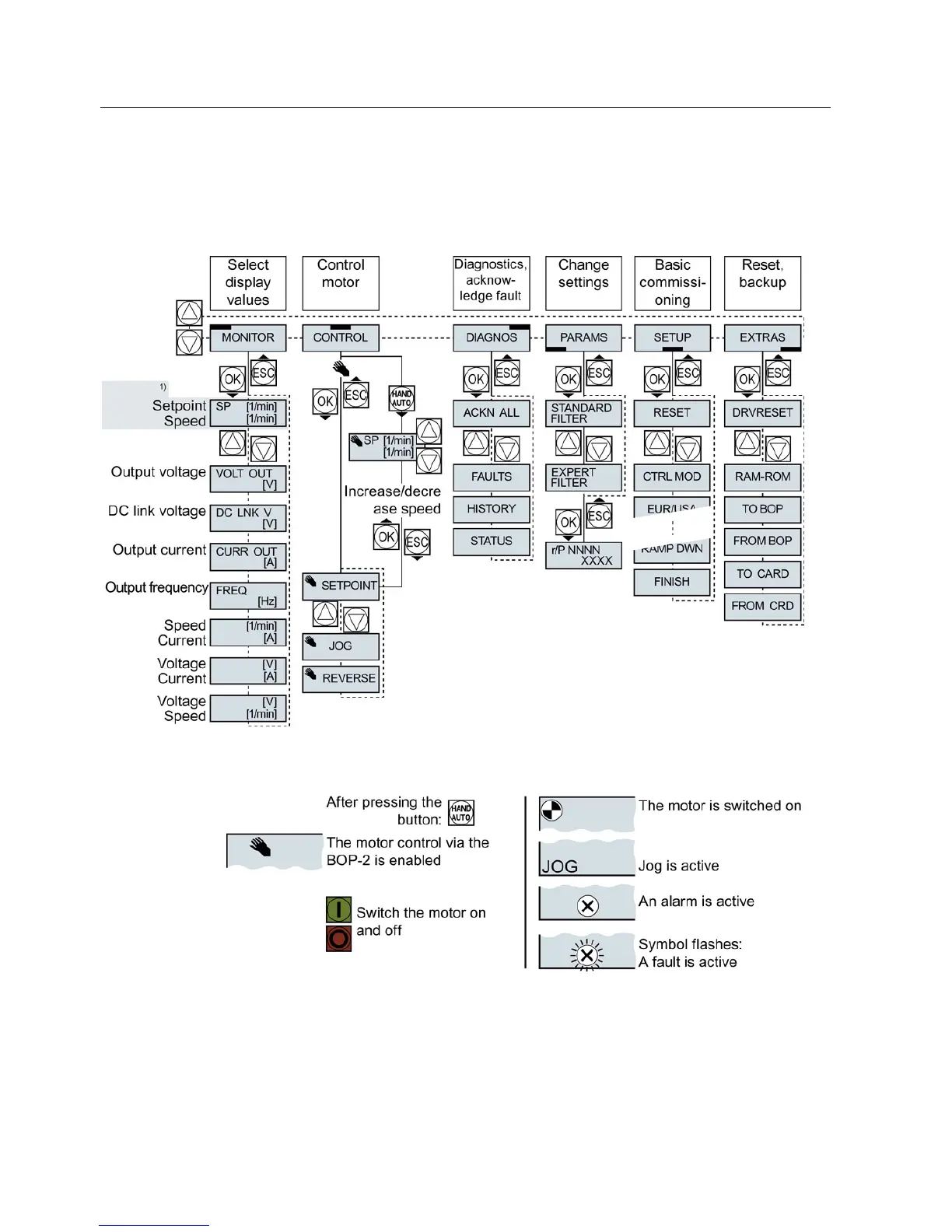

Figure 4-1 Menu of the BOP-2
Figure 4-2 Other keys and symbols of the BOP-2
