S5-95U, SINEC L2 System Description
SINEC L2FO SF Repeater Adapter for L2 Repeater
The SINEC L2FO SF repeater adapter converts electrical signals of the network into optical signals
for the L2FO network.
Design of the SINEC L2FO SF repeater adapter (see also Figure 1-23):
• You can plug the SF repeater adapter directly onto the 15-pin D-type female connector of an L2
repeater
• Connection only to a glass fiber optic cable

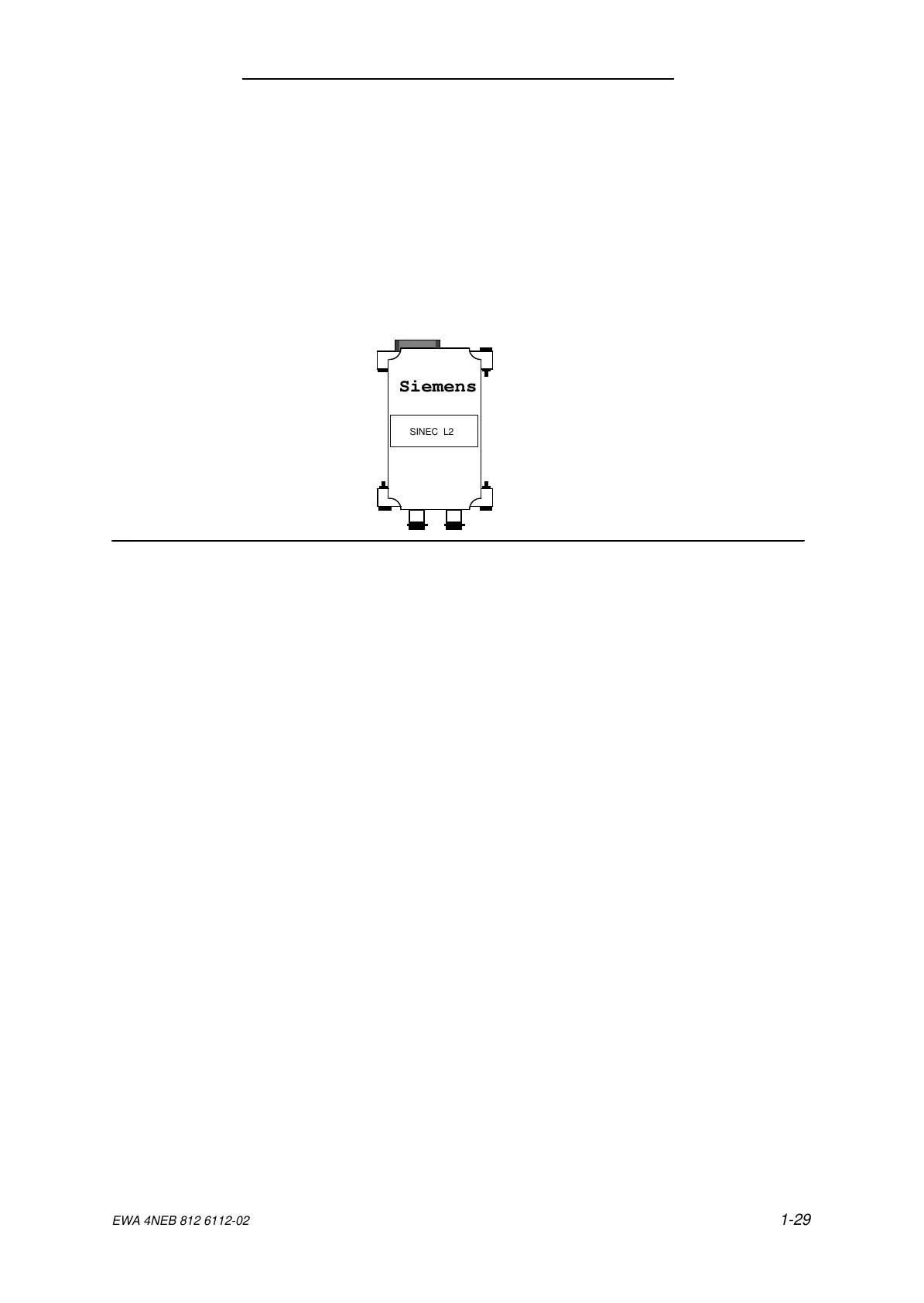

Figure 1-23. SINEC L2FO SF Repeater Adapter for L2 Repeater
