3
08/2005 Machining the Workpiece
3.11 Simulatin
g
machinin
g
3
Siemens AG, 2005. All rights reserved
SINUMERIK 840D sl Operation/Programming ShopTurn (BAT) – 08/2005 Edition 3-117

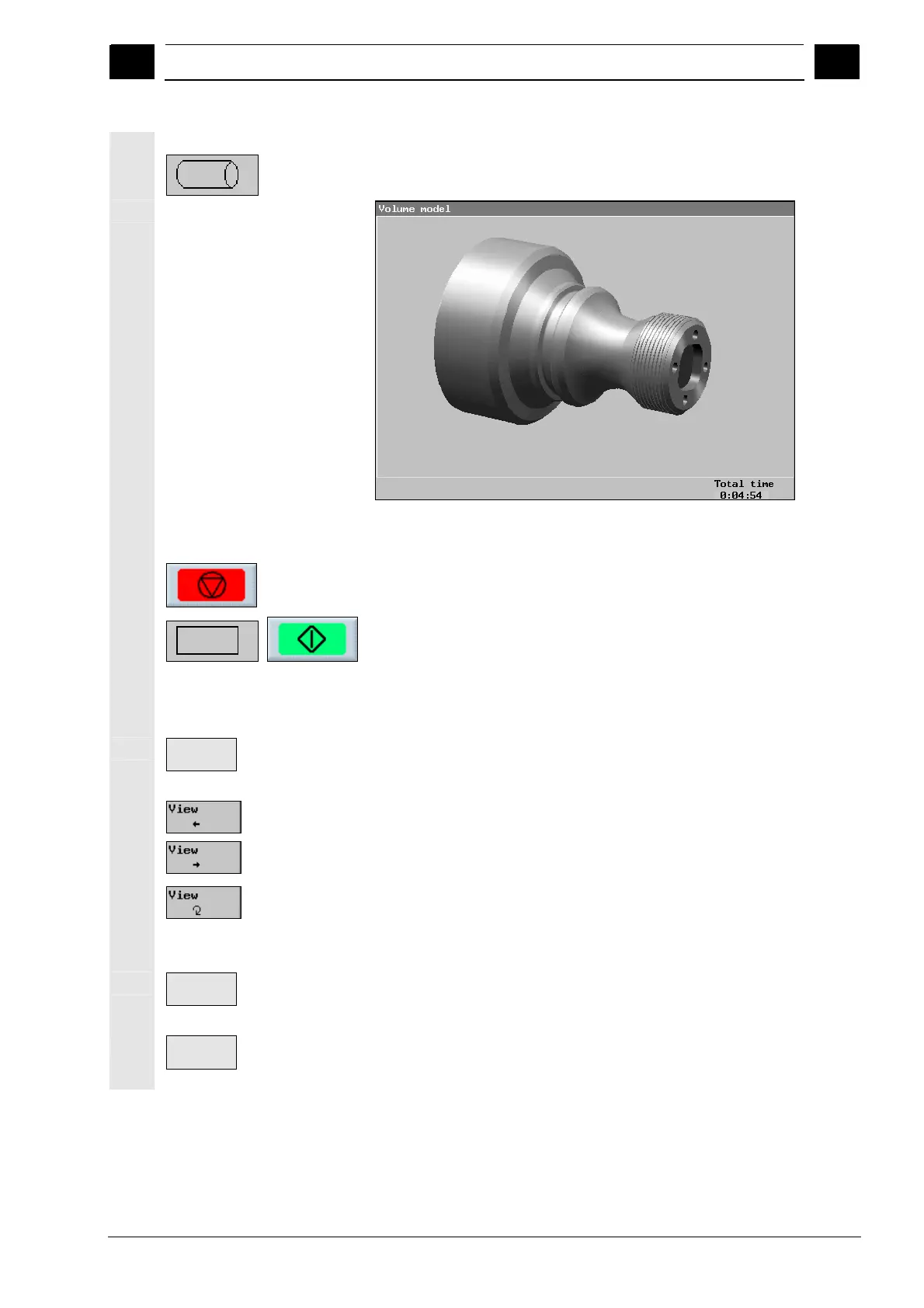

Volume model
Press the "Volume model” softkey.
Volume model
Displaying the volume model
Press the "Stop" softkey if you would like to display the volume
model at the current point in the machining.
Press the "Side view" and "Start" softkeys if you would like to
continue the simulation.
View: Changing
Details
>
Press the "Details" softkey if you want to change the view.
-and-
or
Press the "View " or "View " softkey to rotate the workpiece
about the X-axis.
-or-
Press the "View 3" softkey to rotate the workpiece about the Z-
axis.
-or-
Cut
Press the "Cut" softkey to cut up the workpiece.
-and-
Cut
Press the "Cut" softkey again if the volume model is to be
displayed in full again.
