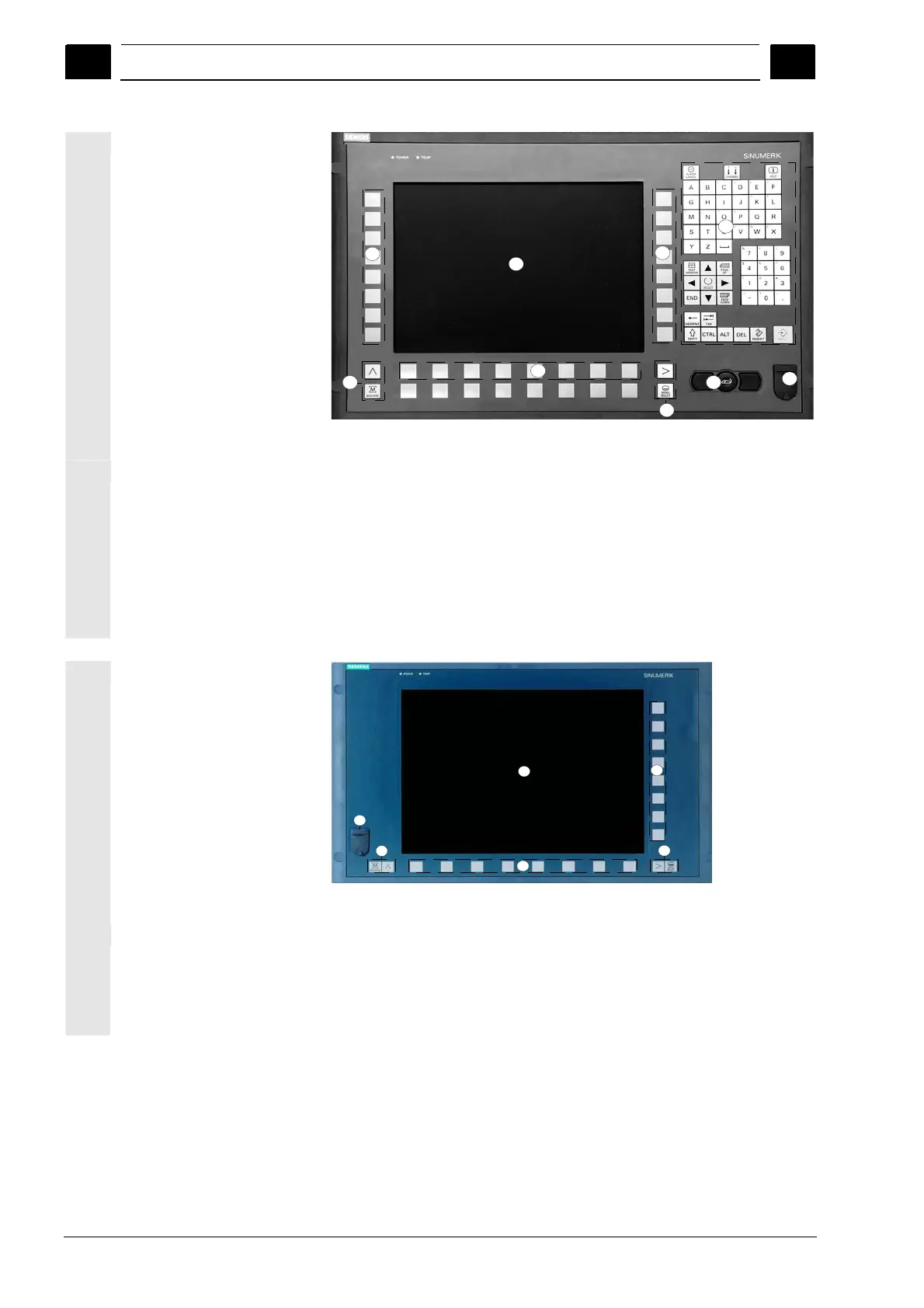

OP 012 operator panel
1
7A2
A3
A4
A2
A4
6
A5
OP 012 operator panel
1 12" screen
2 Screen keys
3 Horizontal softkey bar
4 Vertical softkey bar
5 Alphanumeric keypad
Correction/cursor pad with control keys and input key
6 USB interface
7 Mouse
Operator panel OP 015
1
5
A2
A3
A4
A2
Operator panel OP 015
1 15" screen
2 Screen keys
3 Horizontal softkey bar
4 Vertical softkey bar
5 USB interface
